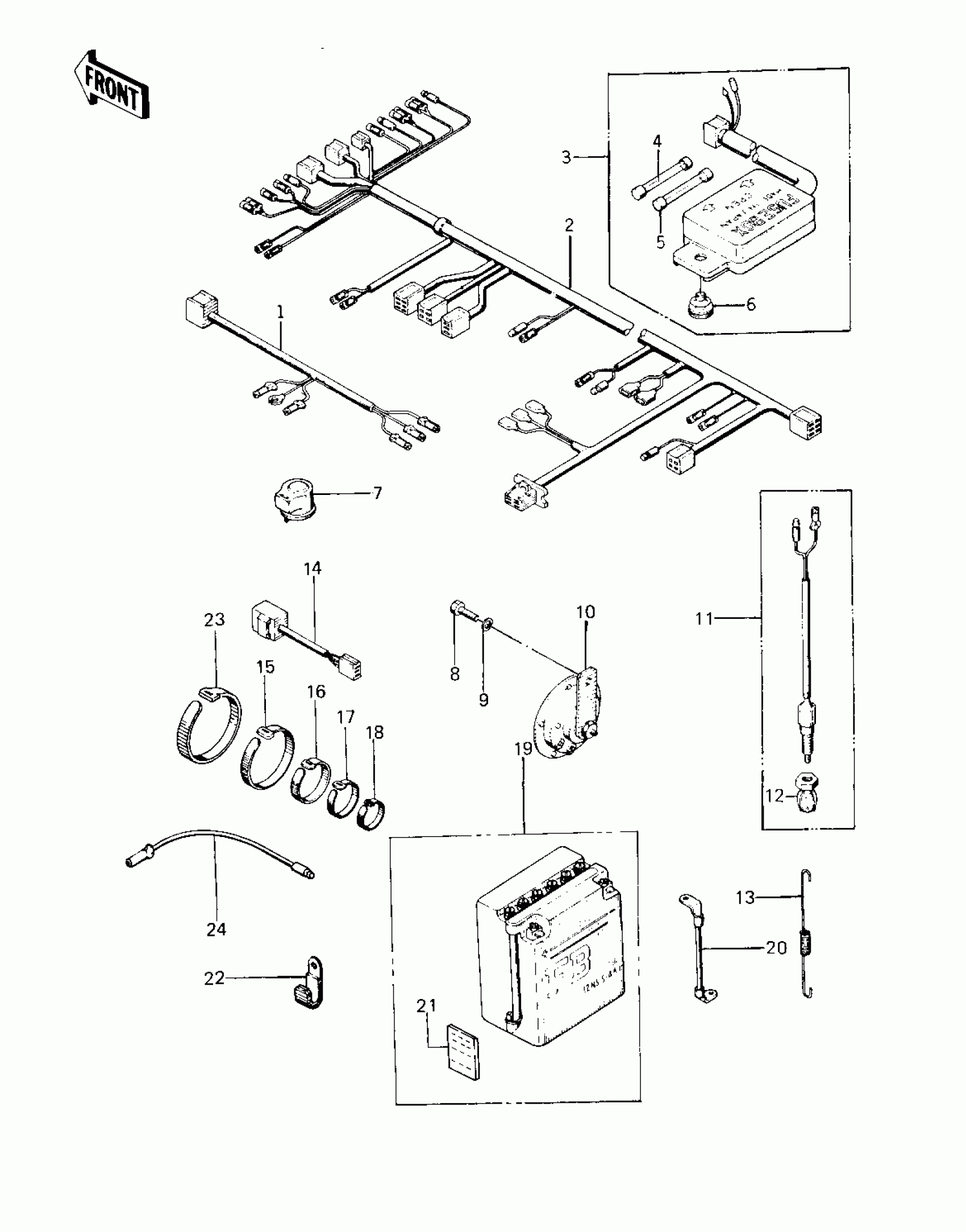

Kawasaki KZ400-A2 CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description

Price

1

WIRING HARNESS REAR

26002-049

Unavailable

2

WIRING HARNESS,MAIN

26001-136

Unavailable

3

FUSE-ASSY

26004-035

Unavailable

4

FUSE,20A,L=25

26006-005

Unavailable

5

FUSE,10A,L=25

26006-003

Unavailable

6

DAMPER,FUSE

92075-279

Unavailable

7

RELAY-ASSY,TURN SIGNAL

27002-011

Unavailable

8

BOLT,8X20

115G0820

Unavailable

9

WASHER SPRING 8MM

461F0800

Unavailable

10

HORN

27003-1006

Unavailable

10

HORN

27003-1006

Unavailable

11

SWITCH,BRAKE LAMP

27010-025

Unavailable

12

NUT,BRAKE LAMP SWITCH

27037-001

Unavailable

13

SPRING,BRAKE LIGHT SW

27011-015

Unavailable

14

SWITCH,BK LIGHT IND

28019-002

Unavailable

15

BAND,L=218

92072-032

Unavailable

16

BAND,L=149

92072-031

Unavailable

17

BAND,L=123

92072-030

Unavailable

18

BAND,L=95

92072-067

Unavailable

19

YUA BAT 12N12A-4A-1

26012-045

Unavailable

20

WIRE,LEAD

26010-044

Unavailable

21

LABEL-WARNING,BATTERY

56040-1036

Unavailable

22

CLAMP,WIRING HARNESS

21126-008

Unavailable

23

BAND-RUBBER

92072-035

Unavailable

24

WIRE,LEAD,REAR

26011-097

Unavailable
