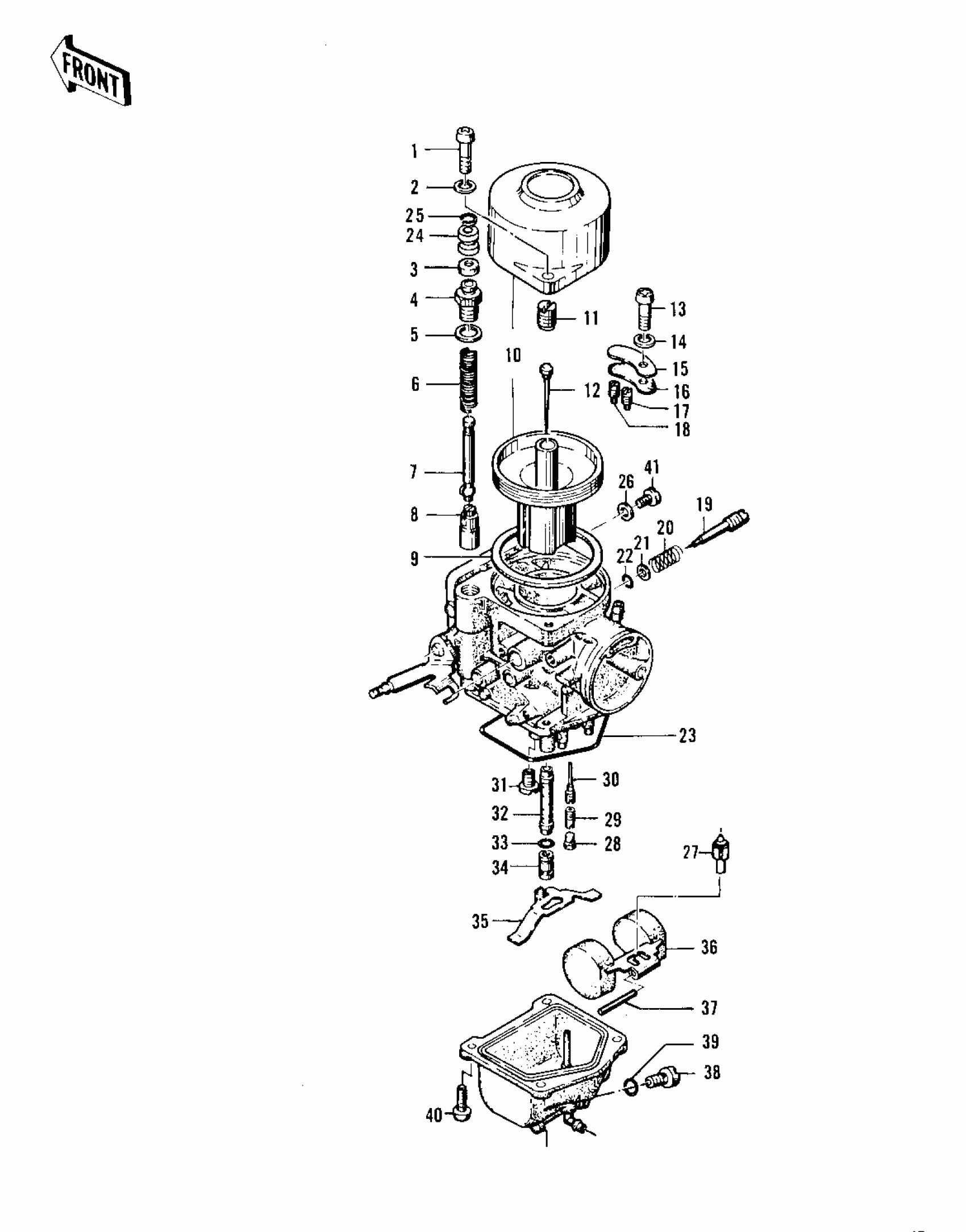

Kawasaki KZ400-A2 CARBURETOR PARTS (KZ400-A1) Diagram
#
1
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
2
WASHER SPRING 5MM
461F0500
Unavailable
3
CAP,STARTER PLUNGER
16036-014
Unavailable
4
CAP,STARTER PLUNGER
16012-018
Unavailable
5
WASHER,PLAIN
16039-022
Unavailable
6
SPRING,STARTER PLUNG
16013-012
Unavailable
6
SPRING,STARTER PLUNGR
16013-013
Unavailable
7
SHAFT,STARTER PLUNGR
16041-007
Unavailable
7
SHAFT,STARTER PLUNGER
16041-018
Unavailable
8
PLUNGER,STARTER
16016-015
Unavailable
9
GASKET,VACUUM PISTON
16029-008
Unavailable
10
VACUUM PISTN&CAB CAP
16059-003
Unavailable
11
HOLDER,JET NEEDLE
16018-003
Unavailable
12
JET NEEDLE,303011
16009-069
Unavailable
13
SCREW PAN HEAD 4X6
220B0406
Unavailable
14
WASHER SPRING 4MM
461F0400
Unavailable
15
PLATE,AIR JET
16055-005
Unavailable
16
GASKET,AIR JET PLATE
16029-009
Unavailable
17
AIR JET,#40
16035-007
Unavailable
18
AIR JET,#90
16035-005
Unavailable
18
AIR JET,#40
16035-007
Unavailable
19
SCREW,PILOT ADJUST
16014-013
Unavailable
20
SPRING,PILOT ADJ SCR
16015-007
Unavailable
21
WASHER,PLAIN,3.6MM
16039-021
Unavailable
22
"O" RING,PILOT SCREW
16038-011
Unavailable
23
O RING,FLOAT CHAMBER
16019-024
Unavailable
24
COLLAR
16073-015
Unavailable
25
CIRCLIP
16008-018
Unavailable
26
WASHER,PLAIN,6MM
16039-028
Unavailable
27
VALVE-FLOAT
16030-1007
Unavailable
28
CAP,PILOT JET RUBBER
16036-015
Unavailable
29
PILOT JET,#35
92064-043
Unavailable
30
SLOW JET,#35
16158-002
Unavailable
31
STARTER JET,#68
16157-003
Unavailable
32
NEEDLE JET
16017-088
Unavailable
33
"O" RING MAIN JET
16038-013
Unavailable
34
MAIN JET, #130
92063-130
Unavailable
34
MAIN JET,#115
92063-136
Unavailable
34
MAIN JET,#120
92063-129
Unavailable
34
MAIN JET,#125
92063-137
Unavailable
34
MAIN JET,#135
92063-128
Unavailable
34
MAIN JET,#140
92063-138
Unavailable
34
MAIN JET, #150
92063-131
Unavailable
34
MAIN JET, #160
92063-132
Unavailable
35
PLATE,MAIN JET
16055-007
Unavailable
36
FLOAT
16031-027
Unavailable
37
FLOAT PIN
16032-007
Unavailable
38
SCREW,DRAIN
16033-018
Unavailable
39
"O" RING,DRAIN SCREW
92055-1003
Unavailable
40
SCREW PAN HEAD 4X10
220B0410
Unavailable
41
SCREW,PLUG
16033-019
Unavailable
