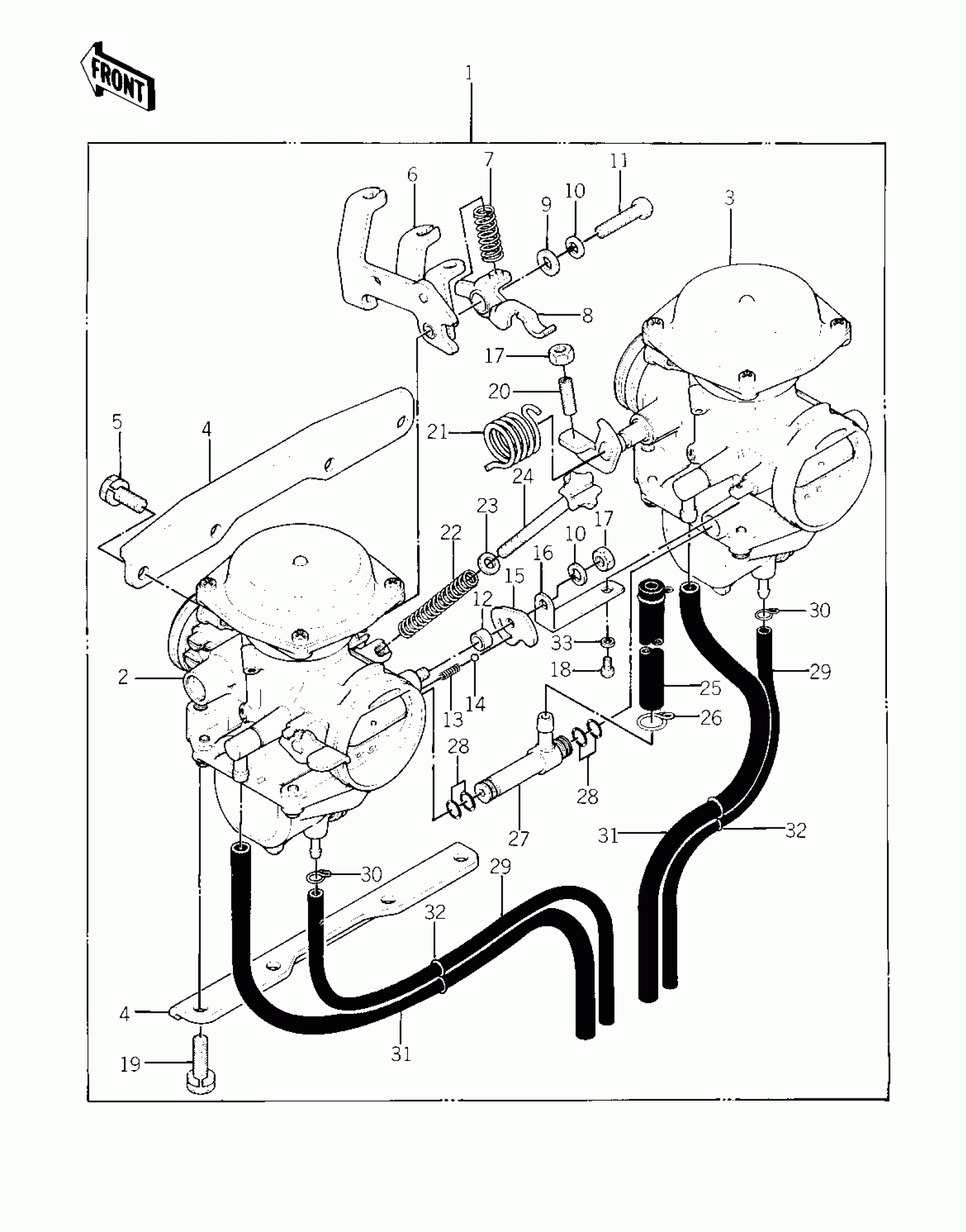

Kawasaki KZ400-A2 CARBURETOR ASSY (KZ400-A2) Diagram
#
Description
Price
1
CARBURETOR ASSY
16001-300
Unavailable
2
CARBURETOR,L.H.
16001-1006
Unavailable
3
CARBURETOR,R.H.
16001-1007
Unavailable
4
PLATE,STAY
16065-1001
Unavailable
5
SCREW,6X16
92009-1129
Unavailable
6
BRACKET,THR.CBL
11034-1008
Unavailable
7
SPRING
92081-1003
Unavailable
8
ROCKER ARM
11034-1009
Unavailable
9
WASHER,PLAIN
16039-027
Unavailable
10
WASHER SPRING 5MM
461F0500
Unavailable
11
SCREW-PAN-CROS,5X25
220B0525
Unavailable
12
COLLAR,CHOKE LEVER
16073-1001
Unavailable
13
SPRING
92081-1004
Unavailable
14
BALL,STEEL,1/8"
600A0400
Unavailable
15
CAM,CHOKE LINK
13169-1007
Unavailable
16
BRACKET,CHOKE LEVER
11034-1010
Unavailable
17
NUT-HEX
311B0500
Unavailable
18
SCREW-PAN-CROS,3X6
220B0306
Unavailable
19
BOLT,6X22
92009-1006
Unavailable
20
SCREW,SLOTTED
16021-1002
Unavailable
21
SPRING
92081-1006
Unavailable
22
SPRING,THR.STOP SCREW
92081-1005
Unavailable
23
WASHER PLAIN 5MM
410B0500
Unavailable
24
SCREW,THROTTLE STOP
16021-1001
Unavailable
25
TUBE,5.3X10.5X200
92059-1001
Unavailable
26
CLAMP,FUEL HOSE
92037-1040
Unavailable
27
NIPPLE,FUEL HOSE
16046-013
Unavailable
28
RING-O
92055-1004
Unavailable
29
TUBE,3.5X6.5X330
92059-111
Unavailable
30
CLAMP,TUBE
92037-1142
Unavailable
31
TUBE,4.5X8X380
92059-110
Unavailable
32
CLAMP,OVERFLOW HOSE
16044-002
Unavailable
33
WASHER SPRING 3MM
461F0300
Unavailable
