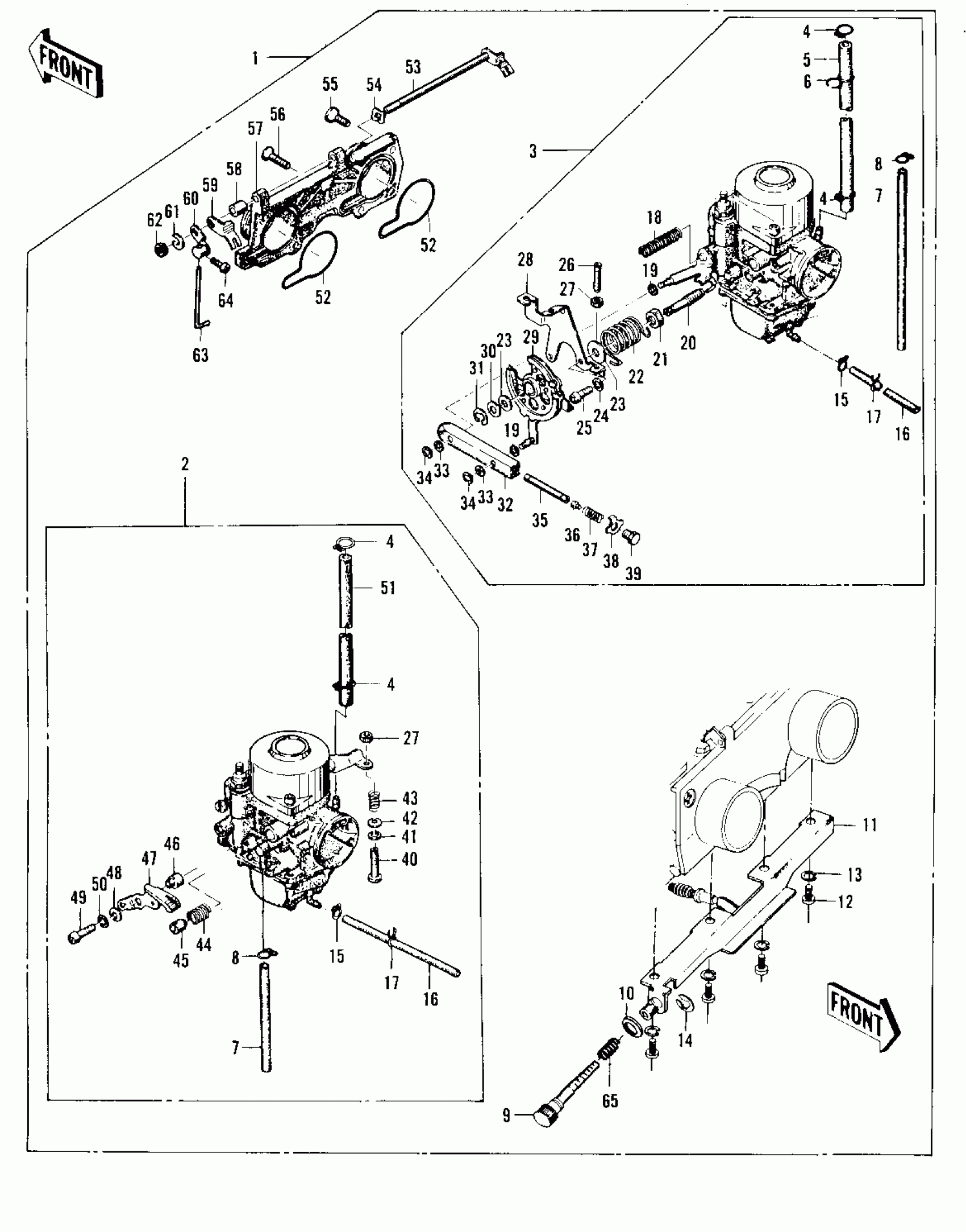

Kawasaki KZ400-A2 CARBURETOR ASSY (KZ400-A1) Diagram
#
1
CARBURETOR ASSY
16001-275
Unavailable
1
CARBURETOR ASSY
16001-275
Unavailable
2
CARBURETOR,R.H
16001-282
Unavailable
2
CARBURETOR,R.H
16001-282
Unavailable
3
CARBURETOR,L.H
16001-283
Unavailable
3
CARBURETOR,L.H
16001-283
Unavailable
4
CLAMP,FUEL HOSE
92037-1040
Unavailable
5
HOSE,FUEL
92059-112
Unavailable
6
CLAMP,FUEL HOSE
16044-005
Unavailable
7
TUBE,4.5X8X380
92059-110
Unavailable
8
CLAMP,HOSE
16044-004
Unavailable
9
SCREW,THROTTLE STOP
16021-024
Unavailable
10
WASHER,PLAIN,7MM
16039-029
Unavailable
11
STAY PLATE
16065-044
Unavailable
12
SCREW PAN HEAD 4X16
220B0416
Unavailable
13
WASHER SPRING 4MM
461F0400
Unavailable
14
CIRCLIP-TYPE-E,6MM
482J6000
Unavailable
15
CLAMP,TUBE
92037-1142
Unavailable
16
TUBE,3.5X6.5X330
92059-111
Unavailable
17
CLAMP,OVERFLOW HOSE
16044-002
Unavailable
18
SPRING,THR CABLE PLY
16040-013
Unavailable
19
WASHER,WAVE
16034-009
Unavailable
20
SCREW,BALANCE ADJUST
16041-008
Unavailable
21
NUT,5MM
16003-010
Unavailable
22
SPRING,ADJUST
16040-011
Unavailable
23
WASHER,PLAIN
16039-023
Unavailable
24
WASHER SPRING 5MM
461F0500
Unavailable
25
SCREW PAN HEAD 5X10
220B0510
Unavailable
26
SCREW,SLOTTED
16046-006
Unavailable
27
NUT,5MM
16003-011
Unavailable
28
HOLDER,THR CABL PULY
16070-002
Unavailable
29
PULLEY,THROTTLE CABL
16074-003
Unavailable
30
WASHER,PLAIN,8MM
16039-024
Unavailable
31
CIRCLIP-TYPE-E,6MM
482J6000
Unavailable
32
LINK,ADJUSTER
16071-002
Unavailable
33
WASHER,PLAIN,3MM
16039-030
Unavailable
34
CIRCLIP
16008-013
Unavailable
35
ROD CABLE ADJUSTING
16002-015
Unavailable
36
PLUG,CABLE ADJST ROD
16042-007
Unavailable
37
SPRING,CABLE ADJUST
16040-012
Unavailable
38
WASHER,LOCK,7MM
16054-006
Unavailable
39
BOLT,HEX HEAD,7MM
16067-007
Unavailable
40
SCREW,THROTTLE STOP
16021-030
Unavailable
40
SCREW,THROTTLE STOP
16021-031
Unavailable
41
WASHER,PLAIN,5MM
16039-025
Unavailable
41
WASHER,PLAIN
16039-045
Unavailable
42
WASHER,PLAIN,5MM
16039-026
Unavailable
42
WASHER,PLAIN
16039-027
Unavailable
43
SPRING,THR STOP SCREW
16022-012
Unavailable
43
SPRING,THR STOP SCREW
16022-014
Unavailable
44
SPRING,CHOKE LEVER
16040-014
Unavailable
45
CONTACT,CHOKE LEVER
16147-002
Unavailable
46
COLLAR,CHOKE LEVER
16073-010
Unavailable
47
LEVER,CHOKE
16063-006
Unavailable
48
WASHER,PLAIN
16039-027
Unavailable
49
SCREW-PAN-CROS
220B0520
Unavailable
50
WASHER SPRING 5MM
461F0500
Unavailable
51
HOSE,FUEL
92059-113
Unavailable
52
"O" RING,CARB MOUNT
16038-015
Unavailable
52
"O" RING,CARB MOUNT
16038-023
Unavailable
53
SHAFT,THROTTLE VALVE
16041-009
Unavailable
53
SHAFT,THROTTLE VALVE
16041-019
Unavailable
54
WASHER,WAVE
16034-010
Unavailable
55
SCREW-PAN-CROS,6X16
220B0616
Unavailable
56
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
57
PLATE,CARB MOUNTING
16070-003
Unavailable
58
COLLAR,CHOKE LEV SHFT
16073-011
Unavailable
59
LEVER,THROTTLE VALVE
16063-007
Unavailable
59
LEVER,THROTTLE VALVE
16063-011
Unavailable
60
LEVER,THROTTLE VALVE
16063-008
Unavailable
61
WASHER,LOCK,6MM
16054-007
Unavailable
62
NUT,6MM
16003-012
Unavailable
63
ROD
16024-013
Unavailable
64
SCREW PAN HEAD 3X5
220B0305A
Unavailable
65
SPRING,THR STOP SCREW
16022-011
Unavailable
