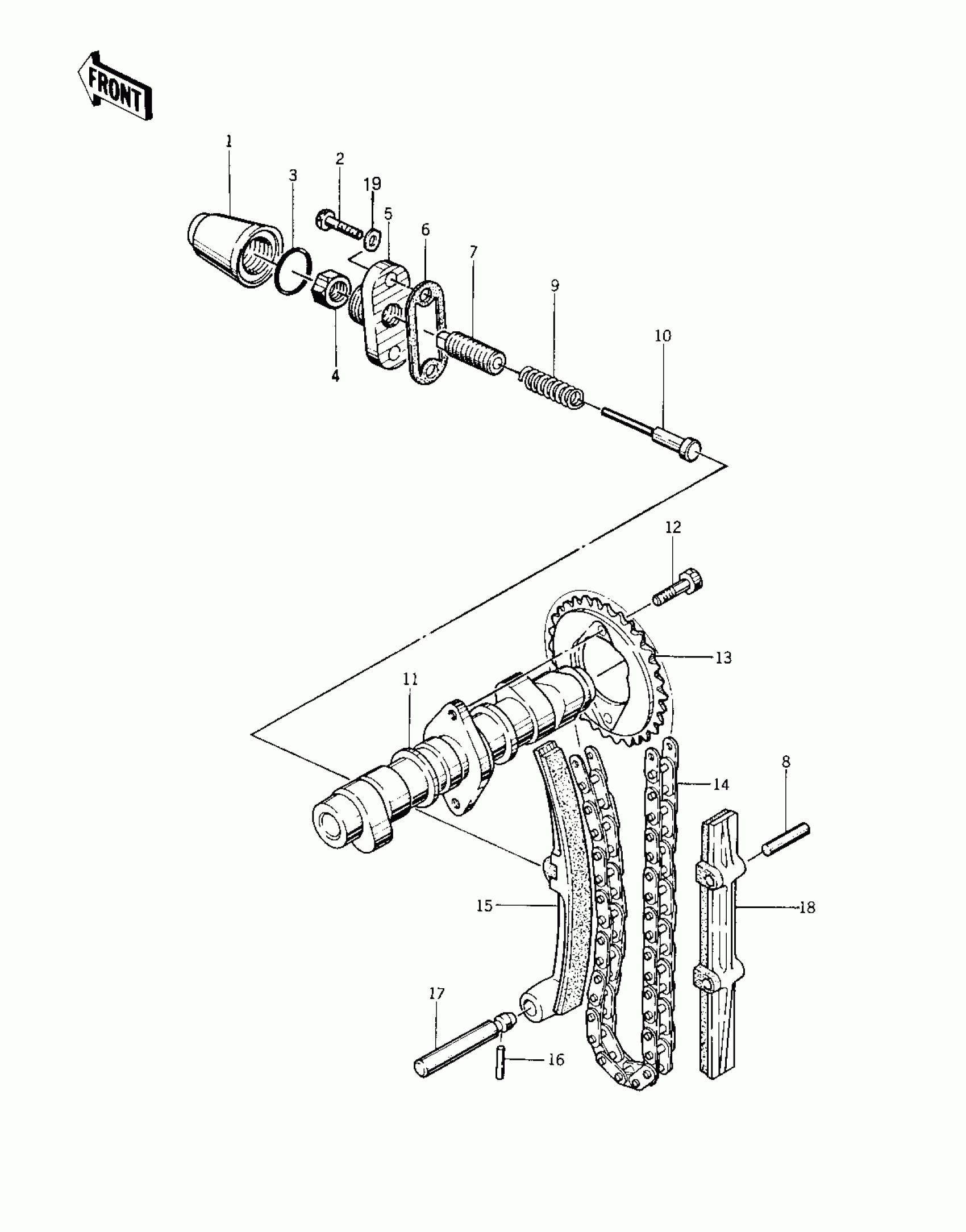

Kawasaki KZ400-A2 CAMSHAFT/CHAIN/TENSIONER Diagram
#
Description
Price
1
CAP, CHAIN TENSIONER
12064-004
Unavailable
2
BOLT-HEX HEAD,6X16
92001-114
Unavailable
3
"O" RING
92055-104
Unavailable
4
NUT,LOCK
92016-054
Unavailable
5
HOLDER,CAM CHIN TENS
12047-004
Unavailable
6
GASKET,CHAIN TENSIONR
11009-1022
Unavailable
7
GUIDE,PUSH ROD
92001-1271
Unavailable
7
GUIDE,PUSH ROD
92001-1271
Unavailable
8
PIN,DOWEL,5X32
551A0532
Unavailable
9
SPRING,CHAIN TENSINR
92081-131
Unavailable
10
ROD,PUSH
12054-002
Unavailable
11
SHAFT,CAM
12044-009
Unavailable
12
BOLT,FLANGED,6X11
92003-208
Unavailable
12
BOLT,FLANGED,6X11
92003-208
Unavailable
13
SPROCKET,CAM
12046-004
Unavailable
14
CHAIN CAM
21070-004
Unavailable
15
GUIDE,CAM CHAIN
12053-002
Unavailable
16
PIN,DOWEL,4X25
551A0425
Unavailable
17
SHAFT,CHAIN GUIDE
12065-001
Unavailable
18
GUIDE,CHAIN,REAR
12053-1042
Unavailable
19
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
