Description

Price

1

BOLT-UPSET

112G0625

$3.62

2

LAMP-TAIL

23025-1033

Unavailable

3

GASKET,TAIL LAMP LENS

11009-1078

$7.55

4

SCREW,PAN HEAD,4X40

220E0440A

$3.38

5

LENS,TAIL LAMP

23026-1003

$56.61

6

BODY-COMP-TAIL LAMP

23027-1020

$94.43

7

BULB,12V 27/8W

92069-059

$8.12

8

BRACKET-TAIL LAMP

23036-1024

$89.12

9

BOLT,TAIL LAMP FITTNG

92001-1322

$7.24

10

WASHER,8.5X20X1.6

92022-1561

$4.31

11

DAMPER

92075-1162

Unavailable

12

DAMPER,TAIL LAMP

92075-1251

$24.55

13

DAMPER,TAIL LAMP

35039-004

$18.41

14

WASHER SPRING 6MM

461F0600

$0.69

15

WASHER,6.5X20X1.6

92022-125

$1.40

16

COLLAR,6.8X10X14.5

92027-156

$5.00

17

DAMPER,FENDER

92075-121

$4.56

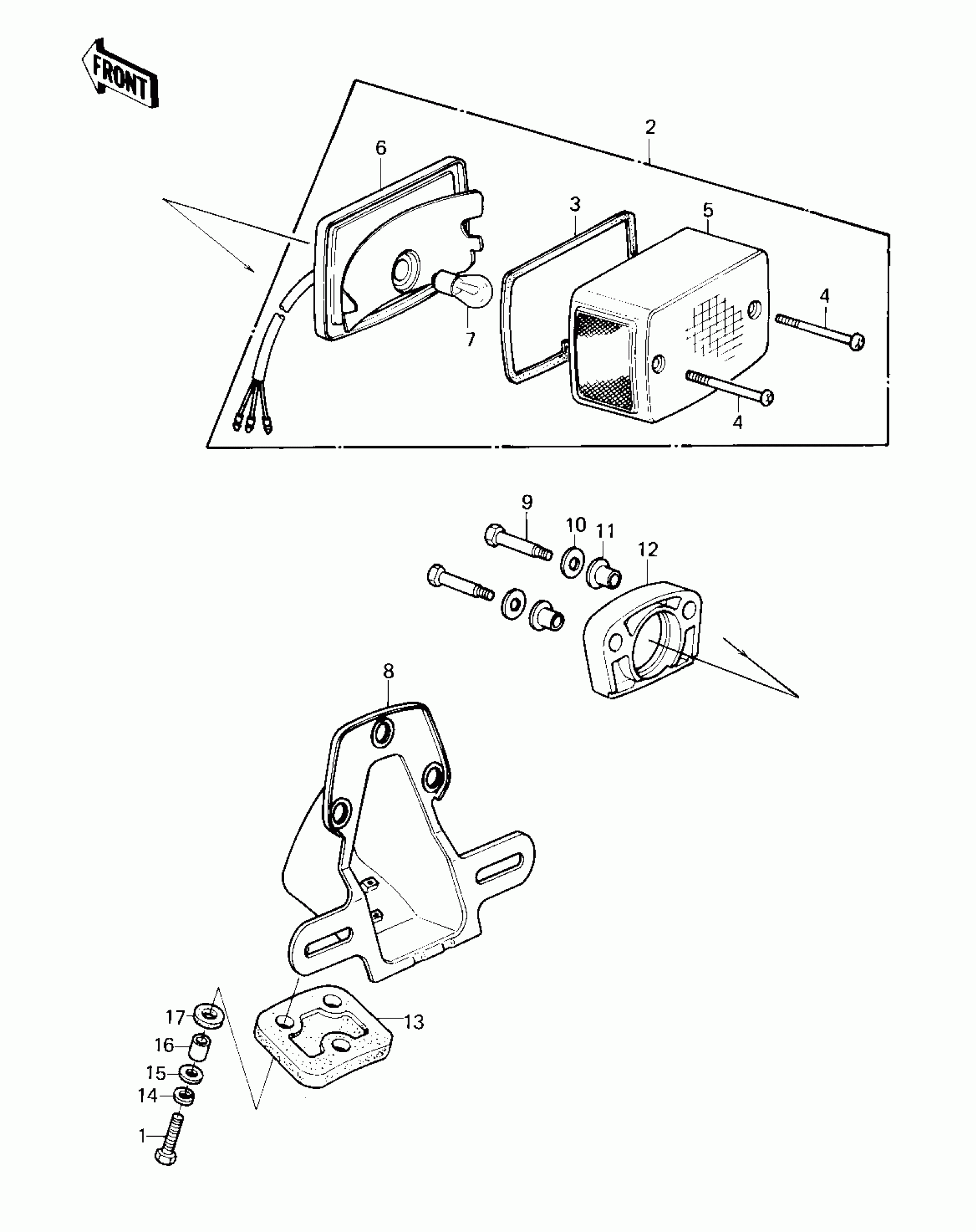

Kawasaki KZ250 TAILLIGHT ('80 D1) Diagram

BOLT-UPSET

LAMP-TAIL

GASKET,TAIL LAMP LENS

SCREW,PAN HEAD,4X40

LENS,TAIL LAMP

BODY-COMP-TAIL LAMP

BULB,12V 27/8W

BRACKET-TAIL LAMP

BOLT,TAIL LAMP FITTNG

WASHER,8.5X20X1.6

DAMPER

DAMPER,TAIL LAMP

DAMPER,TAIL LAMP

WASHER SPRING 6MM

WASHER,6.5X20X1.6

COLLAR,6.8X10X14.5

DAMPER,FENDER
