Description

Price

1

SWING ARM

33001-1049

$199.74

2

BUSHING-SWING ARM

33033-009

Unavailable

3

CAP,SWING ARM

33035-010

Unavailable

4

SLEEVE,SWING ARM

42036-1004

Unavailable

5

SHAFT-SWING ARM PIVOT

33032-037

Unavailable

6

NUT-LOCK,14MM

92019-011

Unavailable

7

NUT 8MM

312B0800

$0.58

8

ADJUSTER,CHAIN

33040-1001

$23.23

9

BOLT,8X50

92001-1399

$9.48

10

BOLT HEX HEAD 10X35

113N1035

$9.14

11

WASHER SPRING 10MM

461F1000

$0.67

12

WASHER-PLAIN,10MM

411B1000

$0.93

13

WASHER SPRING 10MM

461F1000

$0.67

14

NUT,CAP,10MM

92020-003

$6.52

15

WASHER,10.5X26X2.3

92022-044

$3.92

16

SHOCK ABSBR RR

45014-1048

$244.74

17

DAMPER,SHOCKABSORBER

45017-015

Unavailable

18

DAMPER,SHOCKABSORBER

45017-012

$14.90

19

COLLAR,SHOCKABSORBER

45016-008

$9.91

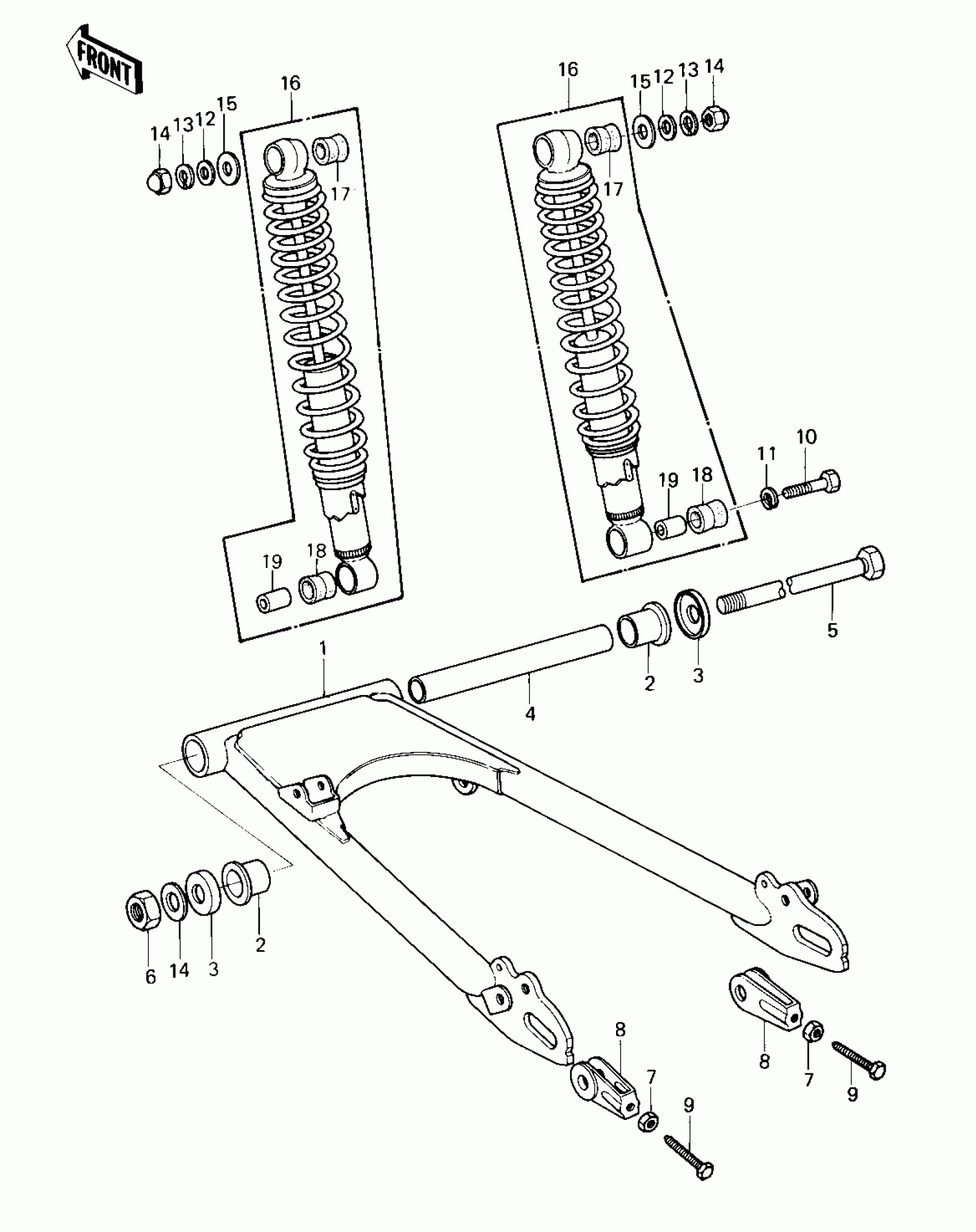

Kawasaki KZ250 SWING ARM/SHOCK ABSORBERS ('80 D1) Diagram

SWING ARM

BUSHING-SWING ARM

CAP,SWING ARM

SLEEVE,SWING ARM

SHAFT-SWING ARM PIVOT

NUT-LOCK,14MM

NUT 8MM

ADJUSTER,CHAIN

BOLT,8X50

BOLT HEX HEAD 10X35

WASHER SPRING 10MM

WASHER-PLAIN,10MM

WASHER SPRING 10MM

NUT,CAP,10MM

WASHER,10.5X26X2.3

SHOCK ABSBR RR

DAMPER,SHOCKABSORBER

DAMPER,SHOCKABSORBER

COLLAR,SHOCKABSORBER
