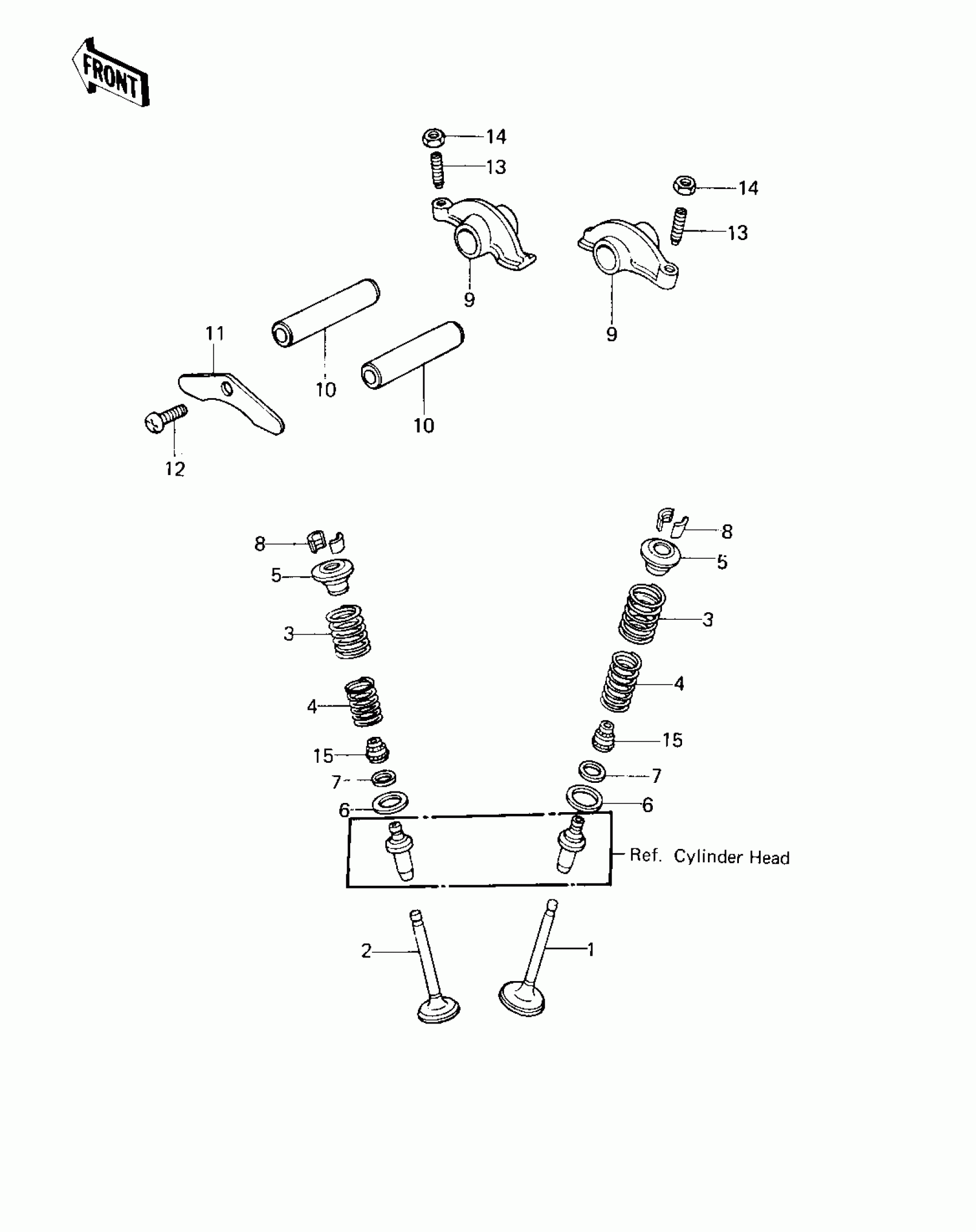

Kawasaki KZ250 ROCKER ARMS/VALVES ('80 D1) Diagram

#

Description

Price

1

VALVE,INLET

12004-1006

Unavailable

2

VALVE,EXHAUST

12005-1005

$70.65

3

SPRING,OUTER VALVE

12007-013

$16.53

4

SPRING,INNER VALVE

12007-014

$16.53

5

RETAINER,VALVE SPRING

12009-006

$11.50

6

SEAT,VLV OUTER SPRING

12010-005

$8.12

7

SEAT,VLV INNER SPRING

12010-006

Unavailable

8

COLLET,RETAINER

12011-004

$5.46

9

ARM,ROCKER

12016-012

Unavailable

10

SHAFT,ROCKER ARM

12020-004

$14.51

11

PLATE,POSITIONING

14014-034

$8.51

12

SCREW-PAN-CROS,6X14

220B0614

$1.48

13

SCREW,6MM

92013-009

$6.57

14

NUT,6MM

92016-061

$4.69

15

SEAL-OIL,RV37129.5

92049-016

$18.35
