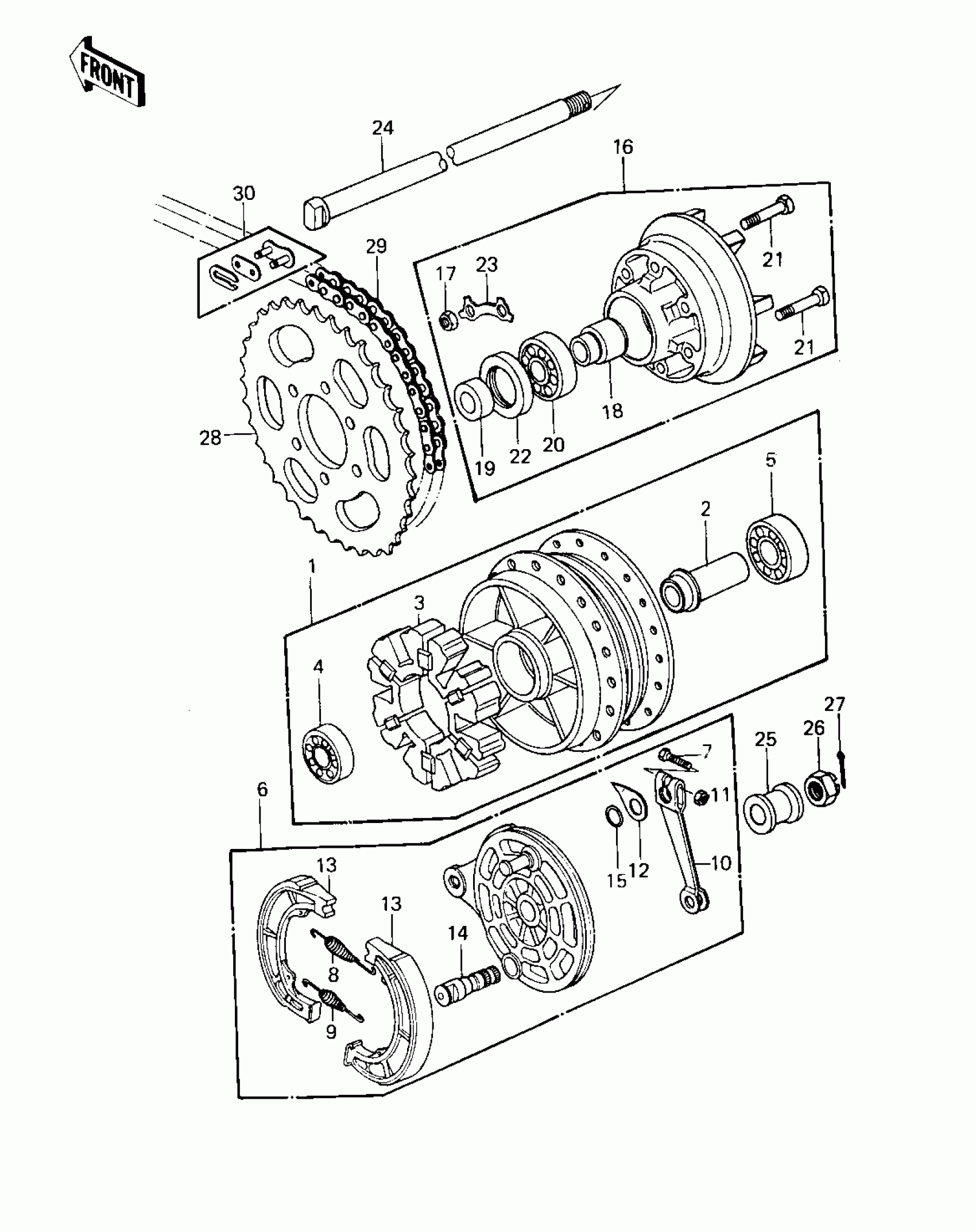

Kawasaki KZ250 REAR HUB/BRAKE/CHAIN ('80 D1) Diagram

#

Description
Price

1

DRUM ASSY,REAR

42005-057

Unavailable

2

SPACER,REAR HUB BEARG

42010-037

Unavailable

3

SHOCK DAMPER,REAR HUB

42014-030

$7.47

4

BEARING-BALL,#6202C3

601B6202

$7.27

5

BEARING BALL #6302Z

601B6302Z

$25.71

6

RR BRAKE PANEL ASSY

41035-1090

Unavailable

7

BOLT-UPSET

112G0630

Unavailable

8

SPRING,BRAKE SHOE

92081-1766

$6.13

9

SPRING,BRAKE SHOE

92081-1550

$9.20

10

LEVER,FRONT BRAKE CAM

41053-002

Unavailable

11

NUT,6MM

41072-007

$2.99

12

INDICATOR,BRAKE SHOE

41085-013

$13.78

13

SHOE,BRAKE

42019-010

$33.96

14

CAM SHAFT,REAR BRAKE

42026-026

Unavailable

15

RING-O,BRAKE CAM

92055-004

$4.25

16

COUPLING-ASSY,RR HUB

42033-1029

$147.17

17

NUT,8MM

311B0800

Unavailable

18

SLEEVE,REAR HUB COUPR

42036-031

Unavailable

19

COLLAR,REAR HUB COUPR

42037-029

$12.78

20

BEARING-BALL,#6004C3

601B6004

$10.14

21

BOLT REAR SPROCKET

92001-021

Unavailable

22

SEAL-OIL,26X42X8

92050-060

$16.98

23

WASHER,SPROCKET LOCK

92088-019

$5.42

24

AXLE,REAR

42031-059

$60.85

25

COLLAR,REAR AXLE

42032-076

$15.00

26

NUT,CASTLE,14MM

42045-020

$7.49

27

PIN-COTTER,3.0X25

550D3025

Unavailable

28

REAR.SPROCKET 37T

42041-1042

$80.42

29

DR CHAIN 520X100L

92057-1034

$168.44

30

CHAIN JOINT 520

92058-1001

Unavailable
