Description

Price

1

BOLT (6X10)

110R0610

$3.44

2

GASKET,MANIFOLD EXHAUST

11060-1068

$28.82

3

BRACKET,MUFFLER

11034-1662

Unavailable

4

BOLT 8X12

110N0812

$2.30

5

WASHER SPRING 8MM

461F0800

$0.40

6

BODY-COMP-MUFFLER

18002-1448

$551.49

7

PIPE-EXHAUST

18049-1387

Unavailable

8

CLAMP

92037-1226

$15.89

9

BOLT,8X30

92001-1379

Unavailable

10

GASKET,EXHAUST PIPE H

11009-1866

$8.25

11

HOLDER-EXHAUST PIPE

18069-1014

$18.82

12

NUT,8MM

92015-1143

$0.65

13

COLLAR,EXHAUST PIPE

92027-264

$4.73

14

DAMPER

92075-015

$5.00

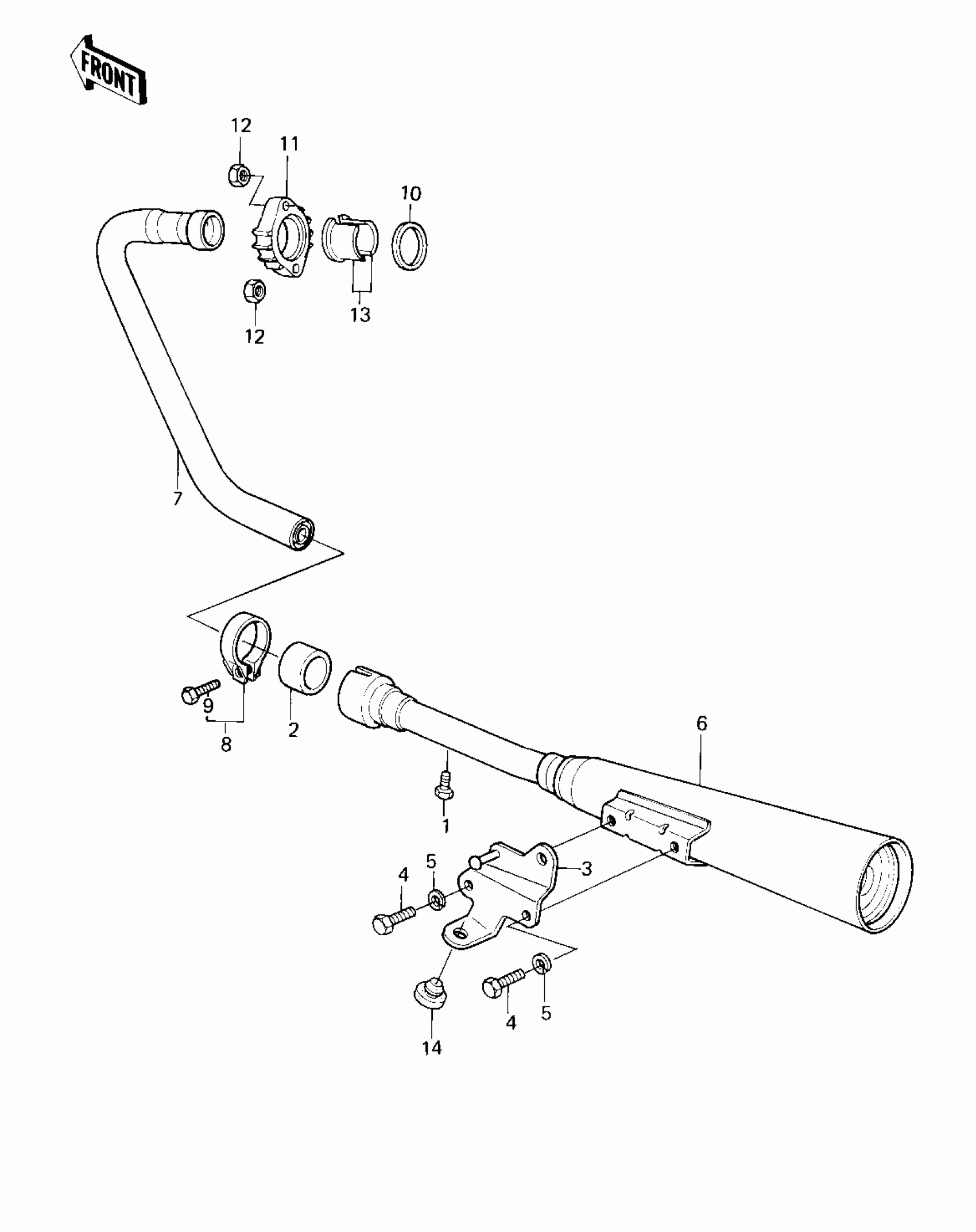

Kawasaki KZ250 MUFFLER ('80 D1) Diagram

BOLT (6X10)

GASKET,MANIFOLD EXHAUST

BRACKET,MUFFLER

BOLT 8X12

WASHER SPRING 8MM

BODY-COMP-MUFFLER

PIPE-EXHAUST

CLAMP

BOLT,8X30

GASKET,EXHAUST PIPE H

HOLDER-EXHAUST PIPE

NUT,8MM

COLLAR,EXHAUST PIPE

DAMPER
