Description

Price

1

CONDENSER

21013-036

Unavailable

2

BREAKER ASSY, CONTACT

21135-013

Unavailable

3

SCREW PAN HEAD 4X6

220B0406

$1.67

4

WASHER SPRING 4MM

461F0400

Unavailable

5

WASHER PLAIN 4MM

410B0400

$0.48

6

WIRING HARNESS,CONTAC

26001-1020

$24.70

7

BREAKER,CONTACT

21008-1002

Unavailable

8

BASE,CONTACT BREAKER

21021-1001

$21.66

9

BRUSH,OIL

21019-005

$5.39

10

ADVANCER,AUT TIMMING

21148-1015

$130.61

11

COIL,IGNITION

21121-1026

$251.28

12

CAP-SPARK PLUG,RTFM20

21130-1007

Unavailable

13

GROMMET,PLUG CAP

21131-004

$10.97

14

GROMMET,HIGH TENSION

21132-005

$4.26

15

SCREW PAN HEAD 6X10

220B0610

$3.14

16

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

17

PIN DOWEL 3X8

551A0308

$0.56

18

BOLT,6X14

92003-221

Unavailable

19

NUT,FLANGED,6MM

92015-1078

Unavailable

20

WASHER,PLAIN

92022-323

Unavailable

21

SPARK PLUG B7ES

B7ES

Unavailable

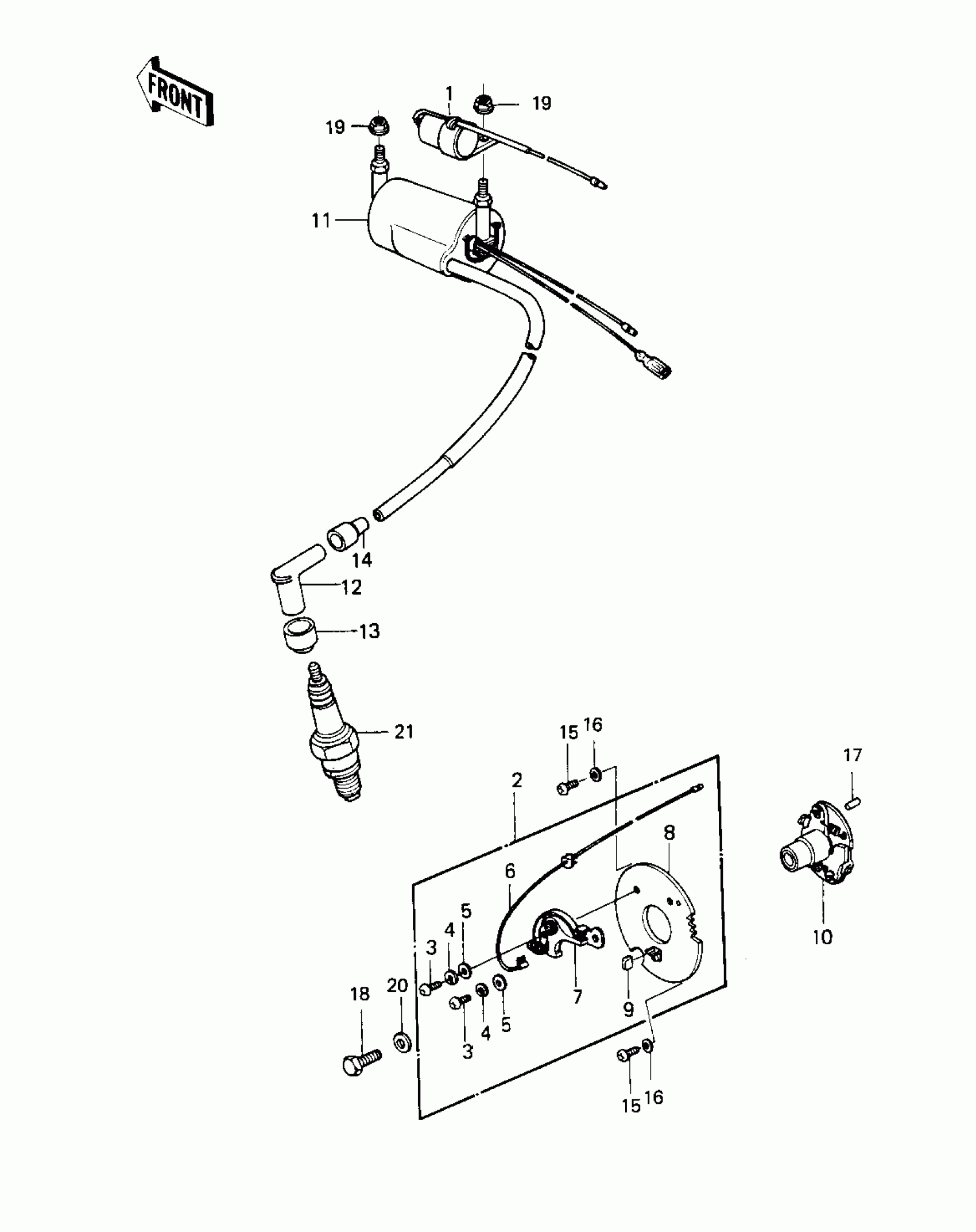

Kawasaki KZ250 IGNITION ('80 D1) Diagram

CONDENSER

BREAKER ASSY, CONTACT

SCREW PAN HEAD 4X6

WASHER SPRING 4MM

WASHER PLAIN 4MM

WIRING HARNESS,CONTAC

BREAKER,CONTACT

BASE,CONTACT BREAKER

BRUSH,OIL

ADVANCER,AUT TIMMING

COIL,IGNITION

CAP-SPARK PLUG,RTFM20

GROMMET,PLUG CAP

GROMMET,HIGH TENSION

SCREW PAN HEAD 6X10

WASHER-PLAIN-SMALL,6MM

PIN DOWEL 3X8

BOLT,6X14

NUT,FLANGED,6MM

WASHER,PLAIN

SPARK PLUG B7ES
