Description

Price

1

LAMP UNIT,HEAD

23003-025

$146.22

2

RIM-HEAD LAMP

23006-034

Unavailable

3

SEALED BEAM UNIT

23007-043

$154.18

4

SPRING,FOCUS ADJUSTING

23014-005

$3.62

5

SCREW,FOCUS ADJUSTING

23019-021

$4.69

6

SCREW,PAN HEAD,5X12

23019-023

$5.43

7

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

8

NUT,5MM

23020-023

Unavailable

9

WASHER,4.1X8X0.8

23021-004

$2.91

10

WASHER,PLAIN,5MM

23021-012

$5.43

11

BODY,HEAD LAMP BLACK

23005-1013

$106.86

12

SCREW,SPECIAL,5X14

23019-022

$2.12

13

DAMPER RUBBER A

23066-001

Unavailable

14

DAMPER RUBBER

23066-005

Unavailable

15

COLLAR

23076-005

$49.11

16

NUT-HEX-FINE,10MM

315B1000

$0.58

17

WASHER SPRING 10MM

461F1000

$0.67

18

BOLT,HEX HEAD,10X30

92007-041

Unavailable

19

BRACKET,HEAD LAMP

11034-1691

Unavailable

20

BOLT-UPSET

112G0625

$3.62

21

WASHER SPRING 6MM

461F0600

$0.69

22

COLLAR,L=13.1

92027-251

Unavailable

23

DAMPER RUBBER,RR FENR

92075-209

$4.69

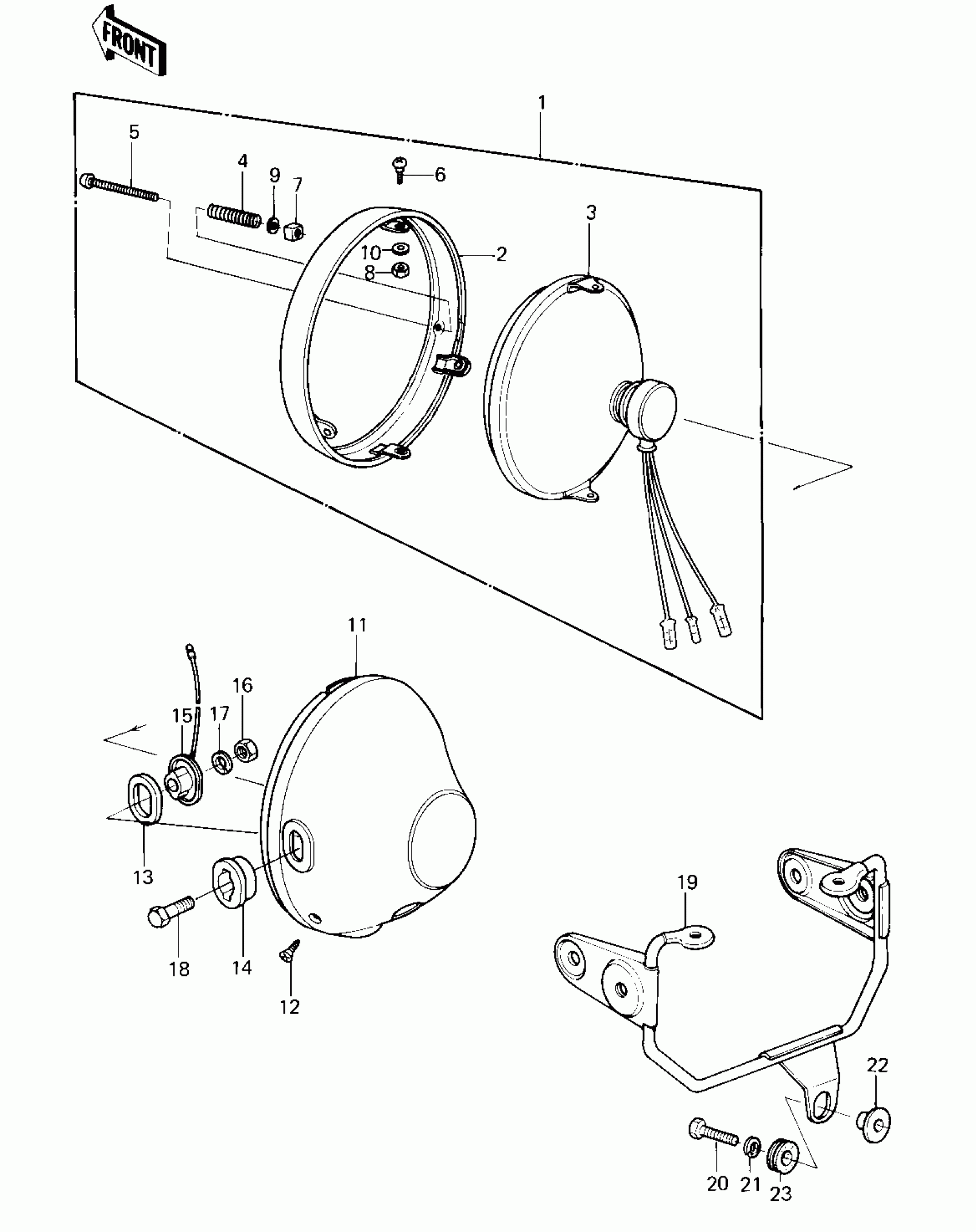

Kawasaki KZ250 HEADLIGHT ('80 D1) Diagram

LAMP UNIT,HEAD

RIM-HEAD LAMP

SEALED BEAM UNIT

SPRING,FOCUS ADJUSTING

SCREW,FOCUS ADJUSTING

SCREW,PAN HEAD,5X12

NUT,4MM,FOCUS ADJUST

NUT,5MM

WASHER,4.1X8X0.8

WASHER,PLAIN,5MM

BODY,HEAD LAMP BLACK

SCREW,SPECIAL,5X14

DAMPER RUBBER A

DAMPER RUBBER

COLLAR

NUT-HEX-FINE,10MM

WASHER SPRING 10MM

BOLT,HEX HEAD,10X30

BRACKET,HEAD LAMP

BOLT-UPSET

WASHER SPRING 6MM

COLLAR,L=13.1

DAMPER RUBBER,RR FENR
