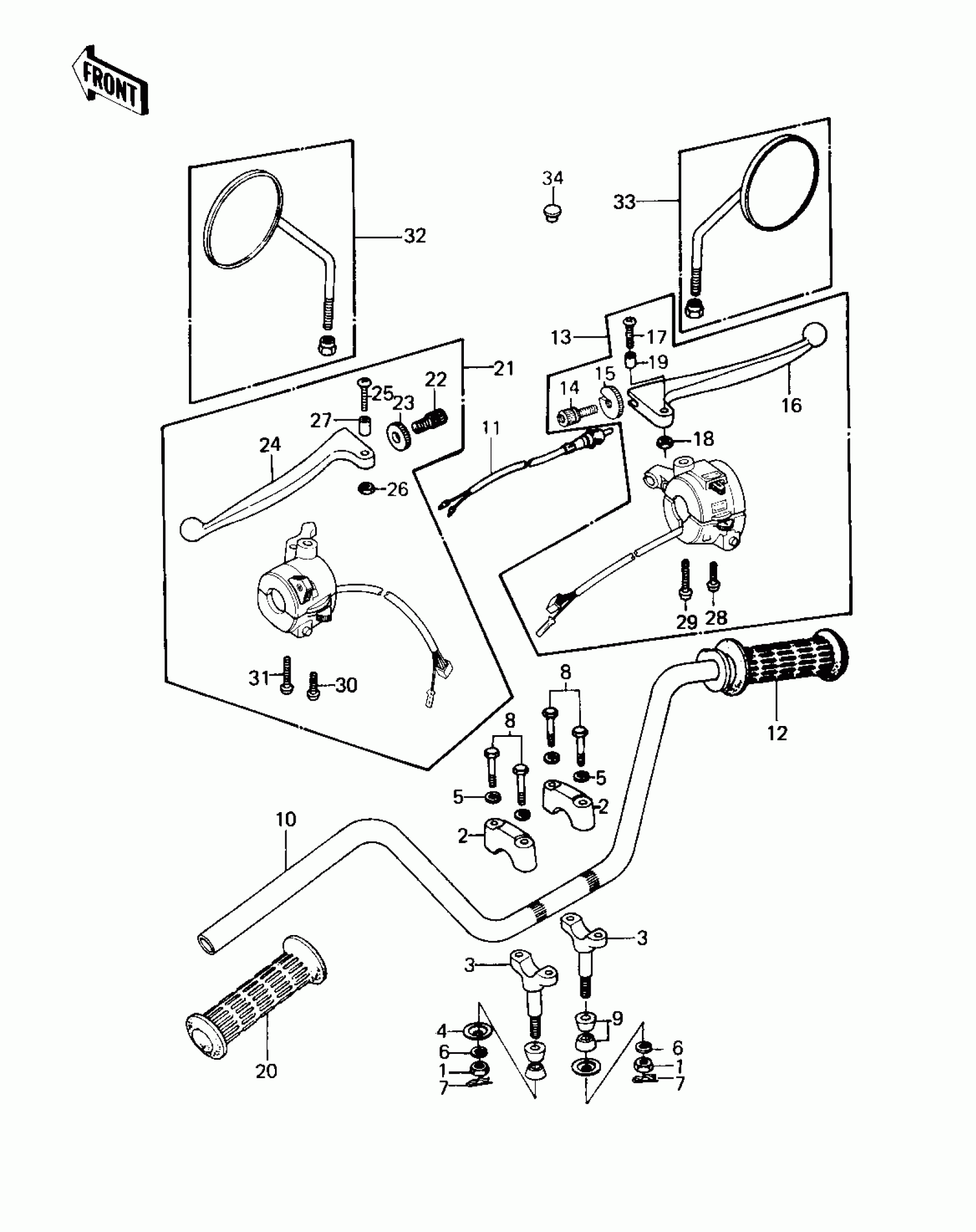

Kawasaki KZ250 HANDLEBAR ('80 D1) Diagram
#
Description
Price
1
NUT-HEX-FINE,10MM
314B1000
$0.67
2
HOLDER-HANDLE,UPP
46012-008
$37.74
3
HOLDER-HANDLE,LWR
46012-010
$30.76
4
PLATE,HANDLE HOLDER
46016-003
Unavailable
5
WASHER SPRING 8MM
461F0800
$0.40
6
WASHER SPRING 10MM
461F1000
$0.67
7
PIN-SNAP,8MM
554A0800
$1.26
8
BOLT 8X38
92001-1405
$16.50
9
DAMPER,HANDLE HOLDER
92075-039
$4.69
10
HANDLEBAR
46003-1045
$211.20
11
SWITCH,FR BRAKE LAMP
27021-004
$35.78
12
GRIP ASSY,THROTTLE
46019-041
$60.83
13
HOUSING ASSY,R.H
46091-1084
Unavailable
14
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
15
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
16
LEVER,FRONT BRAKE
46058-019
Unavailable
17
SCREW PAN HEAD 5X22
220B0522
$0.74
18
NUT,LOCK,5MM
92019-014
$4.50
19
COLLAR,LEVER
92027-1042
Unavailable
20
RUBBER,L.H GRIP
46075-028
$39.98
21
HOUSING.ASSY,L.H
46091-1085
Unavailable
22
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
23
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
24
LEVER,CLUTCH
46092-024
Unavailable
25
SCREW PAN HEAD 5X22
220B0522
$0.74
26
NUT,LOCK,5MM
92019-014
$4.50
27
COLLAR,LEVER
92027-1042
Unavailable
28
SCREW PAN HEAD 5X30
220B0530
$3.41
29
SCREW,PAN HEAD,5X48
92009-1017
$3.53
30
SCREW-PAN-CROS,5X25
220B0525
$3.67
31
SCREW,PAN HEAD,5X38
92009-1018
Unavailable
32
REAR VIEW MIRROR,L.H.
56001-1055
Unavailable
33
REAR VIEW MIRROR,R.H.
56001-1054
Unavailable
34
CAP-RR VIEW MIRROR
92102-009
Unavailable
