Description

Price

1

DRUM-ASSY,FR BRK,BUFF

41034-048-80

$259.52

2

SPACER FR HUB BEARING

41039-004

$9.58

3

BEARING-BALL,#6202C3

601B6202

$8.64

4

BEARING BALL #6202Z

601B6202Z

Unavailable

5

OIL SEAL RR BRK DRUM

92050-008

Unavailable

6

PANEL-ASY,FR BRK

41035-1028

$245.90

7

BOLT-UPSET,6X35

112G0635

Unavailable

8

CAM SHAFT,FR BRAKE

41050-1015

$35.39

9

SEAL,BRAKE CAM

41051-001

$4.26

10

LEVER,FR BRAKE CAM

41053-1017

$56.95

11

GEAR,SPEEDOMETER 29T

41060-1027

Unavailable

12

PINION,SPEEDOMET,11T

41060-1028

$18.91

13

WASHER,5.1X9X0.4

41063-001

$4.69

14

RECIEVER GEAR

41064-003

Unavailable

15

NUT,6MM

41072-007

$3.92

16

INDICATOR

41085-005

$12.96

17

SHOE,BRAKE

42019-011

$37.39

18

SPRING,BRAKE SHOE

42020-004

$8.51

19

BUSHING,SPEEDOMETER

92028-1066

$11.29

20

OIL SEAL F BRK PANEL

92050-010

$20.98

21

AXLE,FRONT

41068-1029

$52.31

22

NUT,14MM

92015-1407

$9.91

23

COLLAR,FR AXLE

92027-1218

$29.95

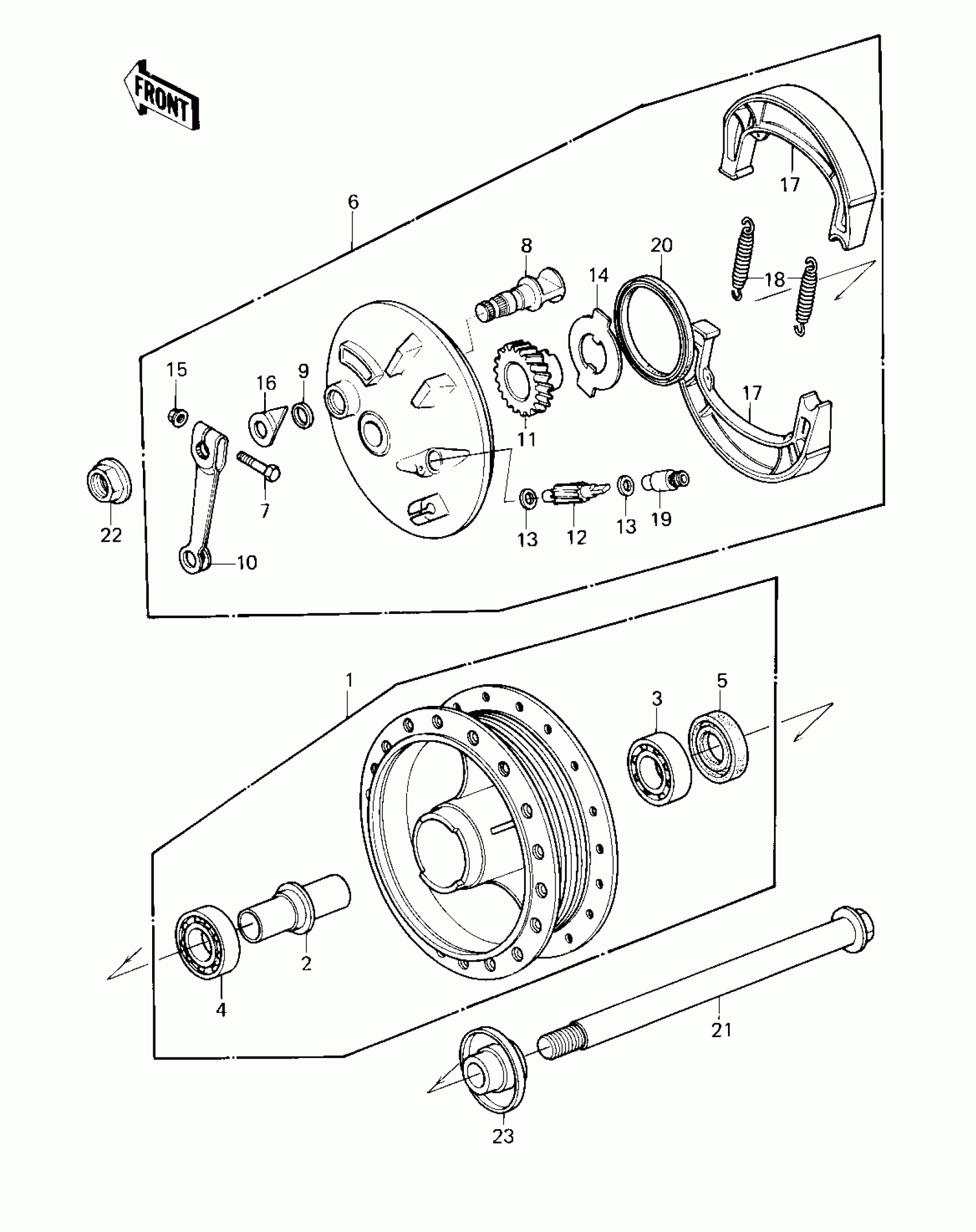

Kawasaki KZ250 FRONT HUB/BRAKE ('80 D1) Diagram

DRUM-ASSY,FR BRK,BUFF

SPACER FR HUB BEARING

BEARING-BALL,#6202C3

BEARING BALL #6202Z

OIL SEAL RR BRK DRUM

PANEL-ASY,FR BRK

BOLT-UPSET,6X35

CAM SHAFT,FR BRAKE

SEAL,BRAKE CAM

LEVER,FR BRAKE CAM

GEAR,SPEEDOMETER 29T

PINION,SPEEDOMET,11T

WASHER,5.1X9X0.4

RECIEVER GEAR

NUT,6MM

INDICATOR

SHOE,BRAKE

SPRING,BRAKE SHOE

BUSHING,SPEEDOMETER

OIL SEAL F BRK PANEL

AXLE,FRONT

NUT,14MM

COLLAR,FR AXLE
