Description

Price

1

FRAME,

32002-1113

$891.62

2

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

3

WASHER SPRING 8MM

461F0800

$0.40

4

BRACKET,ENGINE

32029-1008

$8.80

5

PLATE,ENGINE HEAD

32030-069

$13.84

6

BOLT,FLANGED,8X60

92001-1581

$5.14

7

BOLT,FLANGED,8X70

92001-1583

$9.57

8

BOLT,FLANGED,10X110

92001-1602

$11.07

9

NUT,LOCK,10MM

92019-021

$6.11

10

NUT,LOCK,8MM

92015-1124

$5.42

11

BALL-STEEL,3/16

600A0600

$1.07

12

RACE,STEERING STEM BEARING

92047-014

$12.72

13

RACE,STEERING STEM BEARING

92048-009

$14.10

14

BALL-STEEL,1/4

600A0800

$0.62

15

RACE,STEERING STEM BEARING,LWR

92048-005

$12.37

16

CAP,STEERING STEM

46098-012

Unavailable

17

NUT,STEERING LOCK,25MM

92090-022

$21.61

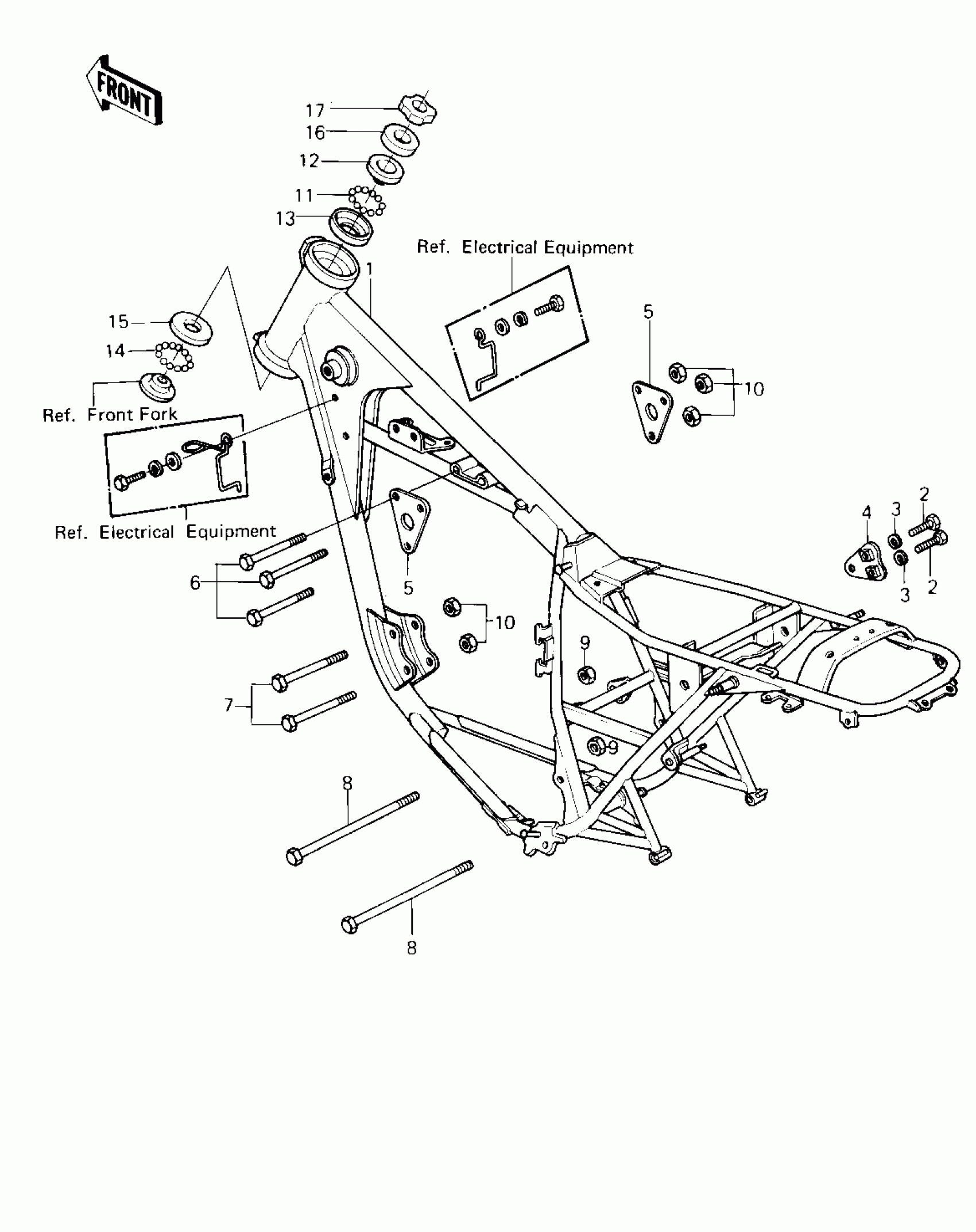

Kawasaki KZ250 FRAME/FRAME FITTINGS ('80 D1) Diagram

FRAME,

BOLT-SMALL-UPSET,8X16

WASHER SPRING 8MM

BRACKET,ENGINE

PLATE,ENGINE HEAD

BOLT,FLANGED,8X60

BOLT,FLANGED,8X70

BOLT,FLANGED,10X110

NUT,LOCK,10MM

NUT,LOCK,8MM

BALL-STEEL,3/16

RACE,STEERING STEM BEARING

RACE,STEERING STEM BEARING

BALL-STEEL,1/4

RACE,STEERING STEM BEARING,LWR

CAP,STEERING STEM

NUT,STEERING LOCK,25MM
