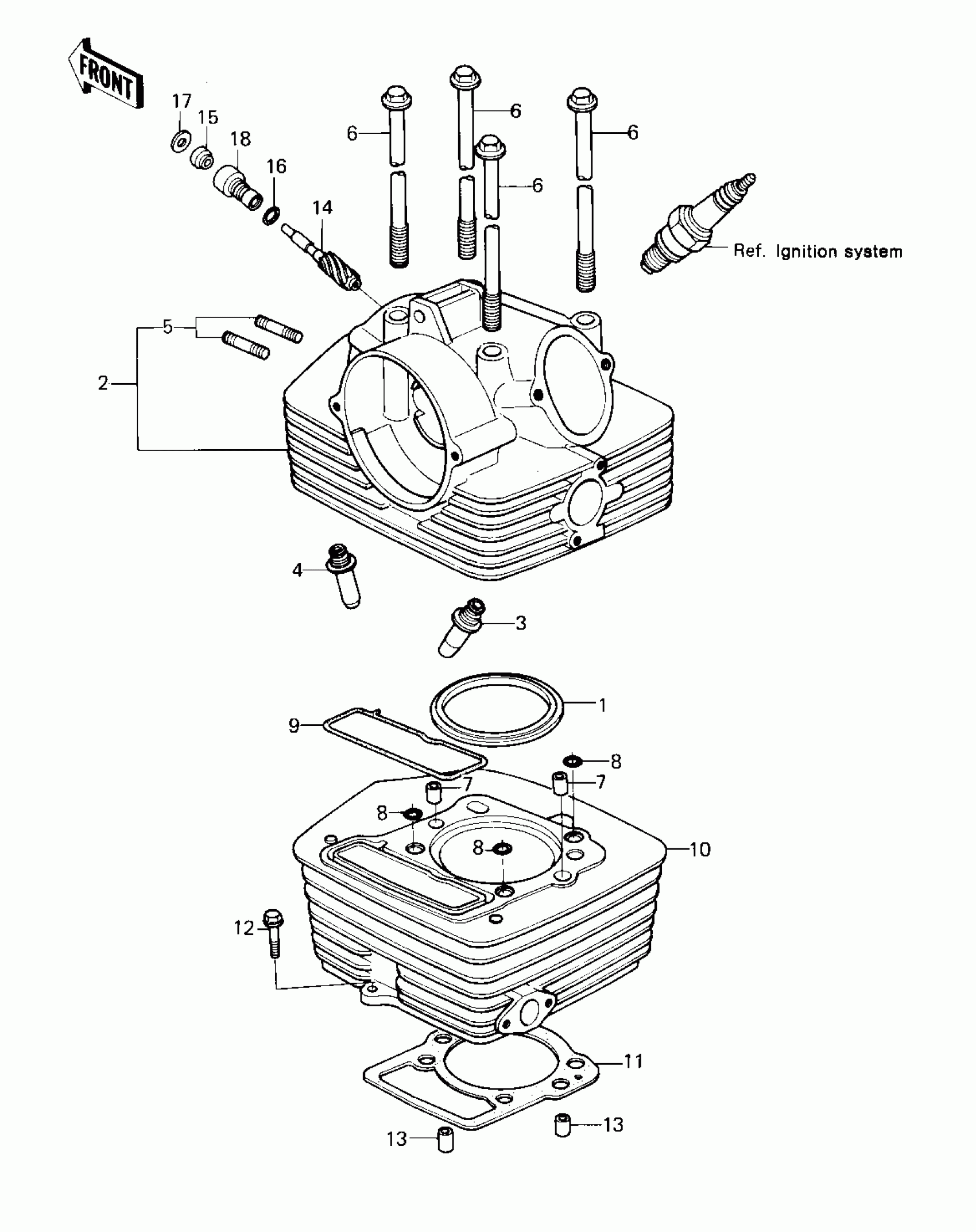

Kawasaki KZ250 CYLINDER HEAD/CYLINDER ('80 D1) Diagram

#

Description
Price

1

GASKET,CYLINDER HEAD

11004-1002

Unavailable

2

CYLINDER HEAD

11002-5013

Unavailable

3

GUIDE,INLET VALVE

12013-003

Unavailable

4

GUIDE,EXHAUST VALVE

49002-1010

Unavailable

5

STUD,8X30

92004-1069

$7.51

6

BOLT,8X233

92003-220

$17.92

7

PIN,DOWEL,10X14

92043-1037

$0.74

8

RING-O,10MM

92055-1149

$6.57

9

"0" RING

92055-105

$52.25

10

CYLINDER-ENGINE

11006-1005

Unavailable

11

GASKET,CYLINDER BASE

11009-043

Unavailable

12

BOLT,FLANGED,6X28

92003-202

Unavailable

13

PIN,DOWEL,10X14

92043-1037

$0.74

14

GEAR,TACHOMETER

13223-012

Unavailable

15

SEAL-OIL

92050-075

$11.39

16

RING-O,10MM

92055-1149

$6.57

17

GASKET,TACHO GEAR

92065-104

Unavailable

18

GUIDE,TACHOMETER GEAR

92087-011

$14.24
