Description

Price

1

NUT 6MM

311B0600

$0.93

2

PEDAL,BRAKE

43001-1044

$72.81

3

SPRING,BRAKE PEDAL

43005-029

$9.34

4

WASHER SPRING 8MM

461F0800

$0.40

5

BOLT,6X25

92001-1090

$4.11

6

NUT,CAP AND LOCK,8MM

92019-013

$14.88

7

WASHER,8.5X20X1.6

92022-1561

$4.31

8

NUT-HEX-FINE,10MM

315B1000

$0.58

9

TORQUE LINK REAR BRK

43007-018

Unavailable

10

WASHER SPRING 10MM

461F1000

$0.67

11

BOLT,10X25

92003-017

Unavailable

12

BOLT,10X29

92003-096

$10.72

13

PIN-SNAP,8MM

554A0800

$1.26

14

ROD,BRAKE

43011-1022

Unavailable

15

SPRING,BRAKE ROD

43012-001

$4.65

16

PIN COTTER 2.0X15

550D2015

$1.04

17

NUT,BRAKE ROD

92015-042

$6.22

18

PIN,BRAKE ROD

92043-039

$6.38

19

PIN,BRAKE ROD FITTING

92043-090

Unavailable

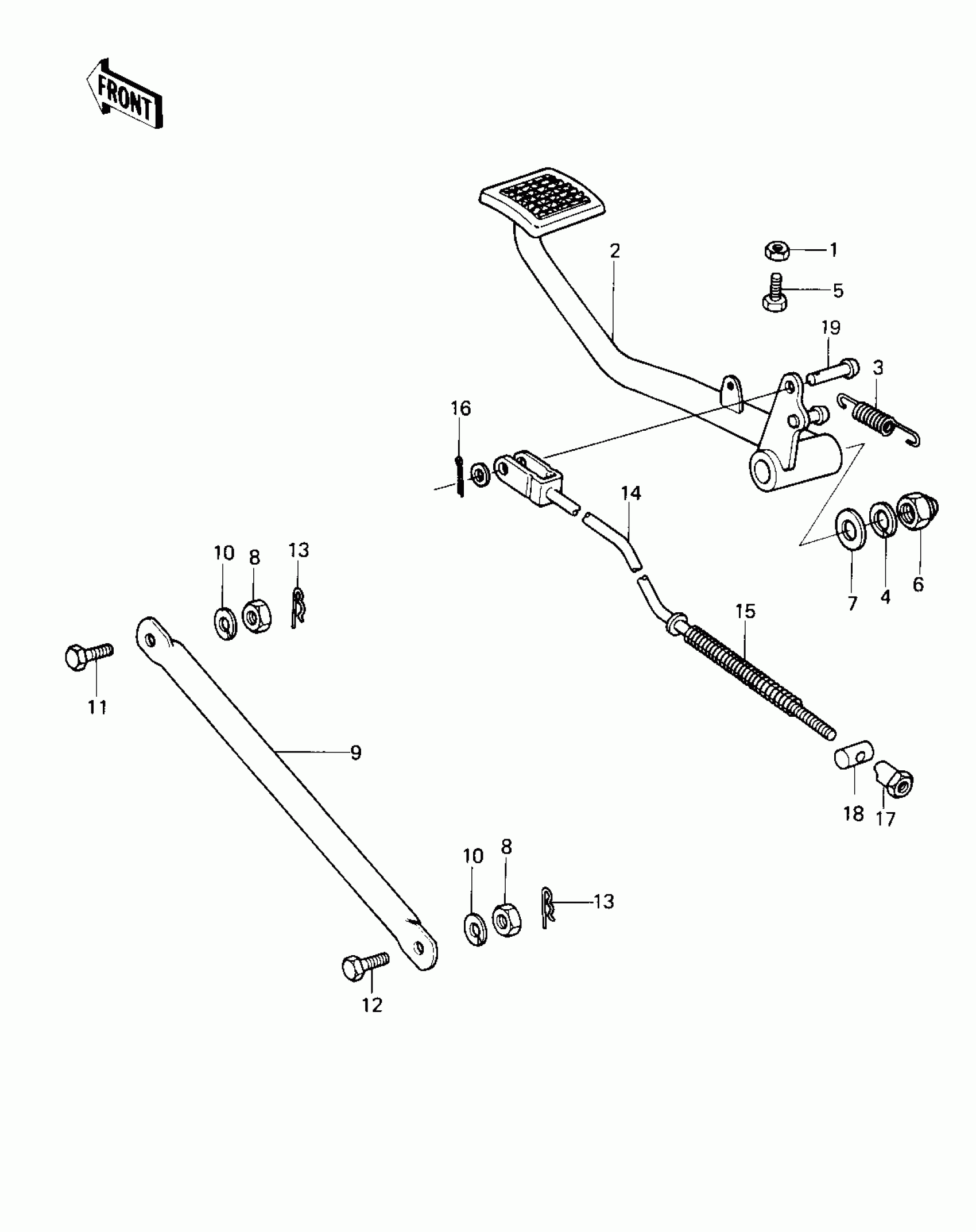

Kawasaki KZ250 BRAKE PEDAL/TORQUE LINK ('80 D1) Diagram

NUT 6MM

PEDAL,BRAKE

SPRING,BRAKE PEDAL

WASHER SPRING 8MM

BOLT,6X25

NUT,CAP AND LOCK,8MM

WASHER,8.5X20X1.6

NUT-HEX-FINE,10MM

TORQUE LINK REAR BRK

WASHER SPRING 10MM

BOLT,10X25

BOLT,10X29

PIN-SNAP,8MM

ROD,BRAKE

SPRING,BRAKE ROD

PIN COTTER 2.0X15

NUT,BRAKE ROD

PIN,BRAKE ROD

PIN,BRAKE ROD FITTING
