Description

Price

1

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

2

WASHER SPRING 8MM

461F0800

$0.40

3

STAY,RR FENDER

35011-1039

$111.65

4

BOLT 6X22

112B0622

$3.48

5

WASHER SPRING 6MM

461F0600

$0.69

6

CASE,BATTERY

32097-1023

$67.70

7

NUT,FLANGED,6MM

92015-1078

Unavailable

8

COLLAR

92027-194

$5.52

9

BAND,L=142.1

92072-006

$12.76

10

DAMPER,RUBBER

92075-078

$4.39

11

DAMPER

92075-277

$2.84

12

DAMPER

92075-280

Unavailable

13

BRACKET,RELAY

11034-1672

Unavailable

14

BOLT 6X22

112B0622

$3.48

15

WASHER SPRING 6MM

461F0600

$0.69

16

BOLT-UPSET,6X12

112G0612

$1.45

17

WASHER PLAIN 6MM

411B0600

$2.84

18

COLLAR

92027-194

$5.52

19

DAMPER

92075-277

$2.84

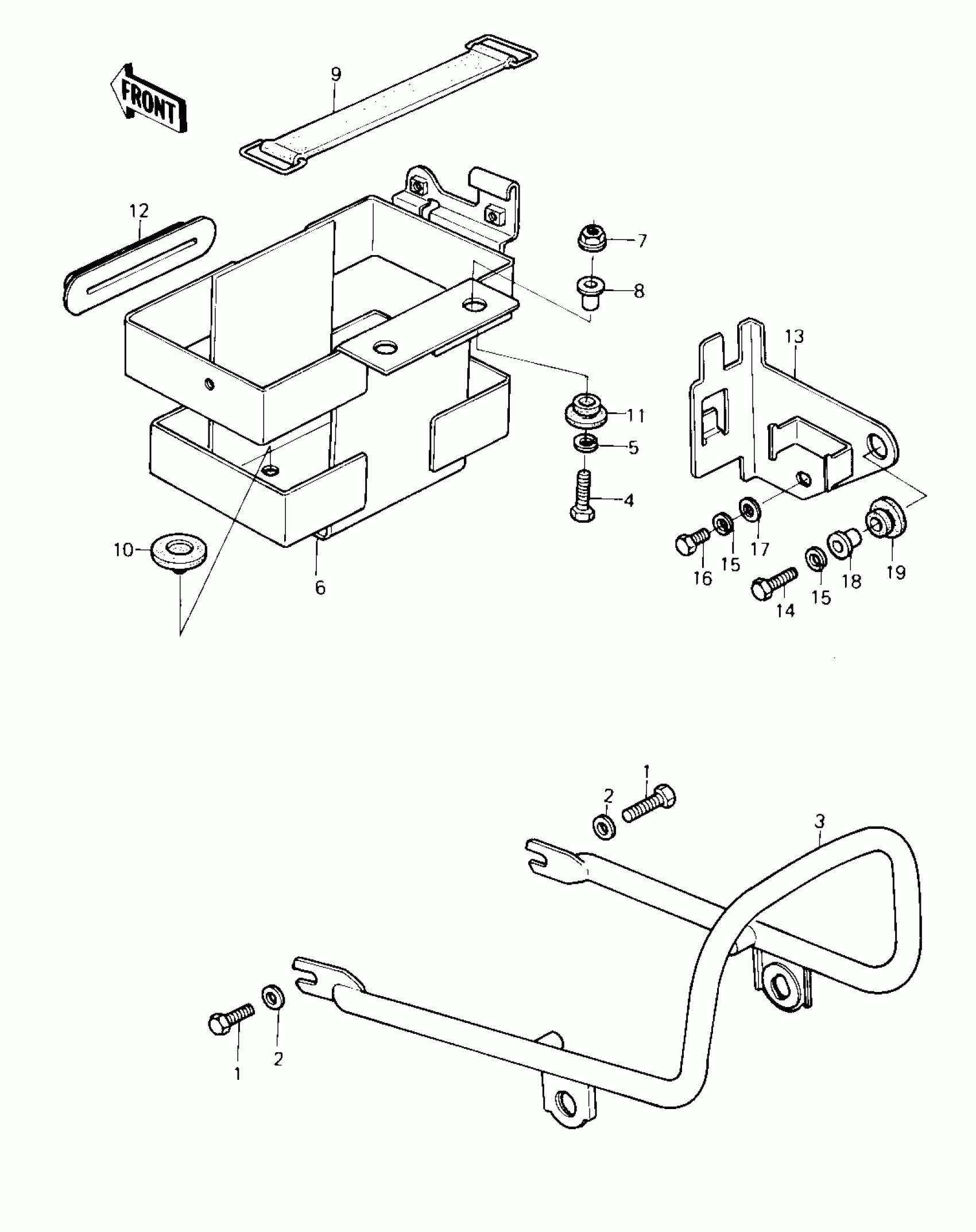

Kawasaki KZ250 BATTERY CASE/ELECTRO BASKET ('80 D1) Diagram

BOLT-SMALL-UPSET,8X16

WASHER SPRING 8MM

STAY,RR FENDER

BOLT 6X22

WASHER SPRING 6MM

CASE,BATTERY

NUT,FLANGED,6MM

COLLAR

BAND,L=142.1

DAMPER,RUBBER

DAMPER

DAMPER

BRACKET,RELAY

BOLT 6X22

WASHER SPRING 6MM

BOLT-UPSET,6X12

WASHER PLAIN 6MM

COLLAR

DAMPER
