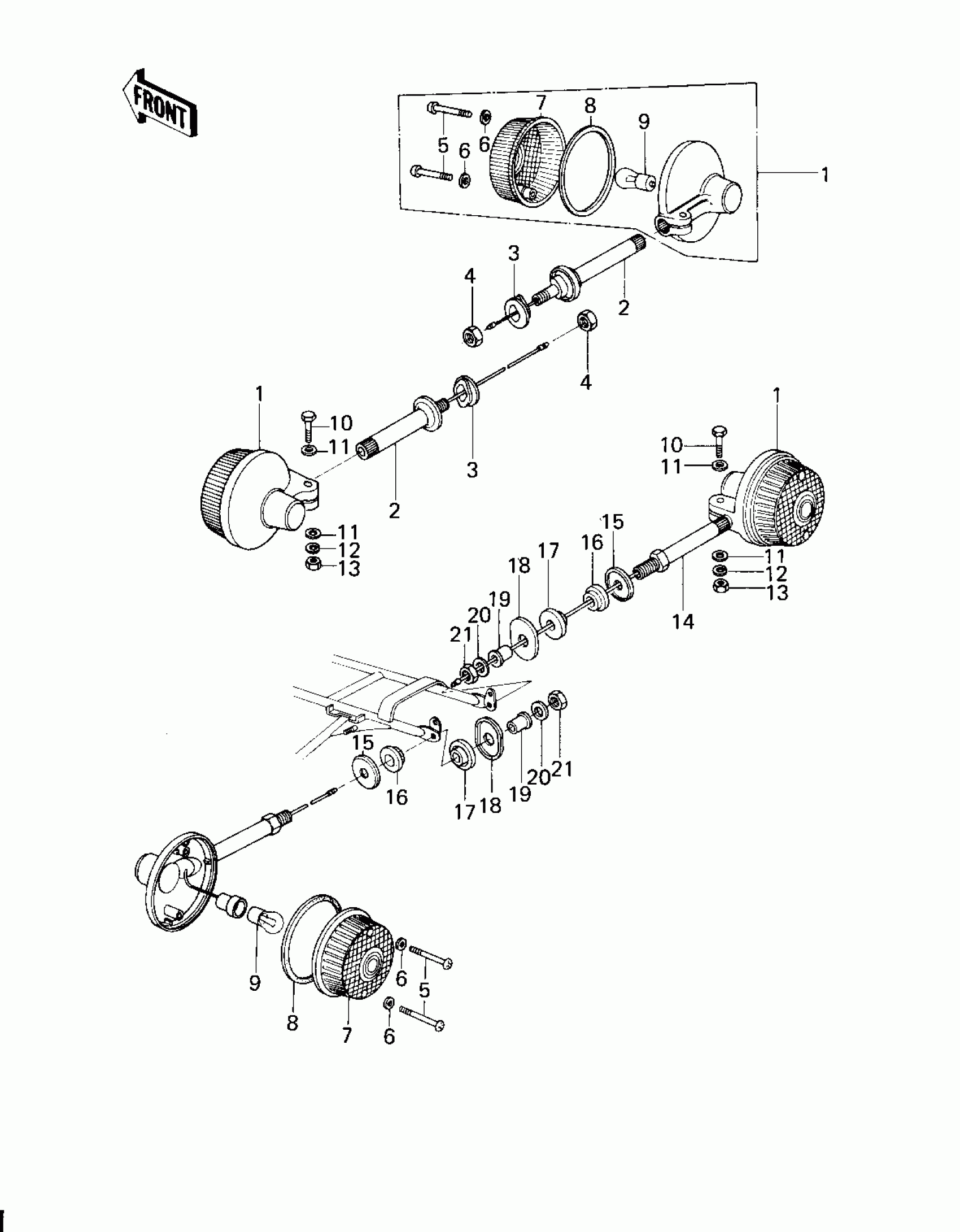

Kawasaki KZ200-A2 TURN SIGNALS Diagram
#
Description
Price
1
LAMP-SIGNAL
23040-054
Unavailable
2
BRACKET,TURN SIGNAL.L
23051-053
Unavailable
3
DAMPER,LAMP
92075-128
Unavailable
4
NUT-HEX-FINE,10MM
315B1000
Unavailable
5
SCREW-PAN HEAD,4X20
220E0420A
Unavailable
6
WASHER,PLAIN,4MM
23058-002
Unavailable
7
LENS-SIGNAL LAMP,"045-6588"
23048-1001
Unavailable
8
GASKET,SIGNAL LAMP
23050-003
Unavailable
9
BULB,12V 32CP(23W)
92069-055
Unavailable
10
BOLT-UPSET
112G0630
Unavailable
11
WASHER PLAIN 6MM
411B0600
Unavailable
12
WASHER SPRING 6MM
461F0600
Unavailable
13
NUT 6MM
311B0600
Unavailable
14
BKT TURN SIGNL LIGHT
23051-049
Unavailable
15
CAP,SIGNAL LIGHT STAY
92102-015
Unavailable
16
DAMPER RUBBER,SIGNAL
92075-241
Unavailable
17
DAMPER RUBBER,SIGNAL
92075-238
Unavailable
18
CAP,RR SIG LIGHT STAY
92102-013
Unavailable
19
COLLAR,RR SIG LIGHT
92027-225
Unavailable
20
WASHER PLAIN 12MM
411B1200
Unavailable
21
NUT-HEX-FINE
315B1200
Unavailable
