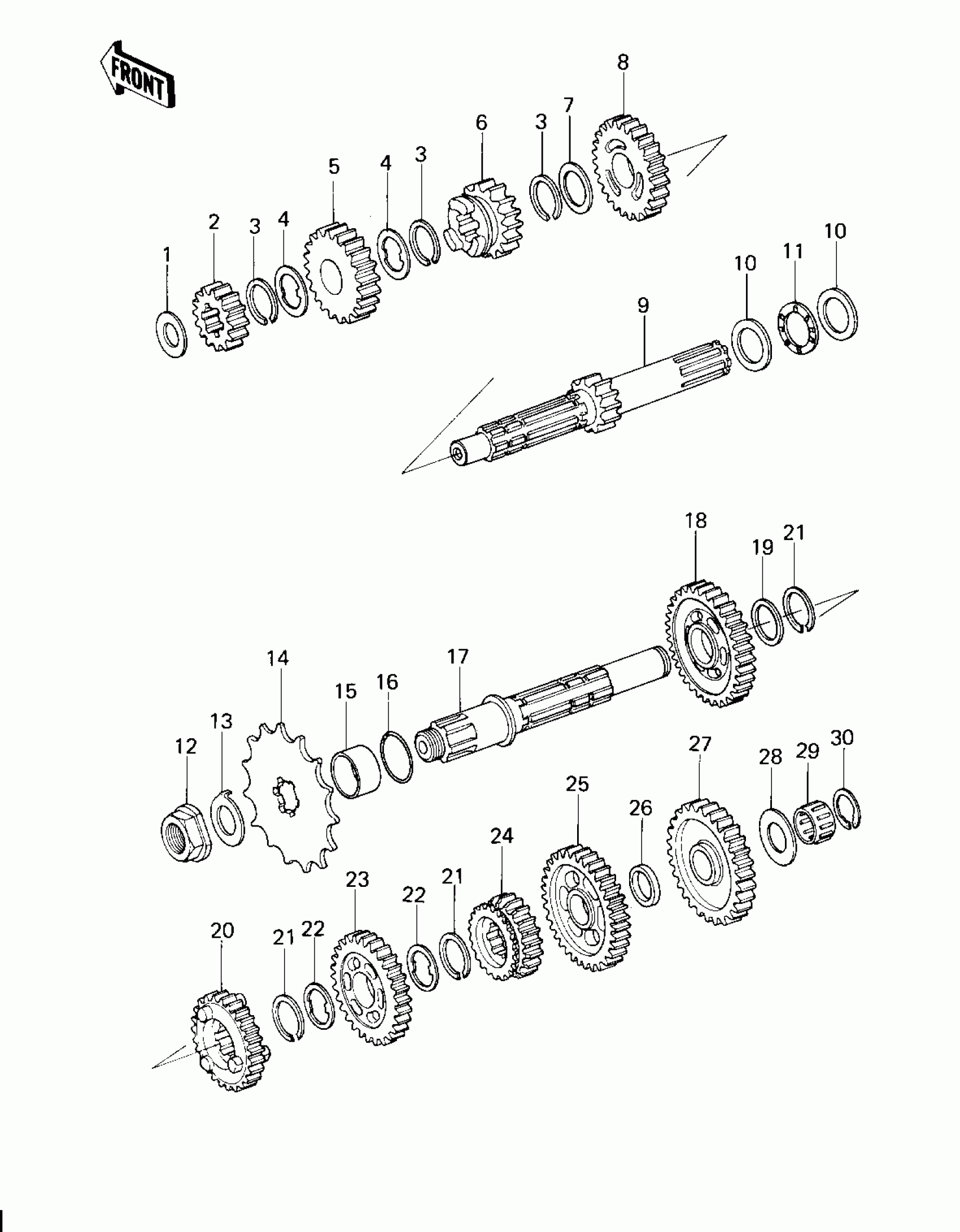

Kawasaki KZ200-A2 TRANSMISSION Diagram
#
Description
Price
1
WASHER,THRUST,15MM
92022-279
Unavailable
2
2ND GEAR,DRIVE SHAFT
13129-1022
Unavailable
3
RING-SNAP,20X25.5X1.2
92033-025
Unavailable
4
WASHER,TOOTHED,22.5X27X0.5
92024-039
Unavailable
5
4TH GEAR,DRIVE SHAFT
13134-026
Unavailable
6
GEAR,INPUT,3RD,20T
13129-1284
Unavailable
7
WASHER,22.3X27X0.5
92022-198
Unavailable
8
TOP GEAR,DRIVE SHAFT
13136-057
Unavailable
9
SHAFT,DRIVE
13127-053
Unavailable
10
WASHER,PLAIN
92022-314
Unavailable
11
BRG,NEEDLE,AXK1104
92046-052
Unavailable
12
NUT,LOCK,16M/M
92015-1013
Unavailable
13
WASHER,LOCK
92022-1017
Unavailable
14
SPROCKET-OUTPUT,15T
13144-069
Unavailable
15
COLLAR,ENGINE SPROCKT
92027-287
Unavailable
16
RING-O,17.5X1.5
92055-022
Unavailable
17
SHAFT,OUTPUT
13128-1007
Unavailable
17
SHAFT,OUTPUT
13128-1007
Unavailable
18
2ND GEAR,OUTPUT 26T
13131-044
Unavailable
19
WASHER,22.3X27X0.5
92022-198
Unavailable
20
GEAR,OUTPUT 4TH,21T
13129-1285
Unavailable
21
RING-SNAP,20X25.5X1.2
92033-025
Unavailable
22
WASHER,TOOTHED,22.5X27X0.5
92024-039
Unavailable
23
3RD GEAR,OUTPUT SHAFT
13133-044
Unavailable
24
TOP GEAR,OUTPUT SHAFT
13137-037
Unavailable
25
LOW GEAR,OUTPUT SHAFT
13129-058
Unavailable
26
SPACER
92026-114
Unavailable
27
IDLE GEAR,KICKSTARTER
13073-013
Unavailable
28
WASHER,17.3X30X1.4
92022-270
Unavailable
29
BEARING-NEEDLE
92046-1184
Unavailable
30
RING-SNAP
92033-032
Unavailable
