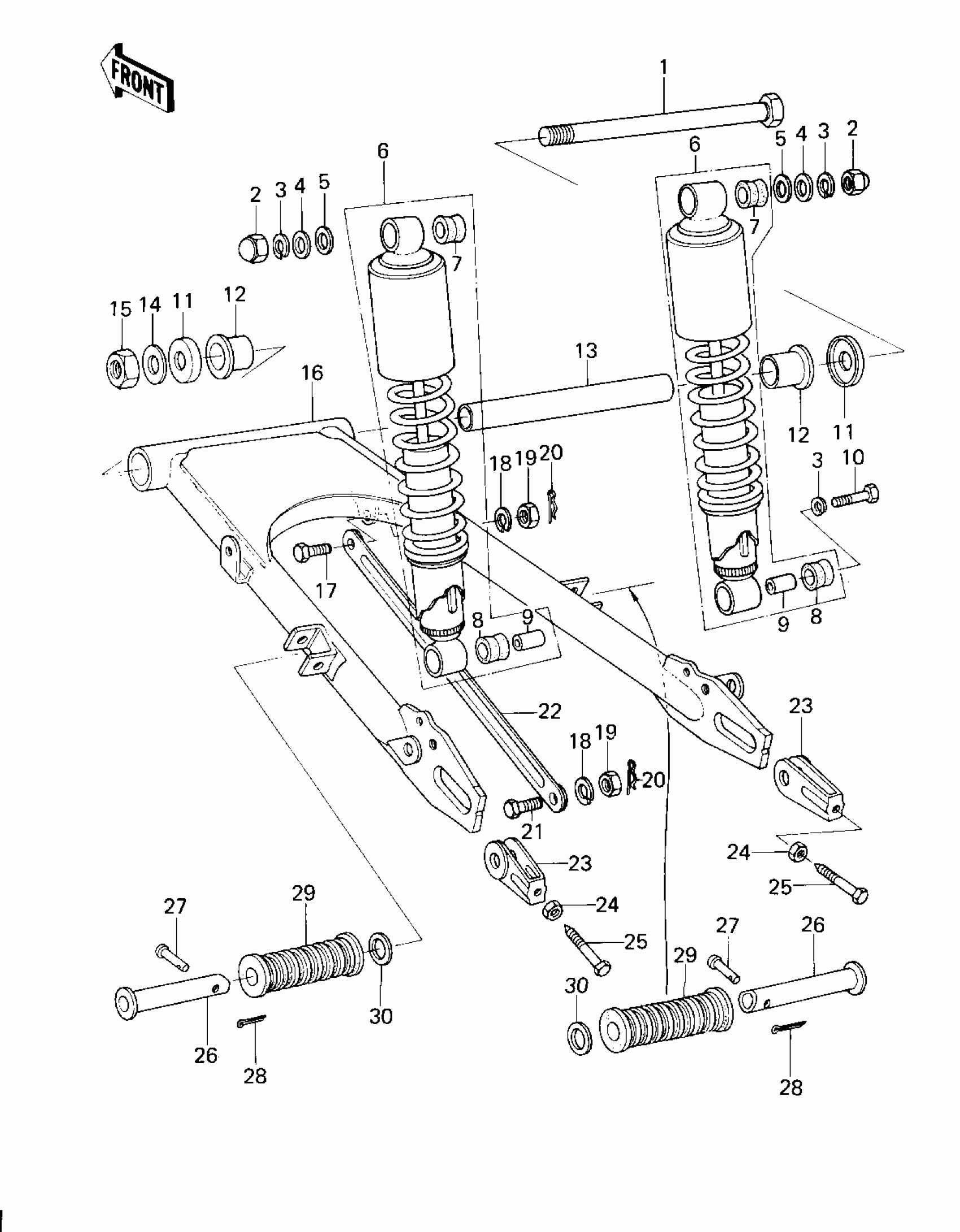

Kawasaki KZ200-A2 SWING ARM/SHOCK ABSORBERS Diagram
#
Description
Price
1
SHAFT-SWING ARM PIVOT
33032-037
Unavailable
2
NUT,CAP,10MM
92020-003
Unavailable
3
WASHER SPRING 10MM
461F1000
Unavailable
4
WASHER-PLAIN,10MM
411B1000
Unavailable
5
WASHER,10.5X26X2.3
92022-044
Unavailable
6
SHOCK ABSBR RR
45014-120
Unavailable
7
DAMPER,SHOCKABSORBER
45017-015
Unavailable
8
DAMPER,SHOCKABSORBER
45017-012
Unavailable
9
COLLAR,SHOCKABSORBER
45016-008
Unavailable
10
BOLT HEX HEAD 10X35
113N1035
Unavailable
11
CAP,SWING ARM
33035-010
Unavailable
12
BUSHING-SWING ARM
33033-009
Unavailable
13
SLEEVE,SWING ARM
42036-1004
Unavailable
14
WASHER-PLAIN-SMALL,14MM
410B1400
Unavailable
15
NUT-LOCK,14MM
92019-011
Unavailable
16
ARM,SWING
33001-094
Unavailable
17
BOLT,10X25
92003-017
Unavailable
18
WASHER SPRING 10MM
461F1000
Unavailable
19
NUT-HEX-FINE,10MM
315B1000
Unavailable
20
PIN-SNAP,8MM
554A0800
Unavailable
21
BOLT,10X29
92003-096
Unavailable
22
TORQUE LINK REAR BRK
43007-016
Unavailable
23
ADJUSTER,CHAIN
33040-1001
Unavailable
24
NUT 8MM
312B0800
Unavailable
25
BOLT,8X50
92001-1399
Unavailable
26
STEP,RR
34028-009
Unavailable
27
PIN,6X28
92043-1464
Unavailable
28
PIN COTTER 2.0X15
550D2015
Unavailable
29
RUBBER,REAR FOOTREST
92076-024
Unavailable
30
WASHER-PLAIN (OPT)
92022-199
Unavailable
