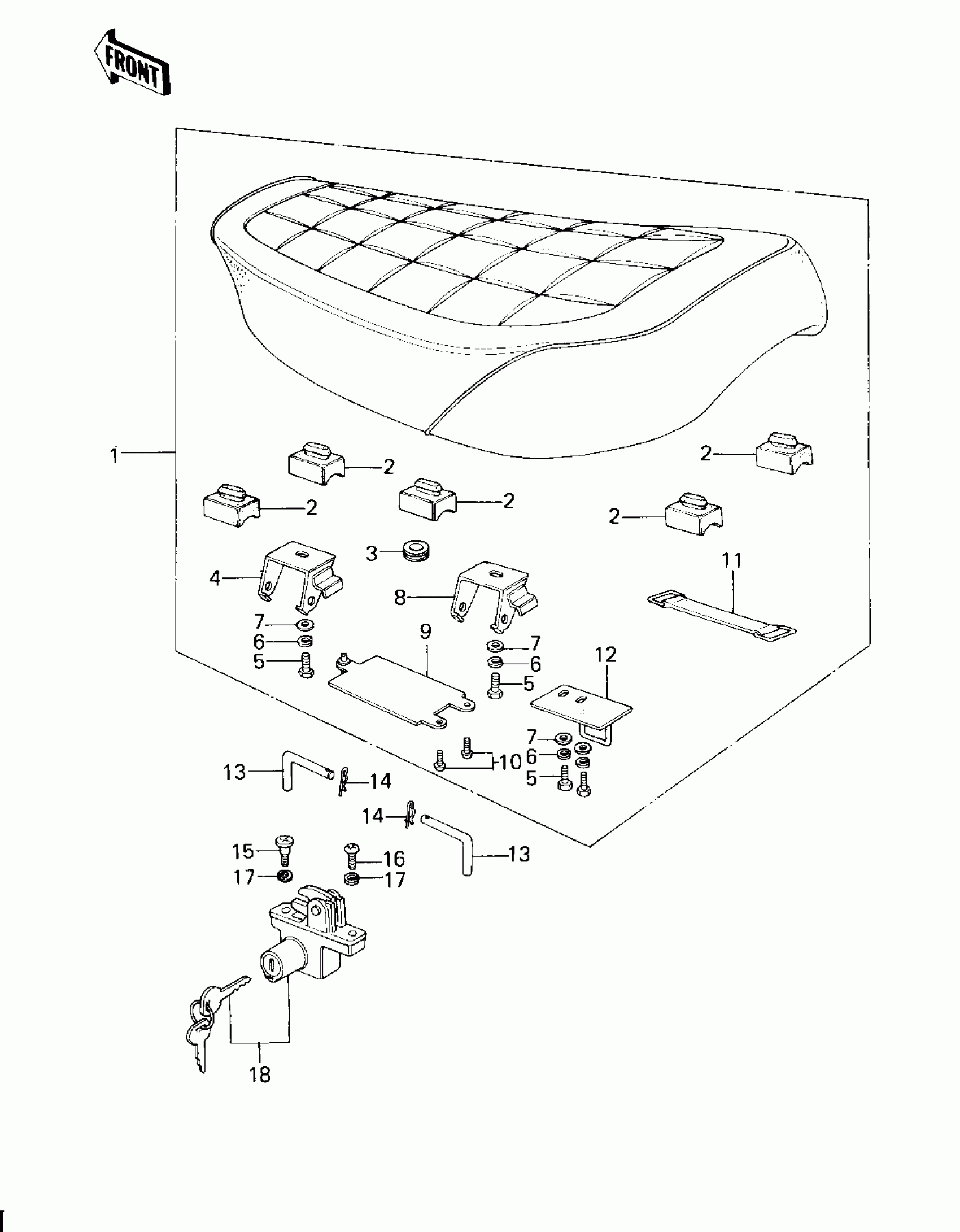

Kawasaki KZ200-A2 SEAT Diagram

#

Description

Price

1

SEAT-ASSY,DUAL,L/BAND

53001-1199

Unavailable

1

SEAT-ASSY,DUAL,L/BAND

53001-1199

Unavailable

2

DAMPER

92075-099

Unavailable

3

GROMMET

92071-056

Unavailable

4

HINGE,FRONT

53009-039

Unavailable

5

BOLT-UPSET 6X14

112B0614

Unavailable

6

WASHER SPRING 6MM

461F0600

Unavailable

7

WASHER PLAIN 6MM

411B0600

Unavailable

8

HINGE,REAR

53009-040

Unavailable

9

CASE,MANUAL

32099-011

Unavailable

10

SCREW PAN HEAD 5X8

220B0508

Unavailable

11

BAND,L=64

92072-1006

Unavailable

12

HOOK,SEAT

53008-024

Unavailable

13

PIN

53011-010

Unavailable

14

COTTER PIN

92041-003

Unavailable

15

BOLT,HELMET HOOK,6MM

92001-1021

Unavailable

16

SCREW-PAN-CROS,6X14

220B0614

Unavailable

17

WASHER SPRING 6MM

461F0600

Unavailable

18

LOCK ASSY,SEAT

27016-5024

Unavailable
