1979 Kawasaki KZ200-A2 Rocker Arms/valves Diagram

← All diagrams

Find the part on the Rocker Arms/valves diagram for your 1979 Kawasaki KZ200-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

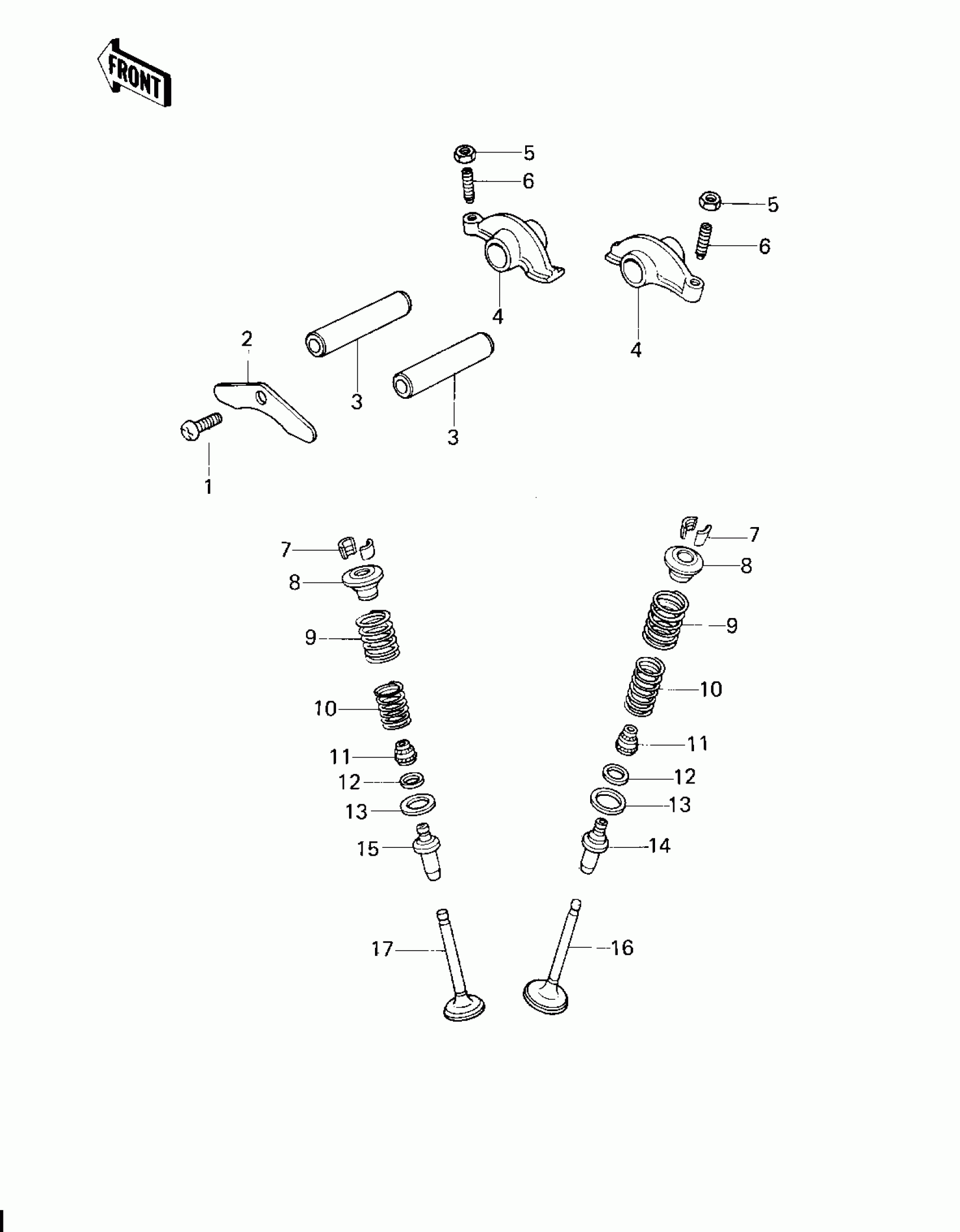

1979 Kawasaki KZ200-A2 Rocker Arms/valves Diagram

#

Description
Price
Status
Order Qty

1

SCREW-PAN-CROS,6X14

220B0614

Out of stock

2

PLATE,POSITIONING

14014-034

Out of stock

3

SHAFT,ROCKER ARM

12020-004

Out of stock

4

ARM,ROCKER

12016-012

Out of stock

5

NUT,6MM

92016-061

Out of stock

6

SCREW,6MM

92013-009

Out of stock

7

COLLET,RETAINER

12011-004

Out of stock

8

RETAINER,VALVE SPRING

12009-006

Out of stock

9

SPRING,OUTER VALVE

12007-013

Out of stock

10

SPRING,INNER VALVE

12007-014

Out of stock

11

SEAL-OIL,RV37129.5

92049-016

Out of stock

12

SEAT,VLV INNER SPRING

12010-006

Out of stock

13

SEAT,VLV OUTER SPRING

12010-005

Out of stock

14

GUIDE,INLET VALVE

12013-003

Out of stock

15

GUIDE,EXHAUST VALVE

49002-1010

Out of stock

16

VALVE,INLET

12004-018

Out of stock

17

VALVE,EXHAUST

12005-010

Out of stock
