1979 Kawasaki KZ200-A2 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1979 Kawasaki KZ200-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

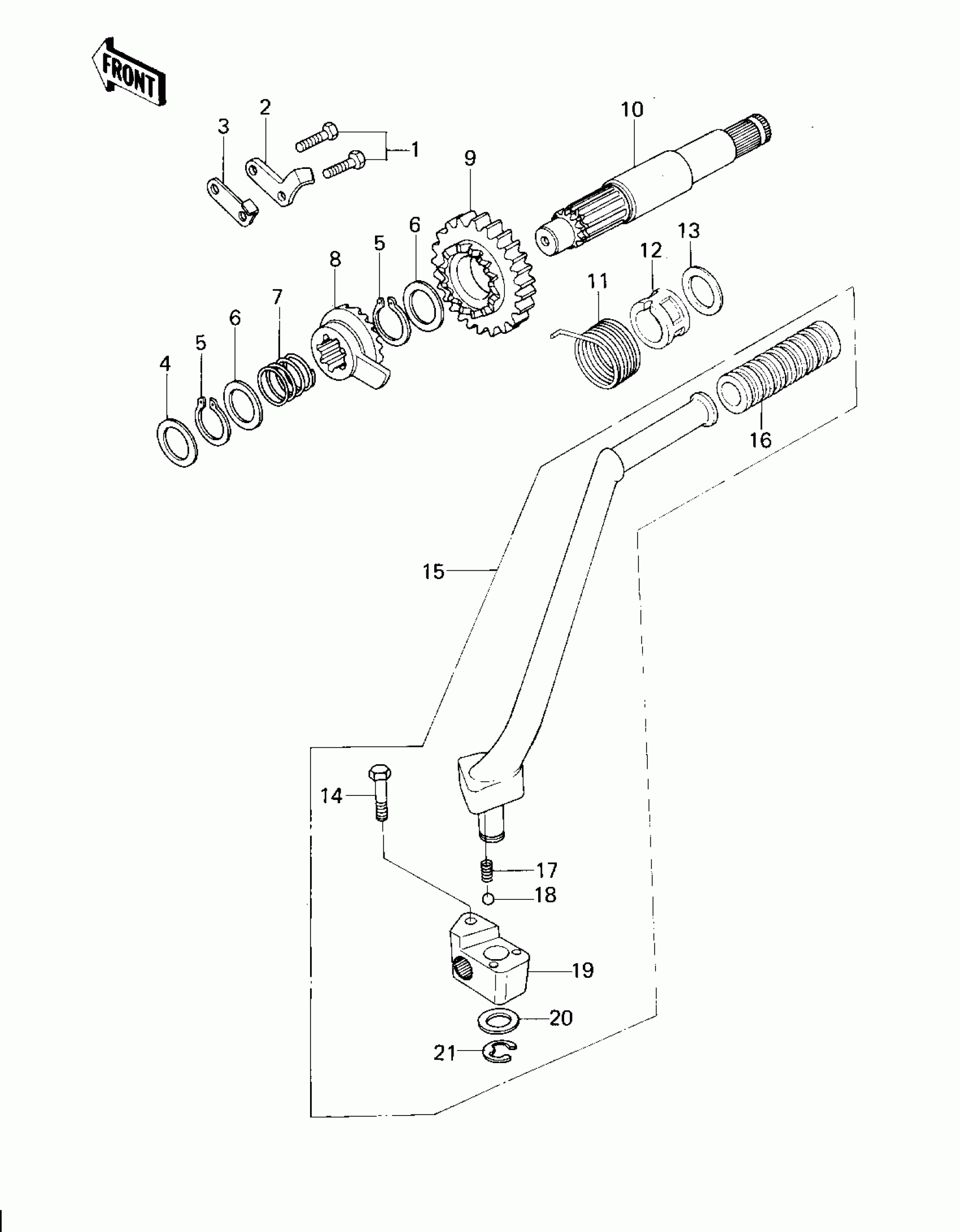

1979 Kawasaki KZ200-A2 Kickstarter Mechanism Diagram

#

Description
Price
Status
Order Qty

1

BOLT-UPSET

112G0618

Out of stock

2

GUIDE,KICK RATCHET

13206-1004

Out of stock

3

STOPPER,KICKSTARTER

13072-017

Out of stock

4

WASHER,12.3X20X0.5

92022-269

Out of stock

5

CIRCLIP-TYPE-C,16MM

480J1600

Out of stock

6

WASHER,16.8X22X0.5

92022-315

Out of stock

7

SPRING,RATCHET

92081-122

Out of stock

8

RATCHET

13078-1052

Out of stock

9

GEAR-COMP,KICKSTARTER

13216-1099

Out of stock

10

SHAFT,KICKSTARTER

13066-044

Out of stock

11

SPRING,KICKSTARTER

92082-003

Out of stock

12

GUIDE,KICK SPRING

13070-011

Out of stock

13

WASHER,18.5X23X1.2

92022-118

Out of stock

14

BOLT HEX HEAD 8X32

114G0832

Out of stock

15

PEDAL ASSY,KICKSTARTR

13064-1020

Out of stock

15

PEDAL ASSY,KICKSTARTR

13064-1020

Out of stock

16

DAMPER,KICK PEDAL

13063-004

Out of stock

17

SPRING

92081-154

Out of stock

18

BALL-STEEL,1/4

600A0800

Out of stock

19

BOSS,KICK PEDAL

13061-031

Out of stock

20

WASHER,15.2X20X1

92022-1019

Out of stock

21

CIR CLIP

482K0100

Out of stock
