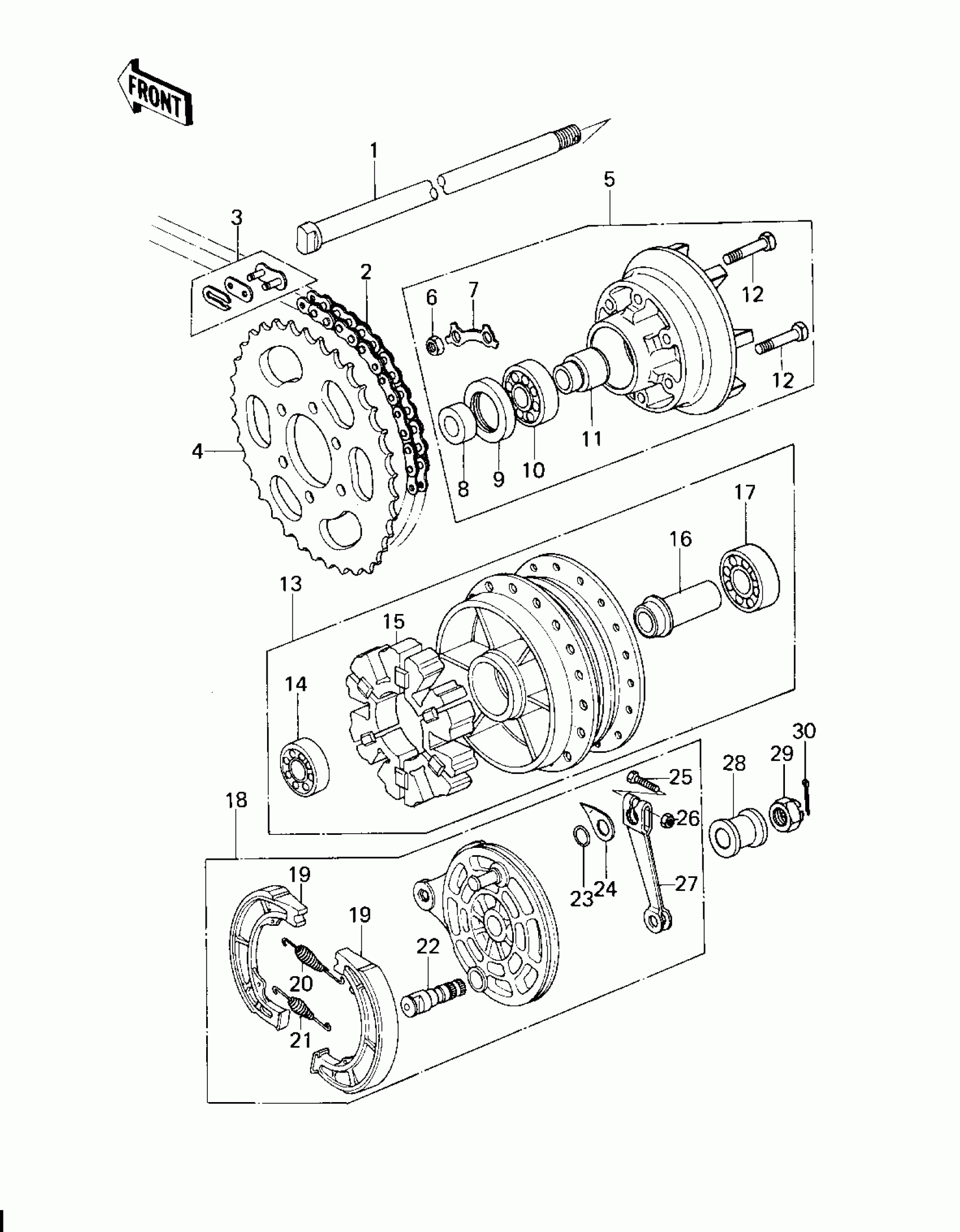

Kawasaki KZ200-A2 REAR HUB/BRAKE/CHAIN Diagram
#
Description
Price
1
AXLE,REAR
42031-059
Unavailable
2
DR CHAIN 520X98
92057-106
Unavailable
3
CHAIN JOINT 520
92058-1001
Unavailable
4
REAR SPROCKET,40T
42041-1002
Unavailable
5
COUPLING-ASSY,RR HUB
42033-1029
Unavailable
6
NUT,8MM
311B0800
Unavailable
7
WASHER,SPROCKET LOCK
92088-019
Unavailable
8
COLLAR,REAR HUB COUPR
42037-029
Unavailable
9
SEAL-OIL,26X42X8
92050-060
Unavailable
10
BEARING-BALL,#6004C3
601B6004
Unavailable
11
SLEEVE,REAR HUB COUPR
42036-031
Unavailable
12
BOLT REAR SPROCKET
92001-021
Unavailable
13
DRUM ASSY,REAR
42005-057
Unavailable
14
BEARING-BALL,#6202C3
601B6202
Unavailable
15
SHOCK DAMPER,REAR HUB
42014-030
Unavailable
16
SPACER,REAR HUB BEARG
42010-037
Unavailable
17
BEARING BALL #6302Z
601B6302Z
Unavailable
18
RR BRAKE PANEL ASSY
41035-1090
Unavailable
19
SHOE,BRAKE
42019-010
Unavailable
20
SPRING,BRAKE SHOE
92081-1766
Unavailable
21
SPRING,BRAKE SHOE
92081-1550
Unavailable
22
CAM SHAFT,REAR BRAKE
42026-026
Unavailable
23
RING-O,BRAKE CAM
92055-004
Unavailable
24
INDICATOR,BRAKE SHOE
41085-013
Unavailable
25
BOLT-UPSET
112G0630
Unavailable
26
NUT,6MM
41072-007
Unavailable
27
LEVER,FRONT BRAKE CAM
41053-002
Unavailable
28
COLLAR,REAR AXLE
42032-076
Unavailable
29
NUT,CASTLE,14MM
42045-020
Unavailable
30
PIN-COTTER,3.0X25
550D3025
Unavailable
