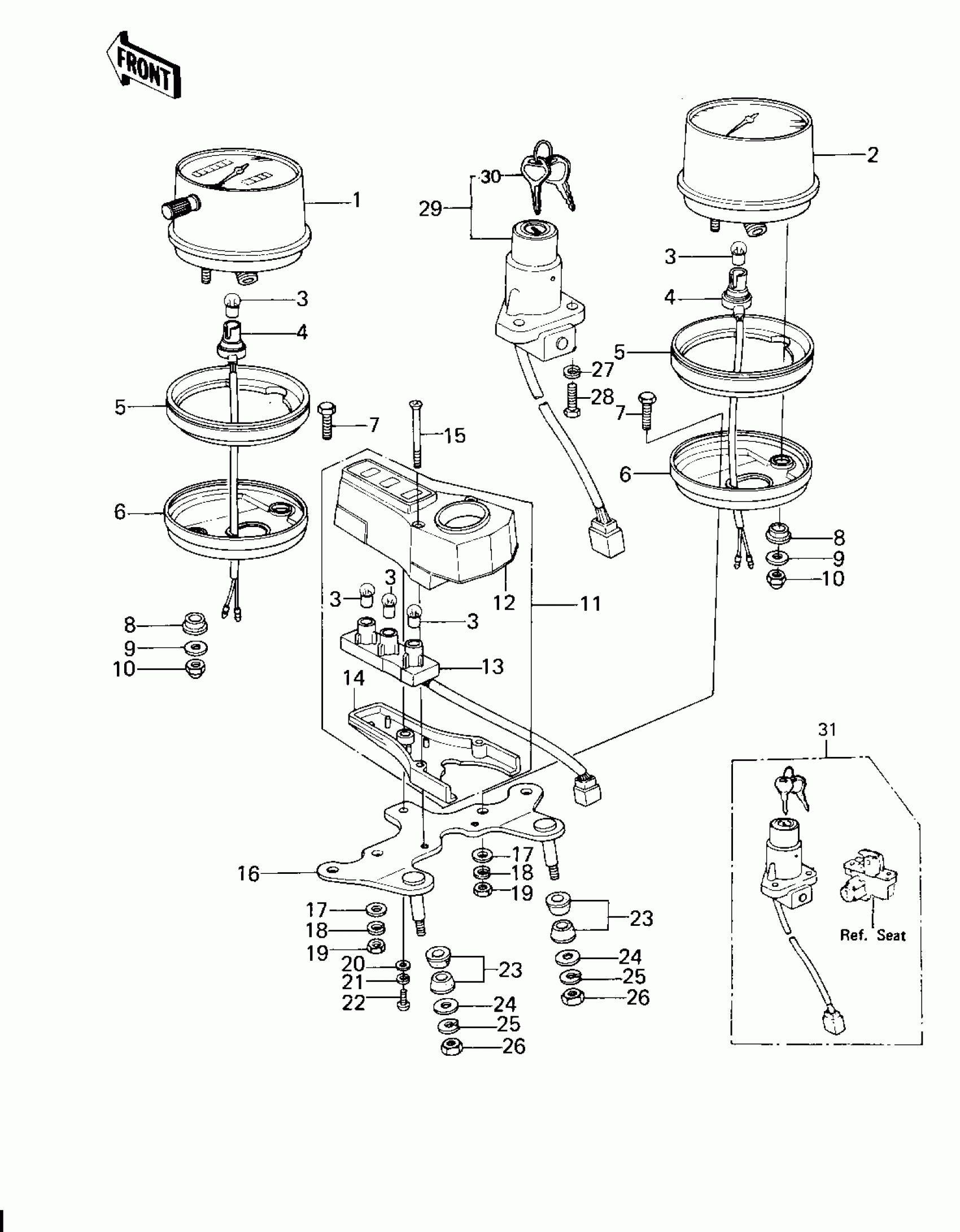

Kawasaki KZ200-A2 METERS/IGNITION SWITCH Diagram
#
1
SPEEDOMETER ASSY,MPH
25006-072
Unavailable
1
SPEEDOMETER ASSY,MPH
25005-1038
Unavailable
1
SPEEDOMETER ASSY,MPH
25005-1038
Unavailable
1
SPEEDOMETER ASSY,KPH (Canada)
25006-080
Unavailable
1
SPEEDOMETER ASSY,KPH (Canada)
25005-1025
Unavailable
2
TACHOMETER ASSY
25016-031
Unavailable
2
TACHOMETER ASSY
25015-1016
Unavailable
3
BULB 12V 3W
92069-018
Unavailable
4
SOCKET ASSY
25010-022
Unavailable
5
SHOCK DAMPER,SPEEDMET
25019-031
Unavailable
6
COVER,METER
25012-025
Unavailable
7
BOLT,HEX HEAD,6X14
92003-204
Unavailable
8
DAMPER,METER
25019-013
Unavailable
9
WASHER PLAIN 6MM
411B0600
Unavailable
10
NUT-CAP,5MM
322N0500
Unavailable
11
LAMP ASSY,PILOT
23016-022
Unavailable
12
COVER,INDICATOR LIGHT
25023-017
Unavailable
13
SOCKET ASSY,INDICATOR
25011-056
Unavailable
14
COVER,METER BRACKET
25024-008
Unavailable
15
SCREW,PAN HEAD
92012-005
Unavailable
16
BRACKET,METER
25008-051
Unavailable
17
WASHER PLAIN 6MM
411B0600
Unavailable
18
WASHER-SPRING,6MM,BLACK
461K0600
Unavailable
19
NUT
92015-078
Unavailable
20
WASHER PLAIN 4MM
410B0400
Unavailable
21
WASHER SPRING 4MM
461F0400
Unavailable
22
SCREW-PAN-CRSOSS,4X1
220B0412
Unavailable
23
DAMPER RUBBER,METER
92075-248
Unavailable
24
WASHER,6.5X22X1.6
92022-237
Unavailable
25
WASHER SPRING 6MM
461F0600
Unavailable
26
NUT 6MM
311B0600
Unavailable
27
WASHER SPRING 6MM
461F0600
Unavailable
28
BOLT-UPSET,6X16
112G0616
Unavailable
29
SWITCH ASSY,IGNITION
27005-1031
Unavailable
29
SWITCH ASSY,IGNITION
27005-1031
Unavailable
30
KEY SET,#G01
27008-1002-01
Unavailable
30
KEY SET,#G35
27008-1002-35
Unavailable
30
KEY,BLANK
27008-1028
Unavailable
30
KEY,BLANK
27008-1029
Unavailable
30
KEY-LOCK,BLANK,#A
27008-1034
Unavailable
30
KEY-LOCK,BLANK,#B
27008-1035
Unavailable
31
LOCK SET,KZ200A2
27004-5055
Unavailable
