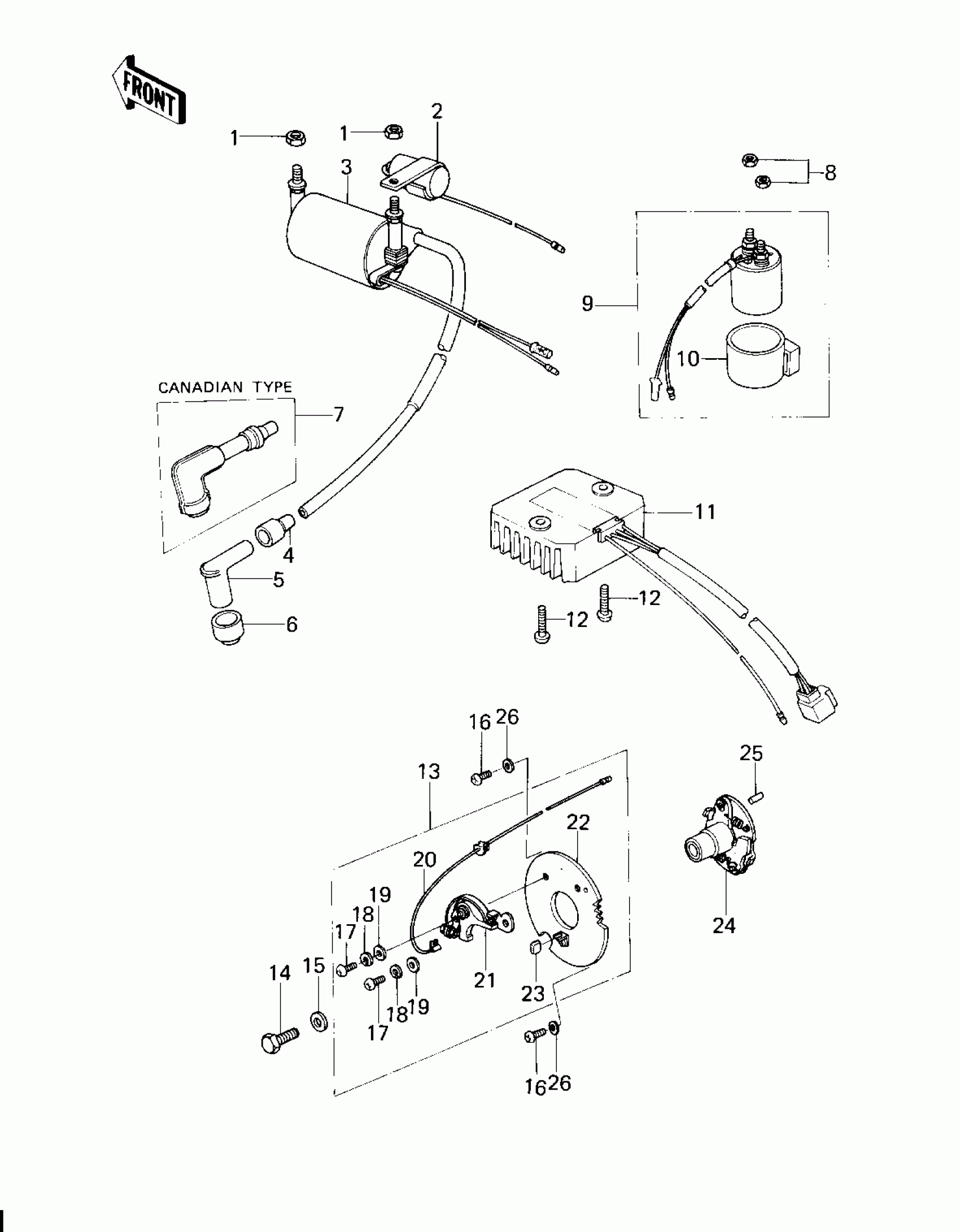

Kawasaki KZ200-A2 IGNITION/REGULATOR Diagram

#

Description

Price

1

NUT-HEX,6MM

311G0600

Unavailable

2

CONDENSER

21013-036

Unavailable

3

COIL,IGNITION

21121-093

Unavailable

4

GROMMET,HIGH TENSION

21132-005

Unavailable

5

CAP-SPARK PLUG,RTFM20

21130-1007

Unavailable

6

GROMMET,PLUG CAP

21131-004

Unavailable

7

CAP-ASSY-PLUG

21160-005

Unavailable

8

NUT-HEX,6MM

311G0600

Unavailable

9

SWITCH ASSY,MAGNETIC

21164-005

Unavailable

10

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

11

REGULATOR

21066-029

Unavailable

12

SCREW-PAN-CROS,6X14

220B0614

Unavailable

13

BREAKER ASSY, CONTACT

21135-013

Unavailable

14

BOLT,6X14

92003-221

Unavailable

15

WASHER,PLAIN

92022-323

Unavailable

16

SCREW PAN HEAD 6X10

220B0610

Unavailable

17

SCREW PAN HEAD 4X6

220B0406

Unavailable

18

WASHER SPRING 4MM

461F0400

Unavailable

19

WASHER PLAIN 4MM

410B0400

Unavailable

20

WIRING HARNESS,CONTAC

26001-1020

Unavailable

21

BREAKER,CONTACT

21008-1002

Unavailable

22

BASE,CONTACT BREAKER

21021-1001

Unavailable

23

BRUSH,OIL

21019-005

Unavailable

24

ADVANCER,AUTMATIC

21148-013

Unavailable

25

PIN DOWEL 3X8

551A0308

Unavailable

26

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable
