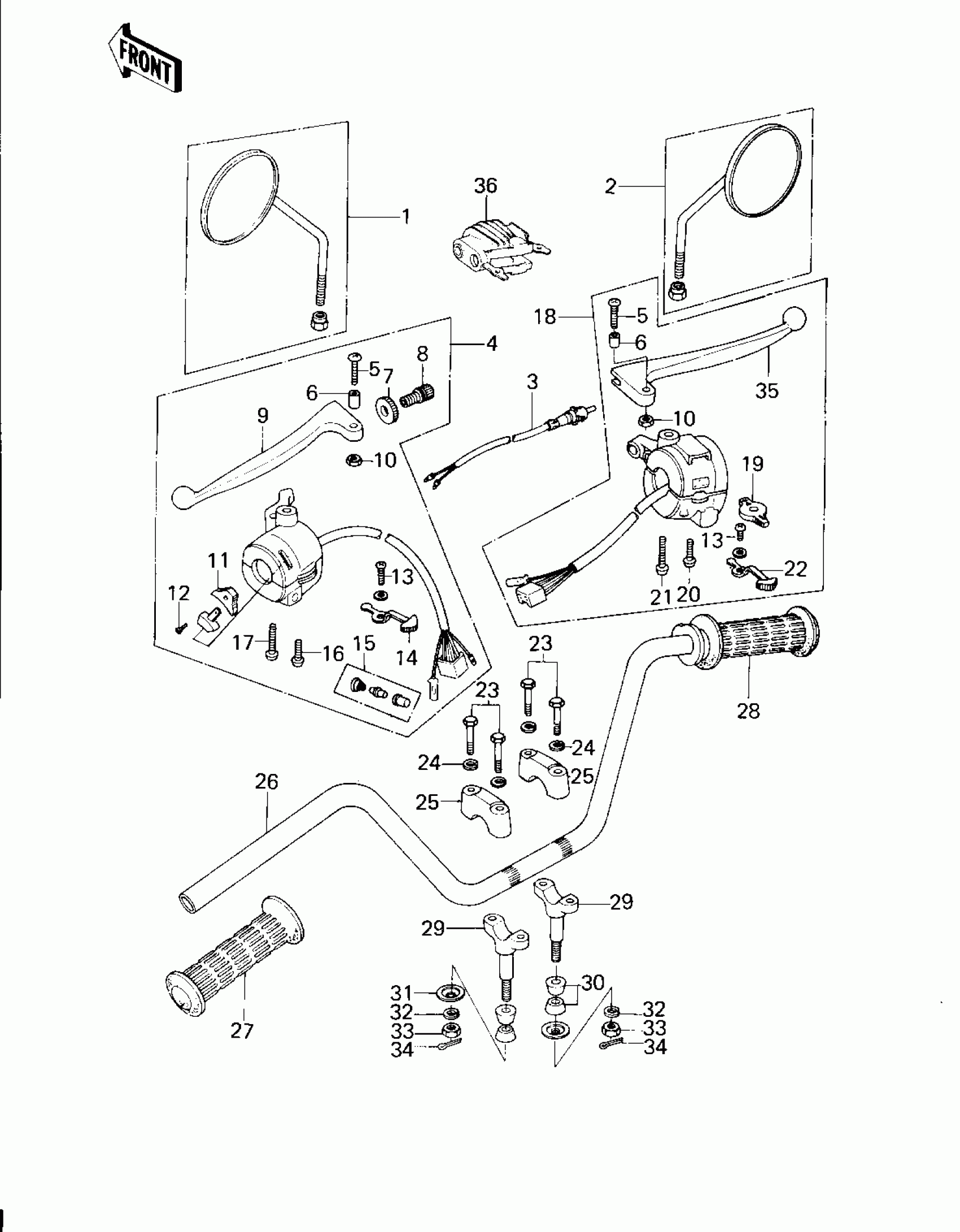

Kawasaki KZ200-A2 HANDLEBAR Diagram
#
1
REAR VIEW MIRROR,L.H
56003-019
Unavailable
2
REAR VIEW MIRROR,R.H
56002-029
Unavailable
3
SWITCH,FR BRAKE LAMP
27021-004
Unavailable
4
HOUSING ASSY,L.H CONT
46091-1004
Unavailable
5
SCREW PAN HEAD 5X22
220B0522
Unavailable
6
COLLAR,LEVER
92027-1042
Unavailable
7
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
8
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
9
LEVER,CLUTCH
46092-024
Unavailable
10
NUT,LOCK,5MM
92019-014
Unavailable
11
KNOB,LIGHTING SW L.H
46044-013
Unavailable
12
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
13
SCREW PAN HEAD 3X5
220B0305A
Unavailable
14
KNOB,SIGNAL LIGHT SW
92077-1003
Unavailable
15
SWITCH,PUSH BUTTON
27010-1009
Unavailable
16
SCREW-PAN-CROS,5X25
220B0525
Unavailable
17
SCREW,PAN HEAD,5X38
92009-1018
Unavailable
18
HOUSING ASSY,R.H CONT
46091-1006
Unavailable
18
HOUSING ASSY,R.H.CONT
46091-1007
Unavailable
18
HOUSING ASSY,R.H.CONT
46091-1007
Unavailable
19
KNOB,ENGINE STOP
92077-1002
Unavailable
20
SCREW PAN HEAD 5X30
220B0530
Unavailable
21
SCREW,PAN HEAD,5X48
92009-1017
Unavailable
22
KNOB,LIGHING SWITCH
46043-006
Unavailable
23
BOLT 8X38
92001-1405
Unavailable
24
WASHER SPRING 8MM
461F0800
Unavailable
25
HOLDER-HANDLE,UPP
46012-008
Unavailable
26
HANDLEBAR
46003-041
Unavailable
27
RUBBER,L.H GRIP
46075-028
Unavailable
28
GRIP ASSY,THROTTLE
46019-041
Unavailable
29
HOLDER-HANDLE,LWR
46012-010
Unavailable
30
DAMPER,HANDLE HOLDER
92075-039
Unavailable
31
PLATE,HANDLE HOLDER
46016-003
Unavailable
32
WASHER SPRING 10MM
461F1000
Unavailable
33
NUT-HEX-FINE,10MM
314B1000
Unavailable
34
PIN-SNAP,8MM
554A0800
Unavailable
35
LEVER,FRONT BRAKE
46058-019
Unavailable
36
DUST COVER
49016-1028
Unavailable
