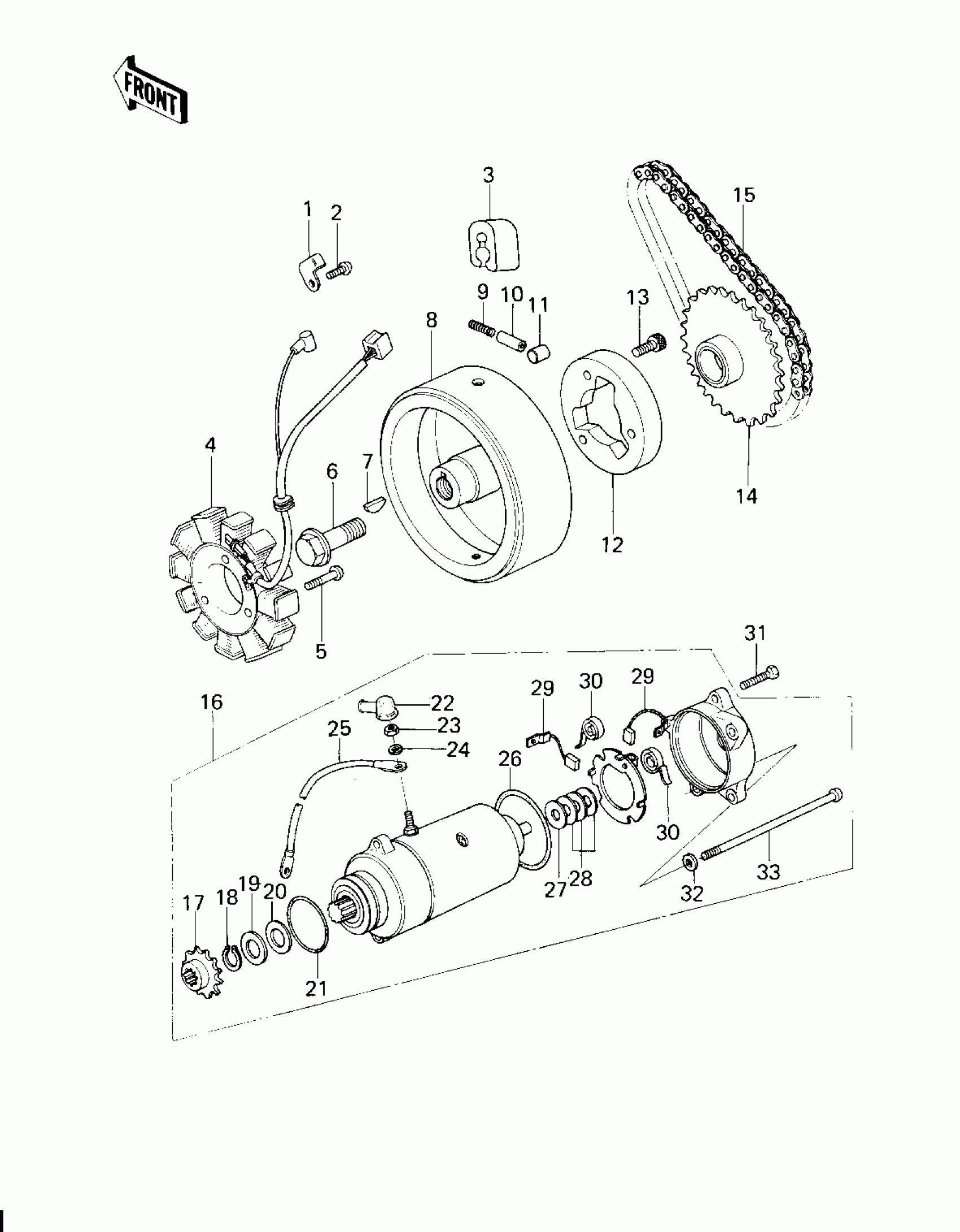

Kawasaki KZ200-A2 GENERATOR/STARTER MOTOR Diagram
#
1
CLAMP
92037-194
Unavailable
2
SCREW-PAN-CROS,6X14
220B0614
Unavailable
3
CLAMP,CABLE
92037-1049
Unavailable
3
CLAMP,CABLE
92037-1049
Unavailable
4
STATOR ASSY
21003-1002
Unavailable
5
SCREW PAN HEAD 6X25
220B0625
Unavailable
6
BOLT,10X40
92001-1201
Unavailable
7
KEY,WOODRUFF
92038-001
Unavailable
8
ROTOR
21007-1010
Unavailable
8
ROTOR
21007-1010
Unavailable
8
ROTOR
21007-1010
Unavailable
9
SPRING,COIL
92081-159
Unavailable
10
PIN
92043-132
Unavailable
11
ROLLER
92122-006
Unavailable
12
CLUTCH,STARTER
13194-008
Unavailable
13
BOLT-SOCKET,8X16
120P0816
Unavailable
14
SPROCKET,STARTER CLUT
12046-1107
Unavailable
15
CHAIN,DYNAMO
92057-1009
Unavailable
16
STARTER-ELECTRIC
21163-1036
Unavailable
17
SPROCKET,STARTER MOTO
12046-1004
Unavailable
18
RING-SNAP,13MM
92033-037
Unavailable
19
WASHER,PLAIN,14MM
21025-008
Unavailable
20
WASHER PLAIN 14MM
21025-009
Unavailable
21
RING-O,42.8MM
21027-005
Unavailable
22
CAP,STARTING MOTOR
21017-020
Unavailable
23
NUT 6MM
312B0600
Unavailable
24
WASHER SPRING 6MM
461F0600
Unavailable
25
WIRE-LEAD,STARTER MOT
26011-1201
Unavailable
26
"0" RING,62MM
21027-006
Unavailable
27
WASHER,THRUST,T=1.6
21025-010
Unavailable
28
WASHER,9.1X18X0.2
21025-011
Unavailable
29
BRUSH CARBON
21039-004
Unavailable
30
SPRING CARBON BRUSH
21040-004
Unavailable
31
BOLT,FLANGED,6X25
130G0625
Unavailable
32
WASHER SPRING 6MM
461F0600
Unavailable
33
SCREW,PAN HEAD,6X130
92001-1046
Unavailable
