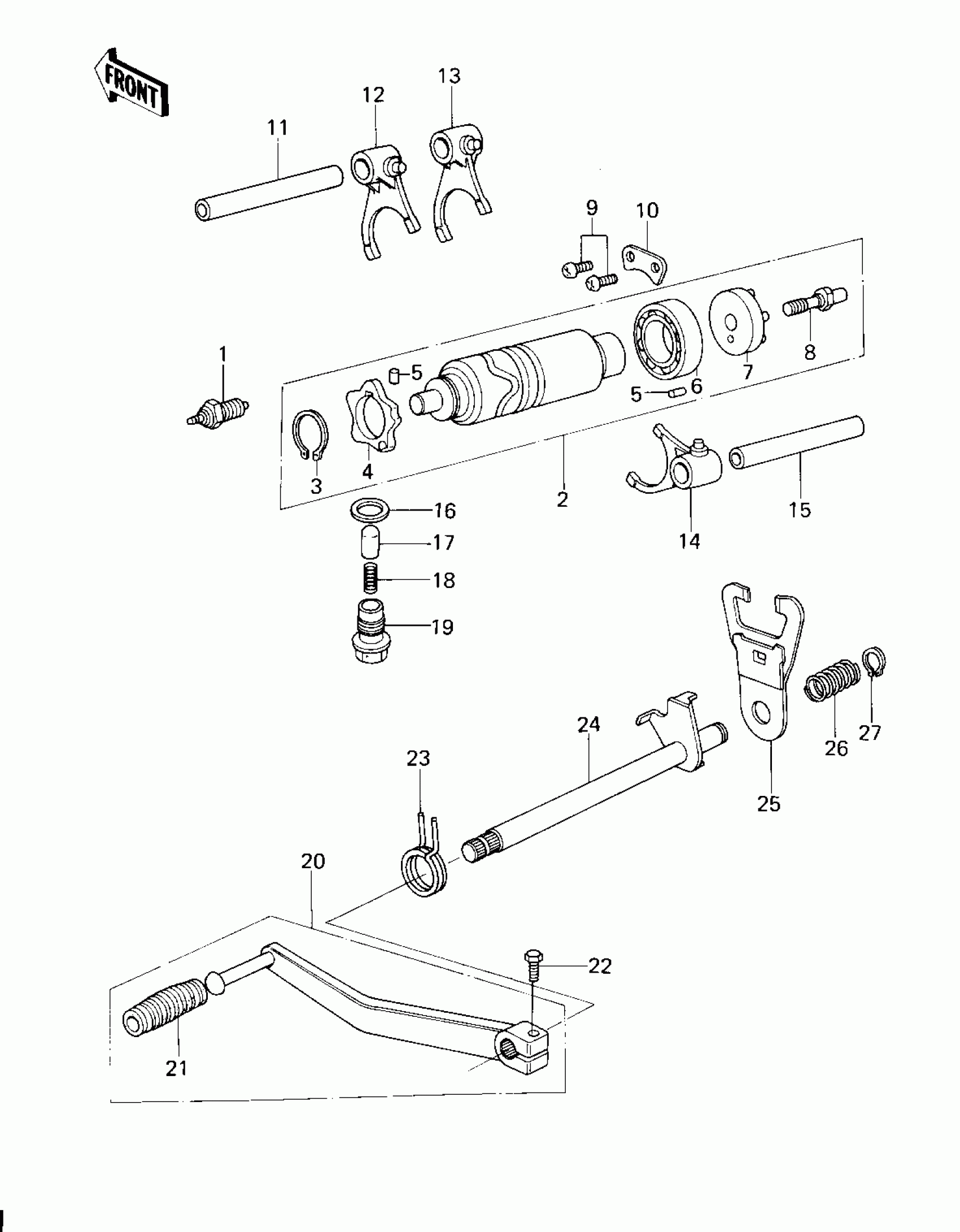

Kawasaki KZ200-A2 GEAR CHANGE MECHANISM Diagram

#

Description

Price

1

SWITCH,NEUTRAL

13151-5002

Unavailable

2

DRUM ASSY,GEAR SHIFT

13239-1036

Unavailable

3

CIRCLIP-TYPE-C,24MM

480J2400

Unavailable

4

DISC,CHANGE DRUM

13145-007

Unavailable

5

ROLLER,4X6

610A0406

Unavailable

6

BEARING-BALL,#6905

92045-036

Unavailable

7

PLATE,GEAR CHANGE

13142-019

Unavailable

8

BOLT

92001-166

Unavailable

9

SCREW-PAN-CROS,6X14

220B0614

Unavailable

10

PLATE,GEAR CHANGE DRUM

13169-014

Unavailable

11

ROD-SHIFT,L=93.7

49047-1003

Unavailable

12

SHIFT FORK,2ND&3RD

13140-074

Unavailable

13

SHIFT FORK,LOW

13140-073

Unavailable

14

SHIFT FORK,4TH&TOP

13140-075

Unavailable

15

ROD,SHIFT 71.7M/M

49047-1002

Unavailable

16

WASHER,16.5X23X2

92022-324

Unavailable

17

PIN,NEUTRAL POSITIONG

92043-131

Unavailable

18

SPRING

92081-112

Unavailable

19

BOLT,NEUTRAL POSITION

92001-182

Unavailable

20

PEDAL ASSY,GEAR CHANG

13242-020

Unavailable

21

DAMPER,CHANGE PEDAL

92160-1036

Unavailable

22

BOLT-UPSET,6X20

112G0620

Unavailable

23

SPRING,CHG PEDL RTRN

92083-028

Unavailable

24

LEVER ASSY,GEAR SHIFT

13161-1013

Unavailable

25

LEVER ASSY,GEAR SHIFT

13161-044

Unavailable

26

SPRING,COIL

92081-149

Unavailable

27

CIRCLIP-TYPE-C,13MM

480J1300

Unavailable
