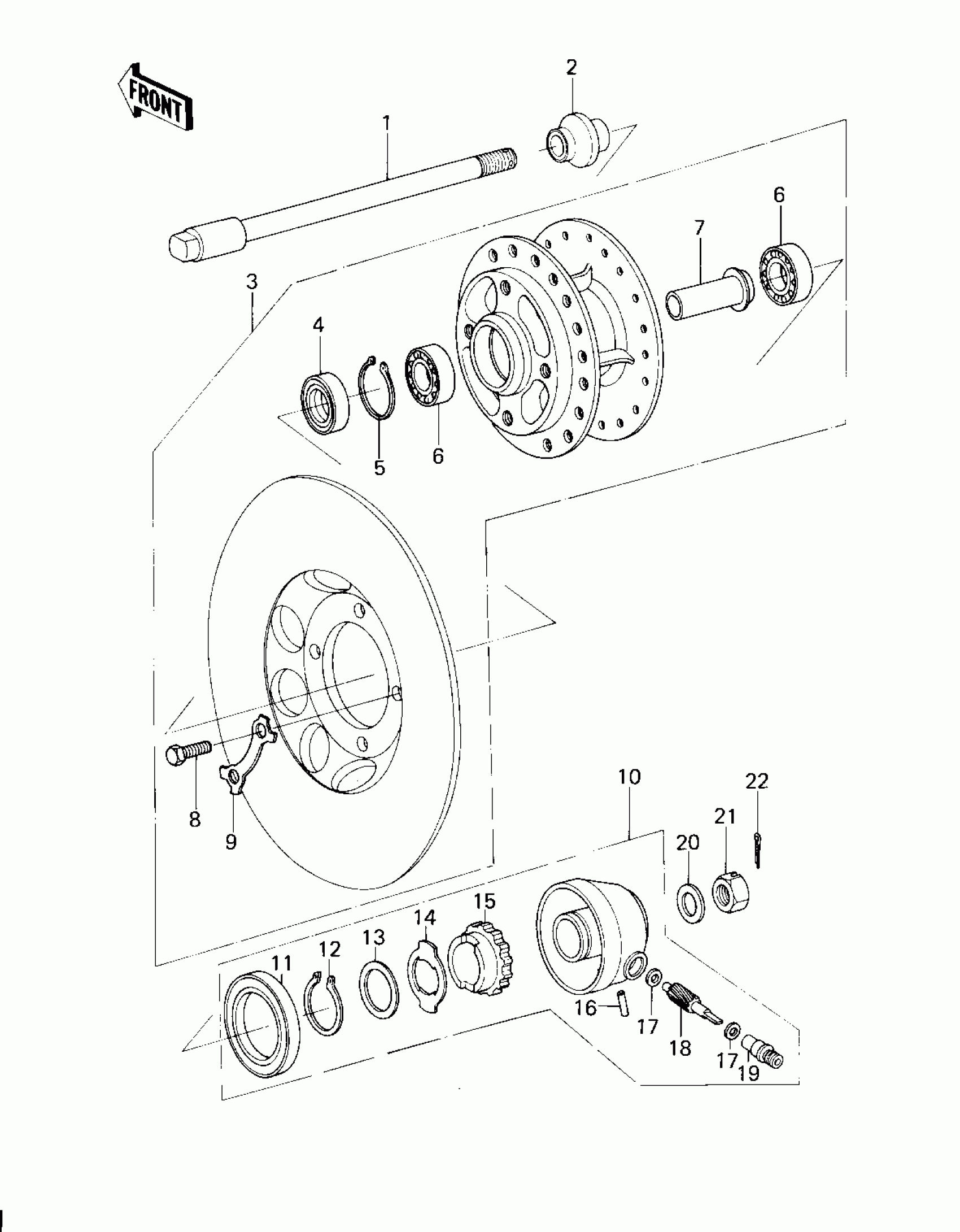

Kawasaki KZ200-A2 FRONT HUB Diagram
#
Description
Price
1
AXLE,FRONT
41068-052
Unavailable
2
COLLAR,AXLE
41069-037
Unavailable
3
DRUM-ASSY,FR BRK
41034-051
Unavailable
4
OIL SEAL,22X35X8
654A223508
Unavailable
5
CIRCLIP-TYPE-C,35MM
481J3500
Unavailable
6
BEARING-BALL,#6202C3
601B6202
Unavailable
7
COLLAR,FRONT HUB
41039-035
Unavailable
8
BOLT, HEX HEAD, 8X25
92001-141
Unavailable
9
WASHER,LOCK
92088-029
Unavailable
10
GEAR BOX ASSY
41078-013
Unavailable
11
OIL SEAL
654A425509
Unavailable
12
CIRCLIP-TYPE-C,22MM
480J2200
Unavailable
13
WASHER THRUST
41065-006
Unavailable
14
RECEIVER,SPEED.GEAR
41064-016
Unavailable
15
GEAR,SPEEDOMETER
41059-028
Unavailable
16
PIN,SPRING
41082-001
Unavailable
17
WASHER,5.1X9X0.4
41063-001
Unavailable
18
GEAR-METER SCREW,8T
41060-015
Unavailable
19
BUSHING,SPEEDOMETER CABLE
41062-005
Unavailable
20
WASHER-PLAIN-SMALL,14MM
410B1400
Unavailable
21
NUT,CASTLE,14MM
42045-020
Unavailable
22
PIN-COTTER,3.0X25
550D3025
Unavailable
