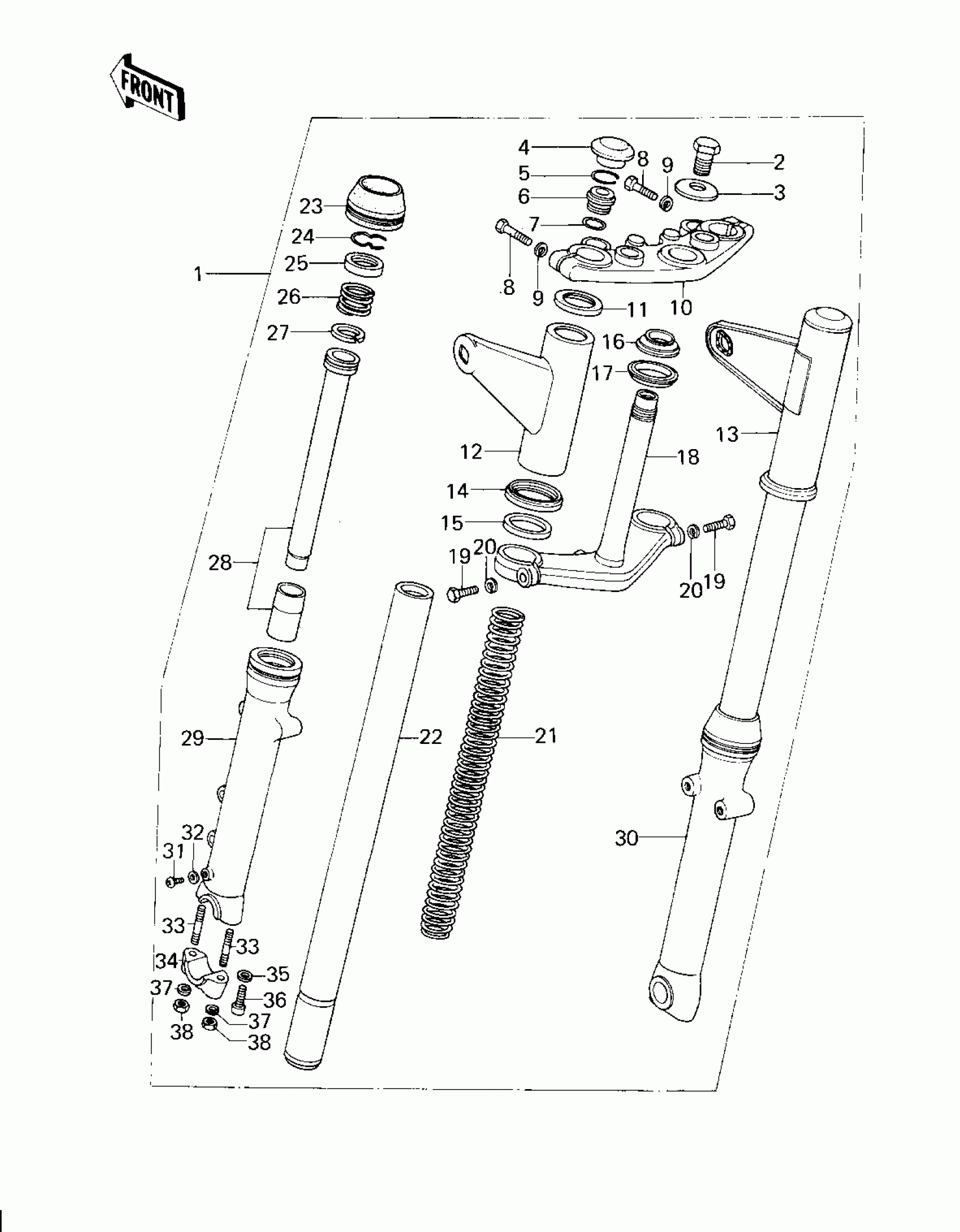

Kawasaki KZ200-A2 FRONT FORK Diagram
#
1
FORK-FRONT
44001-202
Unavailable
2
BOLT,STEERING STEM
44041-072
Unavailable
3
WASHER,STEERING STEM
44043-056
Unavailable
4
CAP,FORK TOP
44062-008
Unavailable
5
RING-SNAP
44044-023
Unavailable
6
SEAT-FORK SPRING
44029-022
Unavailable
7
RING-O
44046-025
Unavailable
8
BOLT,8X40
92001-1063
Unavailable
9
WASHER SPRING 8MM
461F0800
Unavailable
10
HEAD,STEERING STEM
44039-078
Unavailable
11
GUIDE,FORK COVER,A
44064-029
Unavailable
12
COVER,L.H FORK
44033-087
Unavailable
13
COVER,R.H FORK
44034-087
Unavailable
14
GUIDE,FORK COVER,B
44064-028
Unavailable
15
GASKET,FORK COVER
44045-049
Unavailable
16
RACE,STEERING STEM BEARING
92047-010
Unavailable
17
SEAL,STEERING STEM
44010-027
Unavailable
18
STEM,STEERING
44037-110
Unavailable
19
BOLT, HEX HEAD,10X30
44041-079
Unavailable
20
WASHER SPRING 10MM
461F1000
Unavailable
21
SPRING,FORK
44026-075
Unavailable
22
TUBE,FORK INNER
44013-060
Unavailable
23
DUST SHIELD,FORK
44010-037
Unavailable
24
RING-SNAP,45MM
44044-020
Unavailable
25
OIL SEAL,FORK
44009-028
Unavailable
26
SPRING-FRONT FORK,REBOUND
44026-060
Unavailable
27
RING,FORK PISTON
44025-006
Unavailable
28
CYLINDER-FORK
44022-041
Unavailable
29
TUBE,LH,FORK OUTER
44005-068
Unavailable
30
TUBE,RH,FORK OUTER
44006-066
Unavailable
31
SCREW PAN HEAD 4X6
220B0406
Unavailable
32
GASKET,FORK DRAIN PLUG
44045-046
Unavailable
33
BOLT-STUD,8X30
172G0830
Unavailable
34
HOLDER,FRONT AXLE
44063-016
Unavailable
35
GASKET,FORK CYLINDER BOLT
44045-051
Unavailable
36
BOLT,FORK CYLINDER
44041-078
Unavailable
37
WASHER SPRING 8MM
461F0800
Unavailable
38
NUT,LOCK,8MM
92017-013
Unavailable
