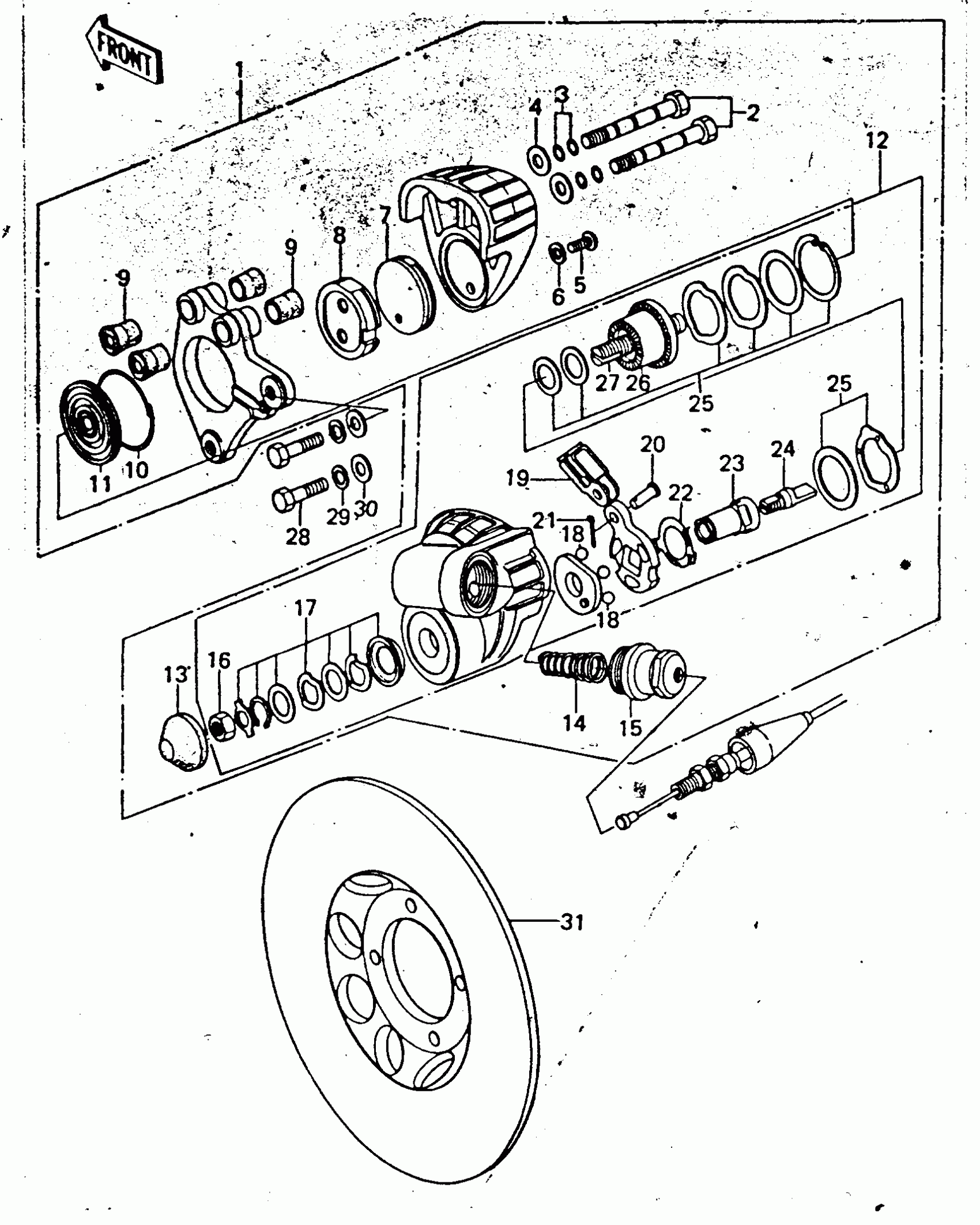

Kawasaki KZ200-A2 FRONT BRAKE Diagram
#
Description
Price
1
CALIPER ASSY,FRONT
43041-1030
Unavailable
1
CALIPER ASSY,FRONT
43041-1030
Unavailable
2
BOLT
43045-1001
Unavailable
3
BRACKET-BRAKE HOSE
43063-001
Unavailable
4
WASHER,PLAIN
92022-1001
Unavailable
5
SCREW PAN HEAD 6X10
220B0610
Unavailable
6
WASHER SPRING 6MM
461F0600
Unavailable
7
PAD B
43050-1010
Unavailable
8
PAD A
43050-1009
Unavailable
9
DUST SEAL-SHAFT
43052-002
Unavailable
10
CIRCLIP
92033-1001
Unavailable
11
BOOT
49006-1030
Unavailable
12
CALIPER A
43042-1025
Unavailable
12
CALIPER A
43042-1025
Unavailable
13
BOOT,OUTER
49006-1029
Unavailable
14
SPRING,RETURN
43018-1001
Unavailable
15
PLUG
92066-1001
Unavailable
16
NUT-HEX-SMALL,8MM
318B0800
Unavailable
17
REPAIR SET,CALIPER
99996-5001
Unavailable
18
BALL-STEEL,1/4
600A0800
Unavailable
19
LEVER
11034-1439
Unavailable
20
PIN
92043-1058
Unavailable
21
PIN COTTER 1.6X10
550D1610
Unavailable
22
STOPPER
43022-1004
Unavailable
23
SHAFT
43045-1003
Unavailable
24
STOPPER
43022-1005
Unavailable
25
REPAIR SET,CALIPER
99996-5002
Unavailable
26
RATCHET
13078-1002
Unavailable
27
ROD
46102-1003
Unavailable
28
BOLT
92007-032
Unavailable
29
WASHER SPRING 10MM
461F1000
Unavailable
30
WASHER PLAIN 10MM
410B1000
Unavailable
31
DISC PLATE,FROM BRAKE
41080-013
Unavailable
