1979 Kawasaki KZ200-A2 Frame/frame Fittings Diagram

← All diagrams

Find the part on the Frame/frame Fittings diagram for your 1979 Kawasaki KZ200-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

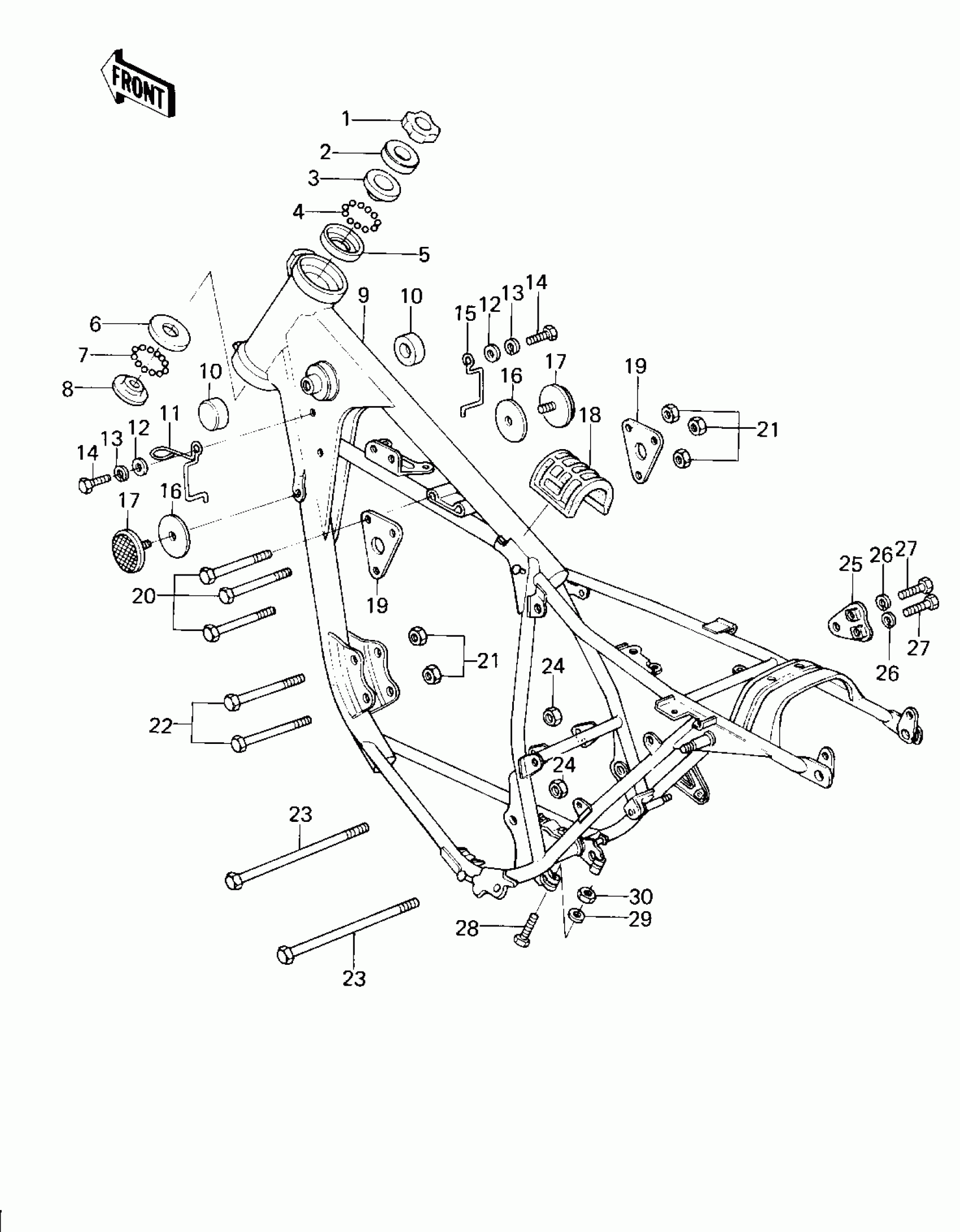

1979 Kawasaki KZ200-A2 Frame/frame Fittings Diagram

#

Description
Price
Status
Order Qty

1

NUT,STEERING LOCK,25MM

92090-022

Out of stock

2

CAP,STEERING STEM

46098-012

Out of stock

3

RACE,STEERING STEM BEARING

92047-014

Out of stock

4

BALL-STEEL,3/16

600A0600

Out of stock

5

RACE,STEERING STEM BEARING

92048-009

Out of stock

6

RACE,STEERING STEM BEARING,LWR

92048-005

Out of stock

7

BALL-STEEL,1/4

600A0800

Out of stock

8

RACE,STEERING STEM BEARING

92047-010

Out of stock

9

FRAME

32002-165

Out of stock

10

DAMPER,FUEL TANK

92075-101

Out of stock

11

CLAMP

92037-202

Out of stock

12

WASHER PLAIN 6MM

411B0600

Out of stock

13

WASHER SPRING 6MM

461F0600

Out of stock

14

BOLT-UPSET,6X12

112G0612

Out of stock

15

CLAMP

92037-203

Out of stock

16

DAMPER,REFLECTOR

92094-011

Out of stock

17

REFLECTOR-REFLEX,FR

28012-016

Out of stock

18

DAMPER,FUEL TANK

92075-284

Out of stock

19

PLATE,ENGINE HEAD

32030-069

Out of stock

20

BOLT,FLANGED,8X60

92001-1581

Out of stock

21

NUT,LOCK,8MM

92017-013

Out of stock

22

BOLT,HEX HEAD,8X65

110B0865

Out of stock

23

BOLT,FLANGED,10X110

92001-1602

Out of stock

24

NUT,LOCK,10MM

92019-021

Out of stock

25

BRACKET,ENGINE

32029-1008

Out of stock

26

WASHER SPRING 8MM

461F0800

Out of stock

27

BOLT-SMALL-UPSET,8X16

115G0816

Out of stock

28

BOLT 6X35

110R0635

Out of stock

29

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

30

NUT,LOCK 6MM

92017-014

Out of stock
