1979 Kawasaki KZ200-A2 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1979 Kawasaki KZ200-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

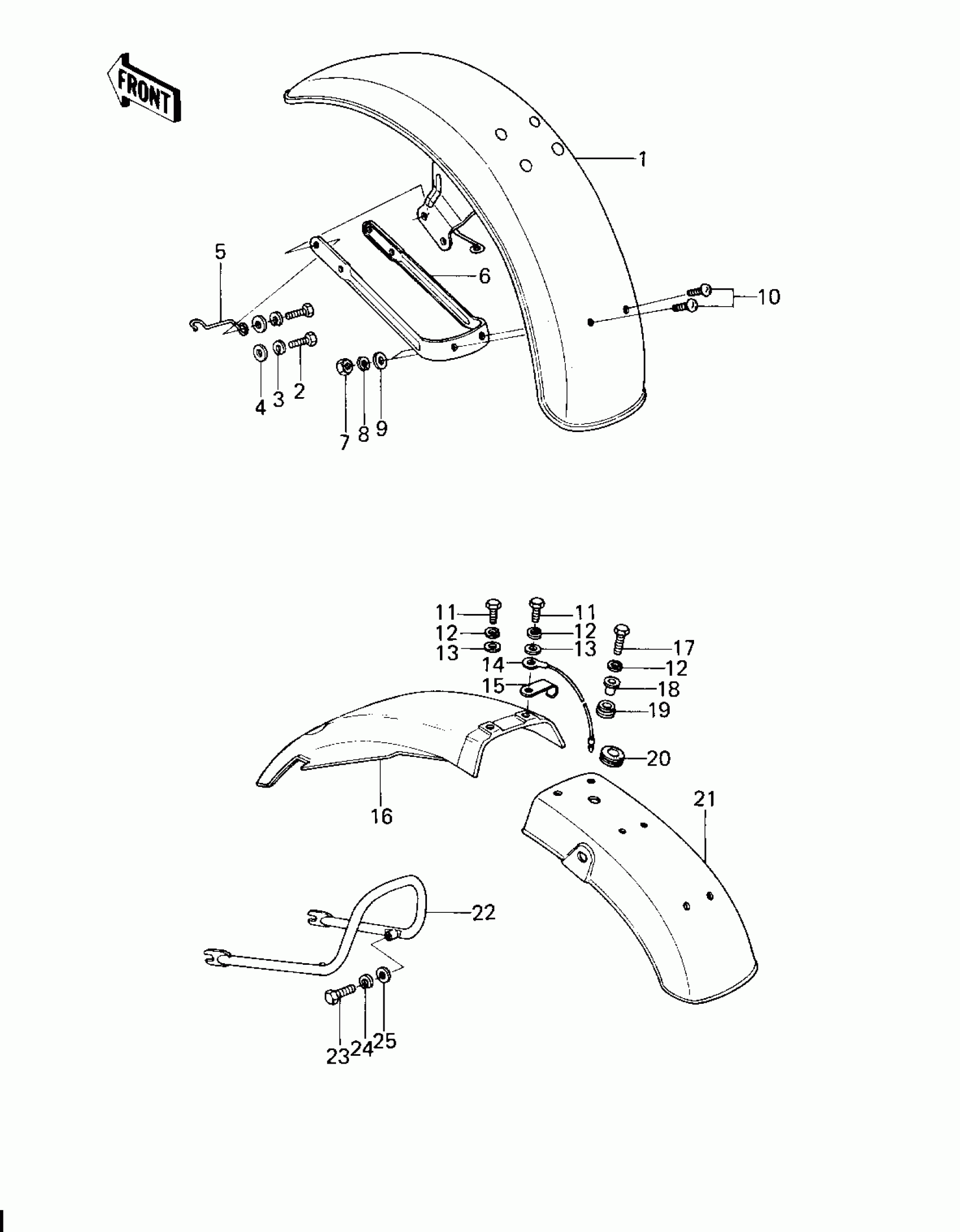

1979 Kawasaki KZ200-A2 Fenders Diagram

#

Description
Price
Status
Order Qty

1

FENDER-FR

35001-5001

$221.29

In stock

2

BOLT-SMALL-UPSET,8X18

115G0818

Out of stock

3

WASHER SPRING 8MM

461F0800

Out of stock

4

WASHER PLAIN 8MM

411B0800

Out of stock

5

CLAMP,CABLE

92037-204

Out of stock

6

STAY,FRONT FENDER

35010-031

Out of stock

7

NUT 6MM

312B0600

Out of stock

8

WASHER SPRING 6MM

461F0600

Out of stock

9

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

10

SCREW PAN HEAD 6X12

220E0612

Out of stock

11

BOLT-UPSET,6X16

112G0616

Out of stock

12

WASHER SPRING 6MM

461F0600

Out of stock

13

WASHER,7X24X1.6

92022-228

Out of stock

14

WIRE,GROUND

26011-082

Out of stock

15

CLAMP

92037-085

Out of stock

16

FENDER-RR

35022-156

Out of stock

17

BOLT-UPSET

112G0625

Out of stock

18

COLLAR

92027-194

Out of stock

19

DAMPER

92075-277

Out of stock

20

GROMMET HARNESS 10MM

92071-010

Out of stock

21

FENDER-RR

35022-157

Out of stock

22

STAY,REAR FENDER

35032-041

Out of stock

23

BOLT-SMALL-UPSET,8X16

115G0816

Out of stock

24

WASHER SPRING 8MM

461F0800

Out of stock

05

WASHER PLAIN 8MM

411B0800

Out of stock
