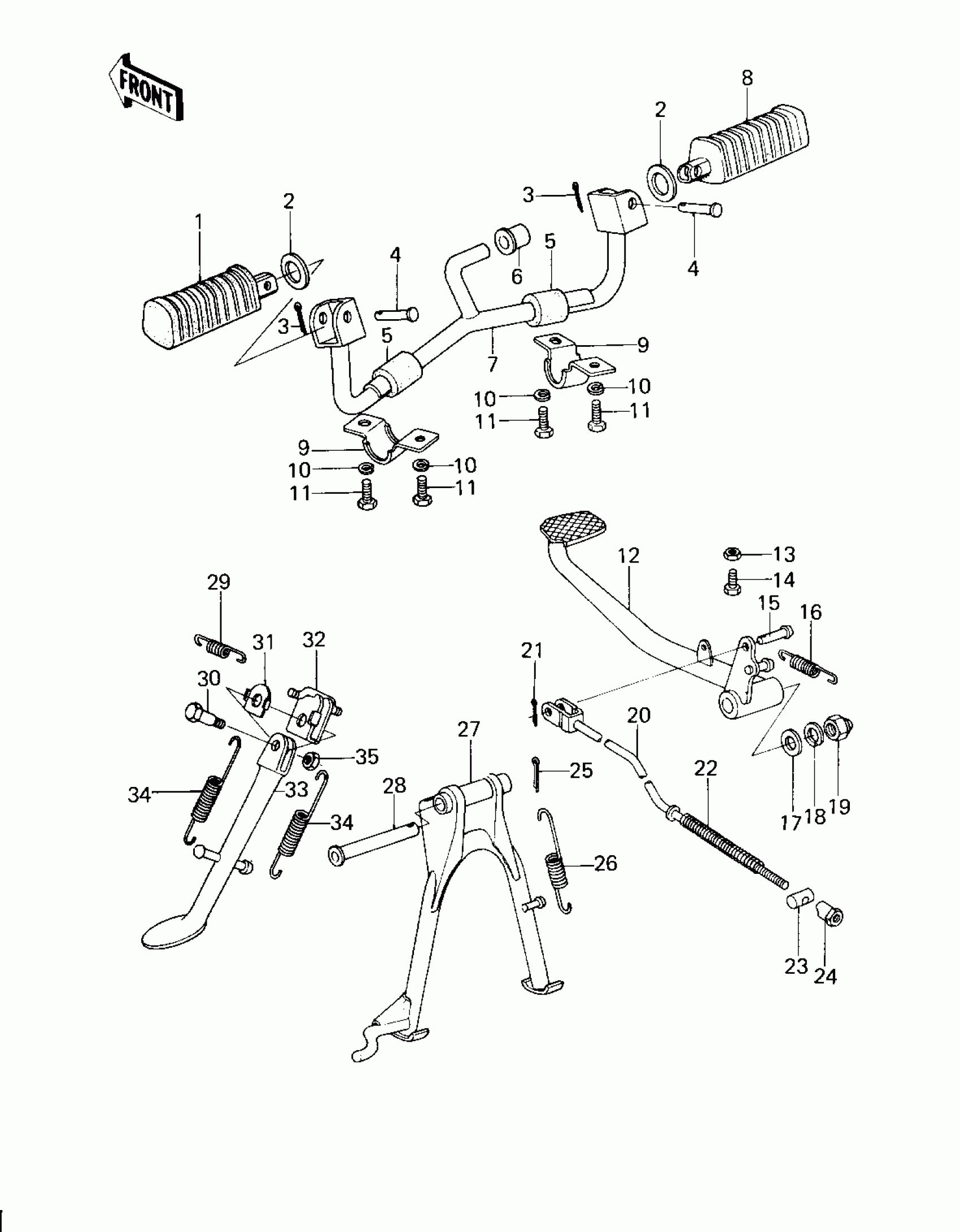

Kawasaki KZ200-A2 FOOTRESTS/STANDS/BRAKE PEDAL Diagram
#
1
STEP-ASSY
34027-1103
Unavailable
2
WASHER,25X36X2.3
92022-250
Unavailable
3
PIN COTTER 2.5X16
550D2516
Unavailable
4
PIN,8X31
92043-080
Unavailable
5
DAMPER,RUBBER
92075-306
Unavailable
6
DAMPER,RUBBER
92075-1029
Unavailable
6
DAMPER,RUBBER
92075-1029
Unavailable
7
BAR,FOOTREST
34004-008
Unavailable
8
STEP-ASSY
34027-1103
Unavailable
9
HOLDER,FOOTREST
13091-1003
Unavailable
10
WASHER SPRING 8MM
461F0800
Unavailable
11
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
12
PEDAL,BRAKE
43001-077
Unavailable
13
NUT 6MM
311B0600
Unavailable
14
BOLT-UPSET
112G0625
Unavailable
15
PIN,BRAKE ROD FITTING
92043-090
Unavailable
16
SPRING,BRAKE PEDAL
43005-029
Unavailable
17
WASHER,8.5X20X1.6
92022-1561
Unavailable
18
WASHER SPRING 8MM
461F0800
Unavailable
19
NUT,CAP AND LOCK,8MM
92019-013
Unavailable
20
ROD,BRAKE
43011-028
Unavailable
21
PIN COTTER 2.0X15
550D2015
Unavailable
22
SPRING,BRAKE ROD
43012-001
Unavailable
23
PIN,BRAKE ROD
92043-039
Unavailable
24
NUT,BRAKE ROD
92015-042
Unavailable
25
PIN-COTTER,3.0X30
550D3030
Unavailable
26
SPRING,STAND,CNT
34023-016
Unavailable
27
STAND-MAIN
34011-050
Unavailable
28
SHAFT MAIN STAND
34019-011
Unavailable
29
SPRING,SIDE STAND
34025-011
Unavailable
30
BOLT,SIDE STAND FITNG
92003-226
Unavailable
31
WASHER,LOCK
92024-078
Unavailable
32
STOPPER,SIDE STAND
32085-1009
Unavailable
33
STAND-SIDE
34024-070
Unavailable
34
SPRING,SIDE STAND
34025-010
Unavailable
35
NUT,LOCK,10MM
92019-021
Unavailable
