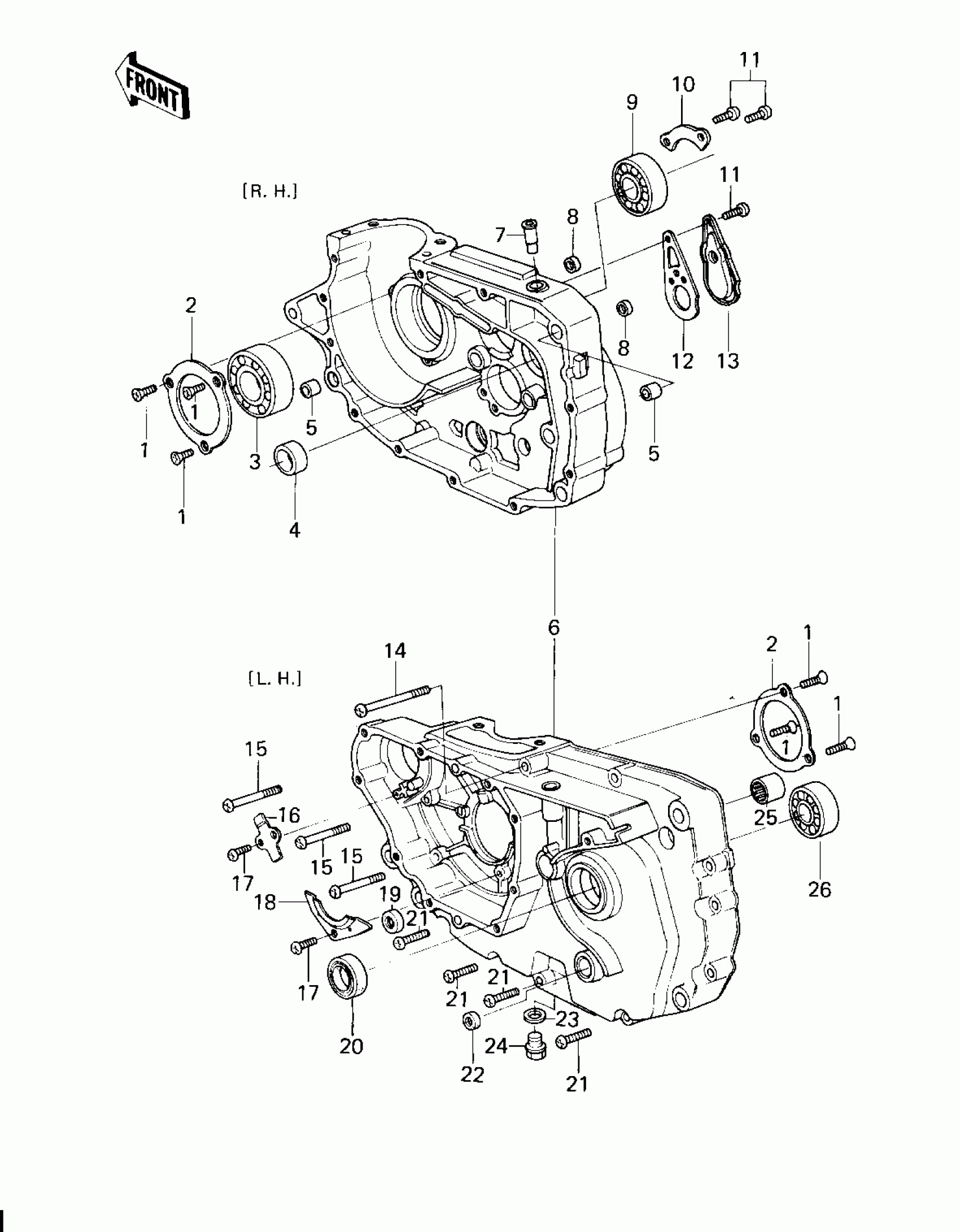

Kawasaki KZ200-A2 CRANKCASE Diagram
#
Description
Price
1
SCREW-CSK-CROS,6X16
221B0616
Unavailable
2
PLATE-POSITION,CRANK BEARING
14014-1004
Unavailable
2
PLATE-POSITION,CRANK BEARING
14014-1004
Unavailable
3
BEARING-BALL,#6306
92045-037
Unavailable
4
BUSHING,23X30X13
92028-132
Unavailable
5
PIN,DOWEL,14X14
92042-032
Unavailable
6
SET-CRANKCASE
14001-5083
Unavailable
7
FITTING,BREATHER
14067-006
Unavailable
8
PLUG
92066-1282
Unavailable
9
BEARING,BALL#6006
92045-038
Unavailable
10
PLATE-POSITION
14014-037
Unavailable
11
SCREW-PAN-CROS,6X14
220B0614
Unavailable
12
GASKET
16079-002
Unavailable
13
CAP
16078-002
Unavailable
14
SCREW-PAN-CROS,6X75
220B0675
Unavailable
15
SCREW PAN HEAD 6X55
220B0655
Unavailable
16
PLATE
13169-1010
Unavailable
17
SCREW-PAN-CROS,6X14
220B0614
Unavailable
18
PLATE,POSITIONING
14014-035
Unavailable
19
OIL SEAL,PUSH ROD
92050-077
Unavailable
20
SEAL-OIL,TC32457
92049-1159
Unavailable
21
SCREW PAN HEAD 6X30
220B0630
Unavailable
22
SEAL-OIL
92050-082
Unavailable
23
GASKET,12X22X2
92065-097
Unavailable
24
PLUG,OIL DRAIN,12X15
92066-1174
Unavailable
25
BRG,NEEDLE,HMK1515B
92046-060
Unavailable
26
BEARING-BALL,#6205C3
601B6205
Unavailable
