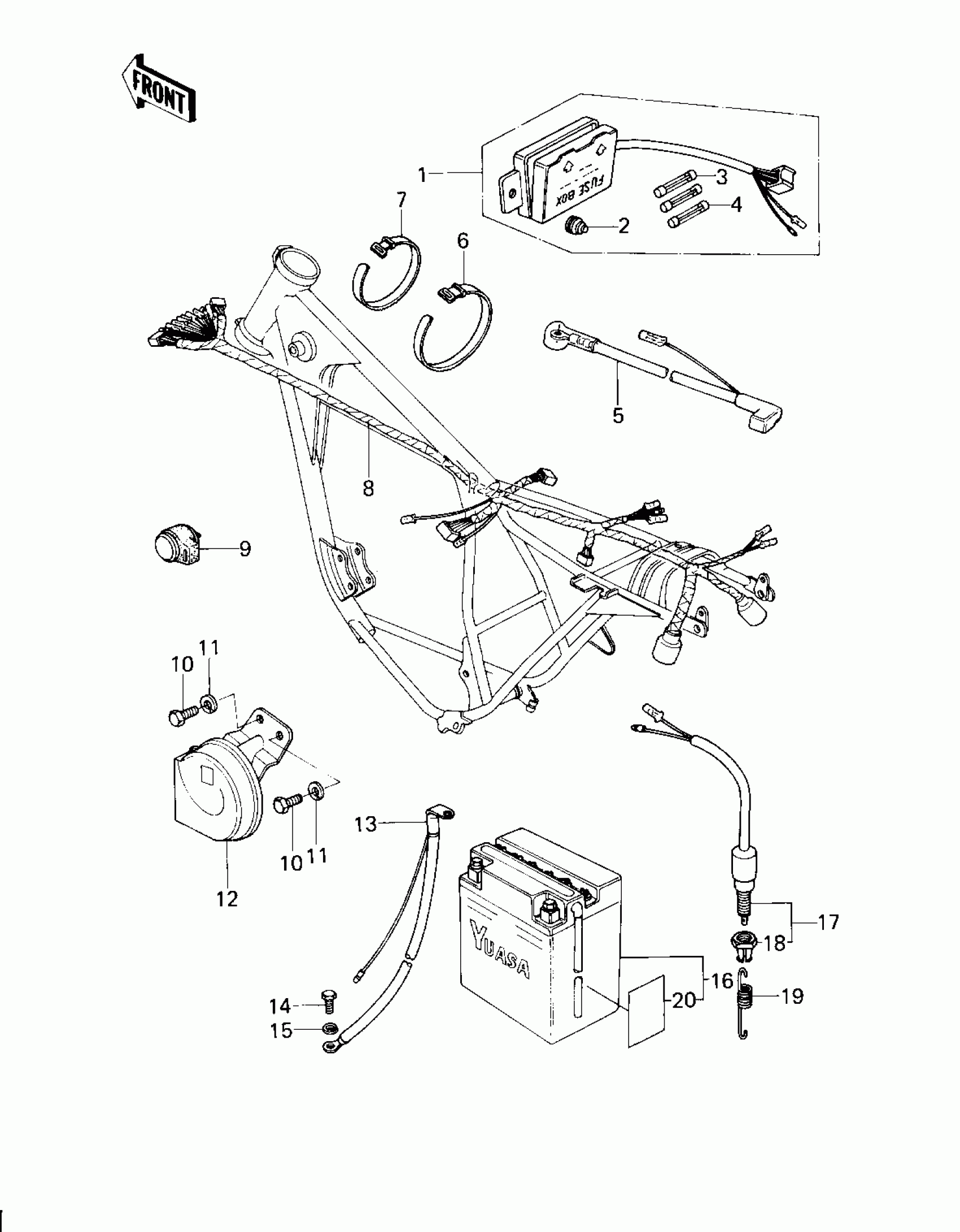

Kawasaki KZ200-A2 CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description

Price

1

FUSE-ASSY

26004-035

Unavailable

2

DAMPER,FUSE

92075-279

Unavailable

3

FUSE,20A,L=25

26006-005

Unavailable

4

FUSE,10A,L=25

26006-003

Unavailable

5

WIRE,MAGNETIC SWITCH

26010-051

Unavailable

6

BAND,L=186

92072-056

Unavailable

7

BAND,L=123

92072-030

Unavailable

8

WIRING HARNESS,MAIN

26001-1158

Unavailable

9

RELAY-ASSY,TURN SIGNAL

27002-011

Unavailable

10

BOLT-UPSET,6X12

112G0612

Unavailable

11

WASHER SPRING 6MM

461F0600

Unavailable

12

HORN ASSY

27003-078

Unavailable

13

WIRE-LEAD,BATTERY GROUND

26010-052

Unavailable

14

BOLT-UPSET,6X12

112G0612

Unavailable

15

WASHER SPRING 6MM

461F0600

Unavailable

16

YUA BAT 12N10-3B

26012-050

Unavailable

17

SWITCH,BRAKE LAMP

27010-025

Unavailable

18

NUT,BRAKE LAMP SWITCH

27037-001

Unavailable

19

SPRING,BRAKE LAMP SWITCH

27011-017

Unavailable

20

LABEL-WARNING,BATTERY

56040-1036

Unavailable
