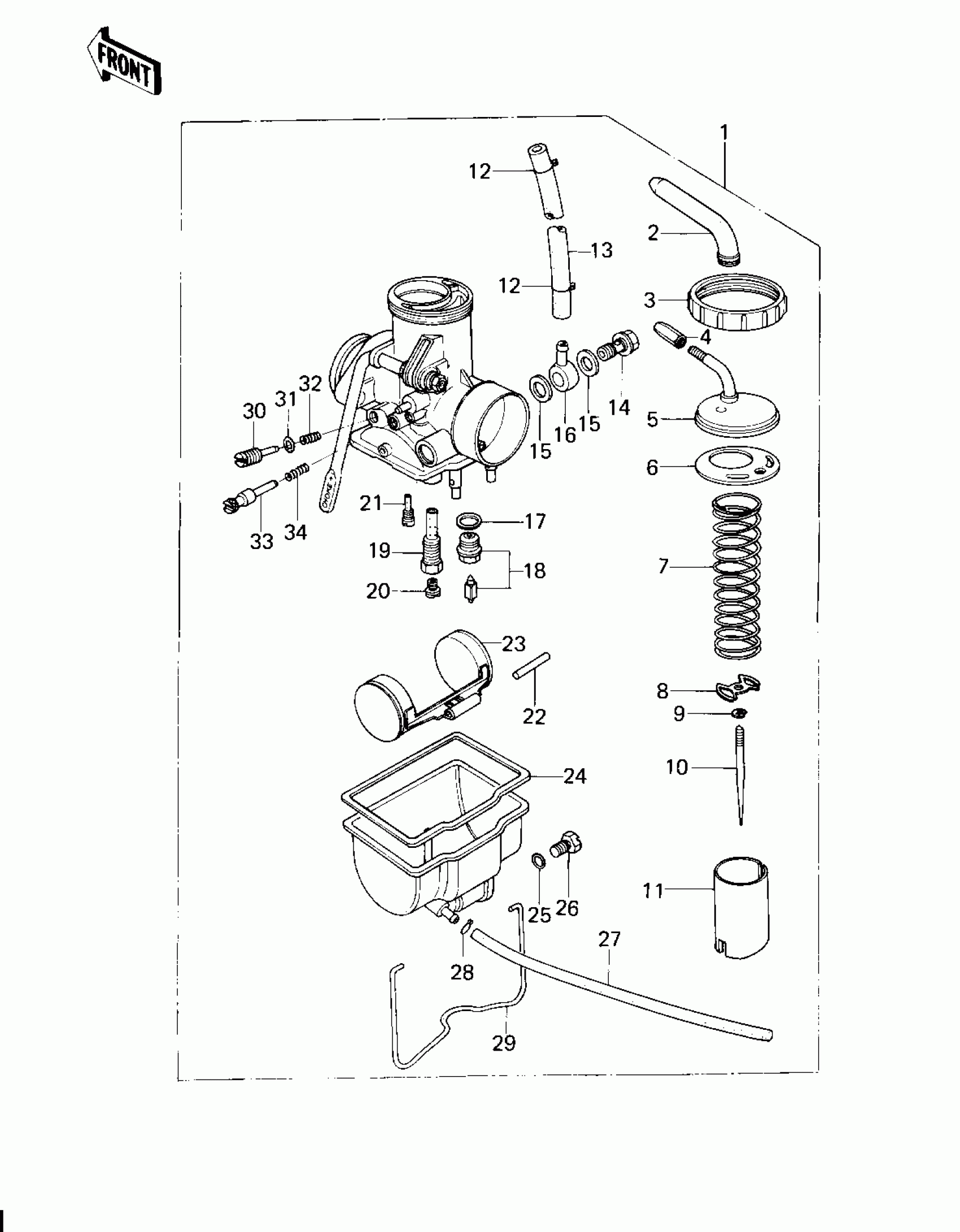

Kawasaki KZ200-A2 CARBURETOR Diagram
#
1
CARBURETOR ASSY
16001-1068
Unavailable
1
CARBURETOR ASSY
16001-1068
Unavailable
1
CARBURETOR ASSY
16001-1068
Unavailable
1
CARBURETOR ASSY
16001-1027
Unavailable
2
CAP,CABLE ADJUSTER
49006-1007
Unavailable
3
CAP,MIXING CHAMBER
16004-1001
Unavailable
4
ADJUSTER,CABLE
16002-1002
Unavailable
5
TOP,MIXING CHAMBER
16005-1002
Unavailable
6
GASKET,MIXING CHAMBER
11009-1026
Unavailable
7
SPRING,THROTTLE VALVE
92081-1034
Unavailable
8
SEAT,THROTTLE VAL SPR
16007-1003
Unavailable
9
CIRCLIP,JET NEEDLE
92037-1039
Unavailable
10
JET NEEDLE
16009-1005
Unavailable
10
JET NEEDLE
16009-1025
Unavailable
11
VALVE,THROTTLE
16025-1003
Unavailable
11
VALVE,THRR,0.6/1.2
16025-1015
Unavailable
12
CLAMP,FUEL HOSE
92037-1040
Unavailable
13
HOSE,FUEL
92059-1014
Unavailable
14
BOLT,BANJO
92001-1051
Unavailable
15
WASHER,PLAIN
92022-1021
Unavailable
16
CONNECTOR,BANJO
92005-1002
Unavailable
17
GASKET,FLOAT VAV SEAT
11009-1027
Unavailable
18
FLOAT VALVE ASSY
16030-1002
Unavailable
19
HOLDER,NEEDLE JET
16065-1006
Unavailable
19
HOLDER,NEEDLE JET
16065-1008
Unavailable
20
JET-MAIN,#105
92063-1009
Unavailable
20
JET-MAIN,#110
92063-1114
Unavailable
20
JET-MAIN,#100
92063-1008
Unavailable
20
JET-MAIN,#115
92063-1118
Unavailable
20
MAIN JET,#120
92063-1011
Unavailable
21
PILOT JET,#38
92064-1002
Unavailable
22
PIN,FLOAT
92043-1011
Unavailable
23
FLOAT
16031-1003
Unavailable
24
GASKET,FLOAT CHAMBER
11009-1028
Unavailable
25
"O" RING,DRAIN SCREW
92055-1003
Unavailable
26
SCREW,DRAIN
92009-1003
Unavailable
27
TUBE,3.5X6.5X330
92059-111
Unavailable
27
HOSE,FUEL OVERFLOW
92059-1046
Unavailable
28
CLAMP,TUBE
92037-1142
Unavailable
29
CLIP,FLOAT CHAMB FITT
92037-1041
Unavailable
30
SCREW,PILOT AIR ADJUS
16014-1003
Unavailable
31
"O" RING
92055-1013
Unavailable
32
SPRING,PILOT AIR ADJ
92081-1035
Unavailable
33
SCREW,THROTTLE STOP
16021-1004
Unavailable
34
SPRING,THROT STOP SCR
92081-1036
Unavailable
