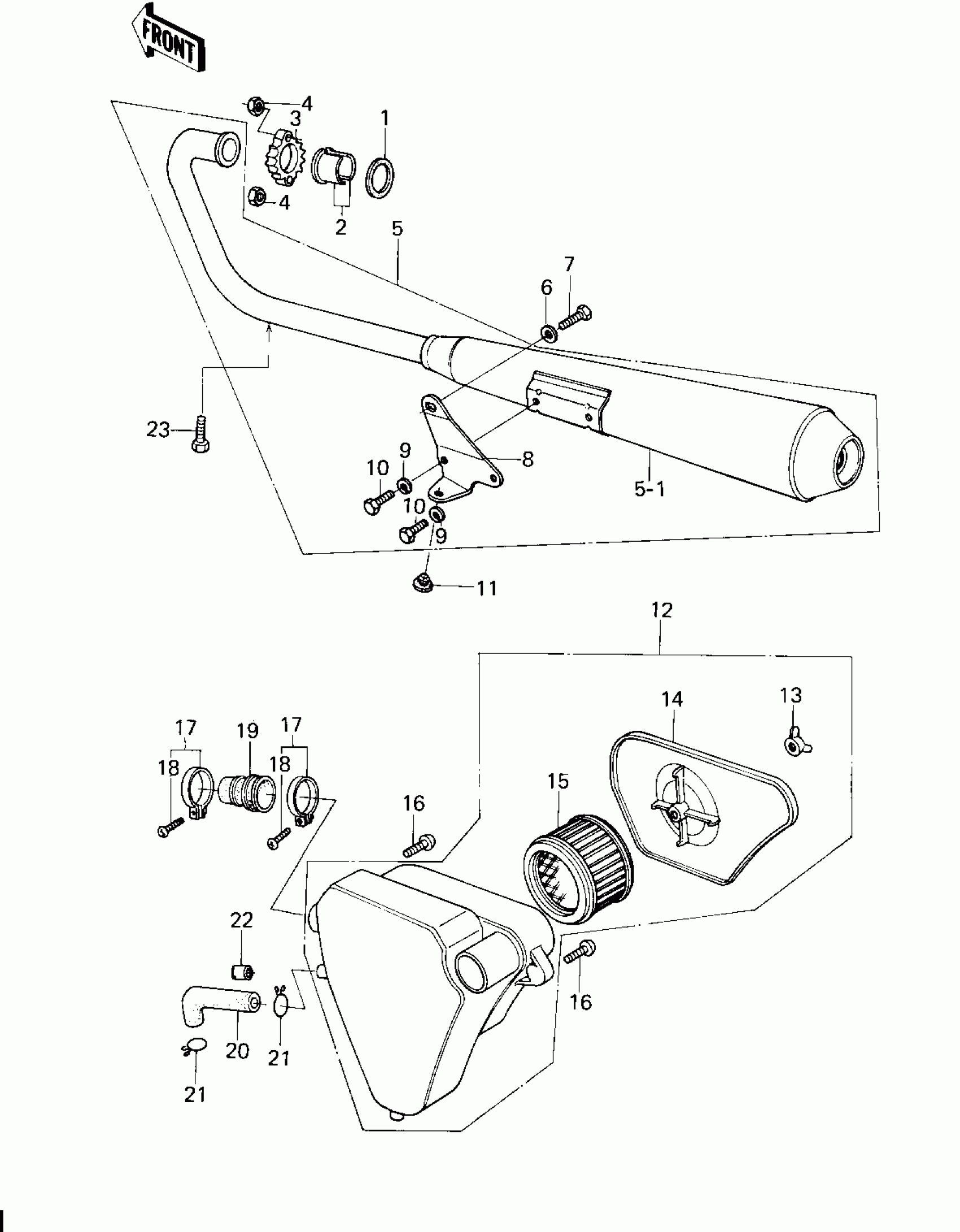

Kawasaki KZ200-A2 AIR CLEANER/MUFFLER Diagram

#

Description

Price

1

GASKET,EXHAUST PIPE H

11009-1866

Unavailable

2

INSERT,EXHAUST PIPE

92027-278

Unavailable

3

HOLDER,EXHAUST PIPE

18069-1006

Unavailable

4

NUT,LOCK 6MM

92017-014

Unavailable

5

MUFFLER ASSY

18001-1197

Unavailable

5

MUFFLER ASSY

18001-1197

Unavailable

5-1

MUFFLER ASSY

18001-5006

Unavailable

6

WASHER PLAIN 10MM

410B1000

Unavailable

7

BOLT,HEX HEAD,10X14

113G1014

Unavailable

8

BRACKET,MUFFLER

18024-037

Unavailable

9

WASHER SPRING 8MM

461F0800

Unavailable

10

BOLT,8X20

115G0820

Unavailable

11

DAMPER

92075-015

Unavailable

12

AIR CLEANER ASSY

11010-1024

Unavailable

12

AIR CLEANER ASSY

11010-1024

Unavailable

13

NUT,AIR CLEANER CAP

92016-062

Unavailable

14

CAP,AIR FILTER

11012-1281

Unavailable

15

ELEMENT,AIR CLNR

11013-059

Unavailable

16

SCREW PAN HEAD 6X10

220B0610

Unavailable

17

CLAMP,CARBURETOR HLDR

92037-178

Unavailable

18

SCREW-PAN-CROS,5X25

220B0525

Unavailable

19

PIPE,INLET

11015-065

Unavailable

20

TUBE,BREATHER

92059-138

Unavailable

21

CLAMP,TUBE

92037-213

Unavailable

22

BREATHER VALVE

92062-1002

Unavailable

23

BOLT (6X10)

110R0610

Unavailable
