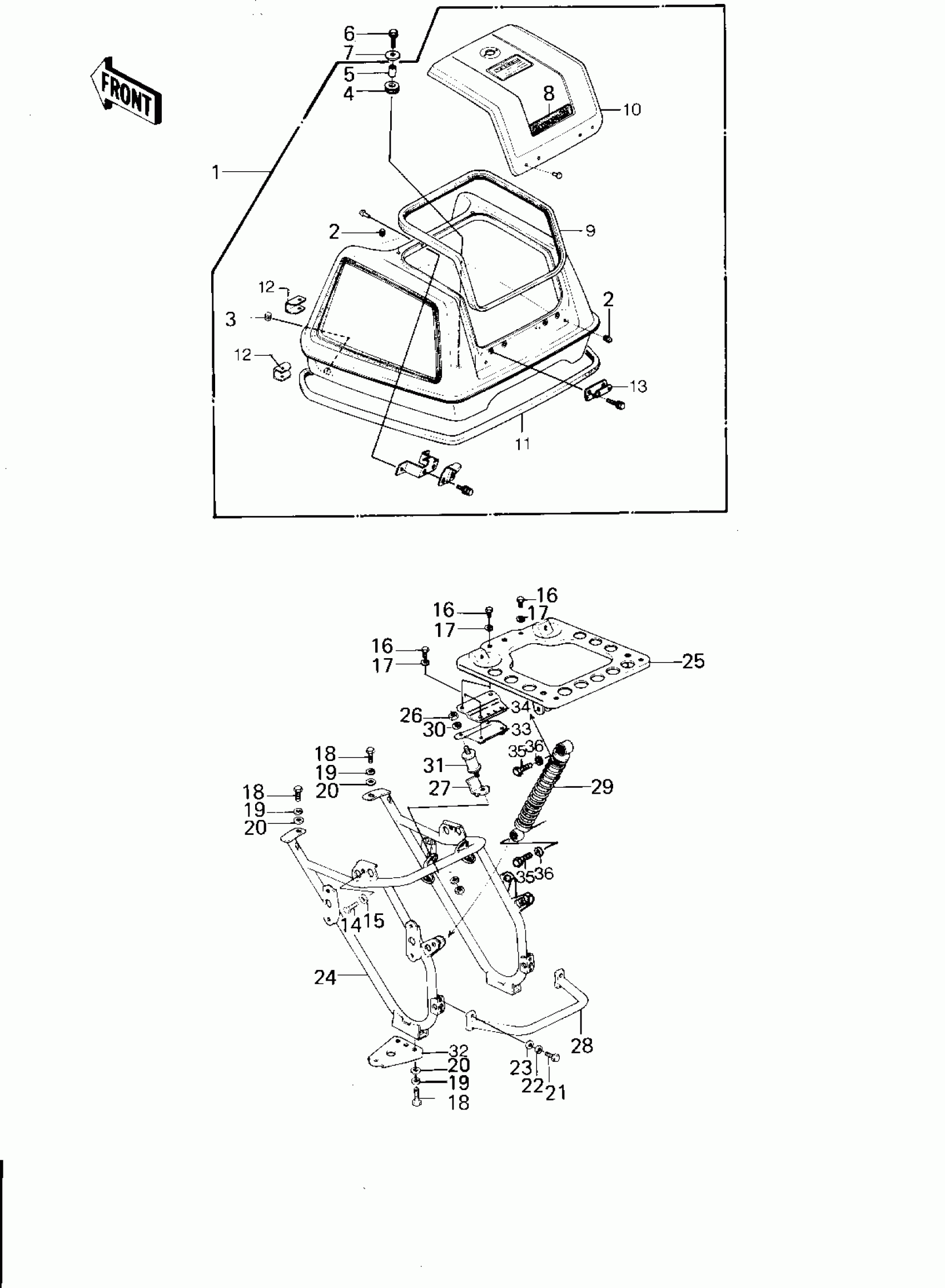

Kawasaki KZ1300-B2 TRUNK Diagram

#

Description
Price

1

BAG,CENTER,R.D.RED

56008-5006-D6

$715.50

2

PLUG,7X2

92074-028

$3.81

3

PLUG,11X3.2

92074-038

$7.14

4

DAMPER

92075-1185

$4.17

5

COLLAR,6.8X10X8.5

92027-129

$3.81

6

BOLT,6X22

92001-1325

$2.69

7

WASHER,7X24X1.6

92022-1160

$2.99

8

MARK,COWLING&TRUNK

56018-1131

$23.24

9

PACKING,SIDE BAG CVR

43049-1007

$16.32

10

COVER

14025-1145

Unavailable

11

TRIM, REAR BAG

53044-1013

$16.63

12

CAP,END

39031-1003

$0.90

13

HINGE

53009-1015

$3.54

14

BOLT,HEX HEAD,10X18

113G1018

Unavailable

15

WASHER PLAIN 10MM

410B1000

Unavailable

16

BOLT-UPSET,6X12

112G0612

Unavailable

17

WASHER SPRING 6MM

461F0600

Unavailable

18

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

19

WASHER SPRING 8MM

461F0800

Unavailable

20

WASHER PLAIN 8MM

410B0800

Unavailable

21

BOLT-UPSET 6X14

112B0614

Unavailable

22

WASHER SPRING 6MM

461F0600

Unavailable

23

WASHER PLAIN 6MM

411B0600

Unavailable

24

BRACKET ASSY,BAG FITT

23062-1006

$88.97

25

BRACKET,CENTER BAG FT

23062-1007

$56.98

26

NUT-HEX-SMALL,8MM

318B0800

$0.54

27

STOPPER,DAMPER

32085-1058

$3.63

28

STAY,CROSSMEMBER

35011-1032

$45.68

29

SHOCK ABSBR RR

45014-1034

$51.17

30

WASHER SPRING 8MM

461F0800

Unavailable

31

DAMPER,CENTER BAG

92075-1201

$20.76

32

BRACKET,BAG FITTING

11034-1720

Unavailable

33

BRACKET,DAMPER FITT

11034-1808

Unavailable

34

BRACKET,DAMPER FITT

11034-1809

Unavailable

35

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

36

WASHER SPRING 10MM

461F1000

Unavailable
