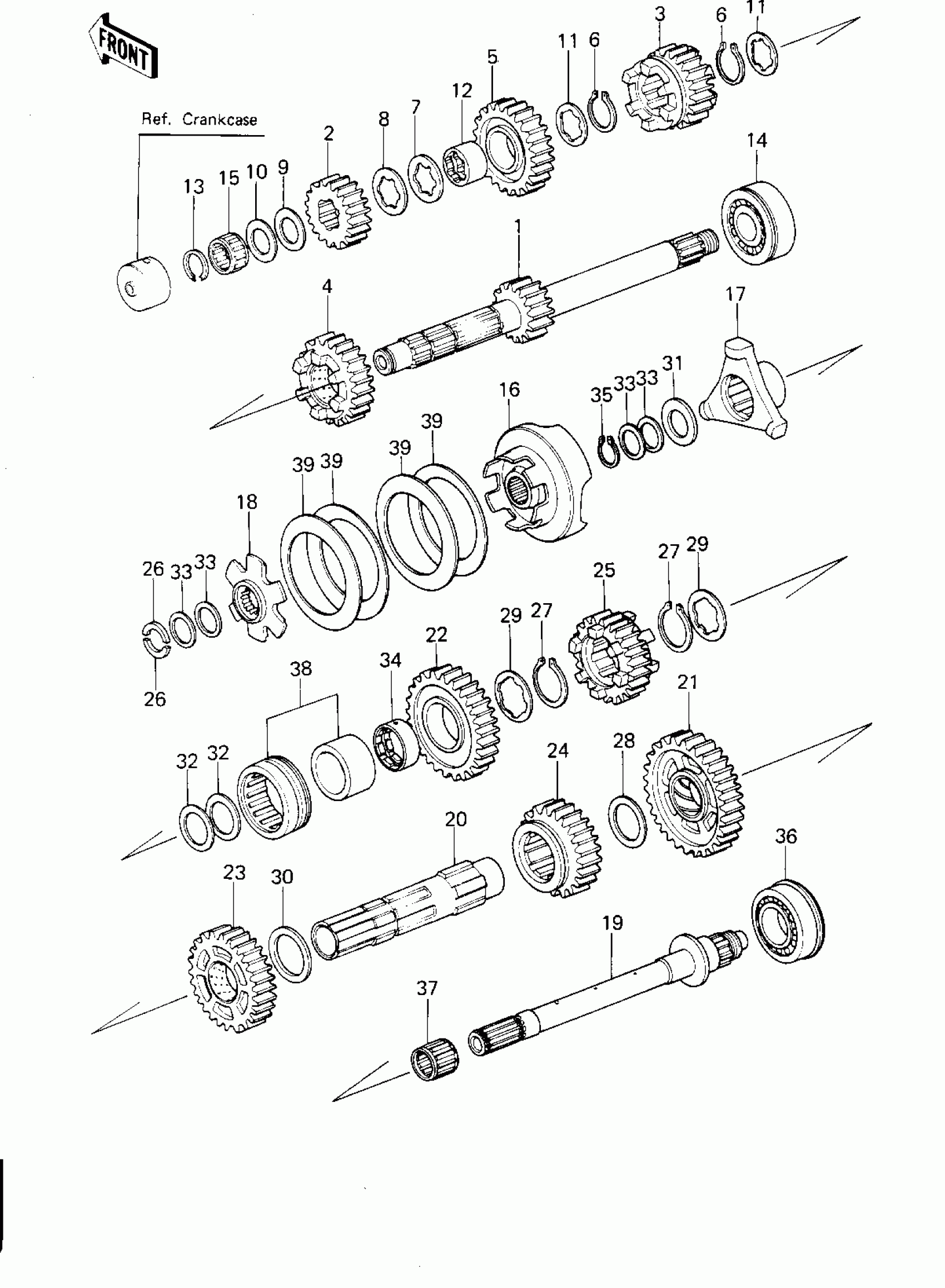

Kawasaki KZ1300-B2 TRANSMISSION Diagram
#
1
SHAFT,DRIVE
13127-1010
Unavailable
2
2ND GEAR,DRIVE SHAFT
13129-1096
Unavailable
3
3RD GEAR,DRIVE SHAFT
13129-1097
Unavailable
4
GEAR,INPUT 4TH,27T
13129-1098
Unavailable
5
GEAR,INPUT TOP,29T
13129-1592
Unavailable
6
CIRCLIP-TYPE-C,28MM
480J2800
$4.70
7
WASHER,TOOTHED,30X38X3
92022-1098
$9.38
8
WASHER,CLAW,29X38X1
92022-1099
$5.88
9
SPACER,22X35.5X1.0
92026-1020
$5.23
10
WASHER,22.3X35X1.6
92022-212
$9.91
11
WASHER,TOOTHED,26X35.5X1.5
92024-042
$11.07
12
BUSHING,INPUT TOP GEAR
92028-1302
$21.44
13
RING-SNAP,20X25.5X1.2
92033-025
$4.96
14
BEARING-BALL,5305NSH2
92045-1028
$132.72
15
BEARING-NEEDLE,FWF-223014
92046-031
$19.72
16
CAM,DAMPER
13048-1002
Unavailable
17
FOLLOWER,CAM
13048-1003
Unavailable
18
HOLDER,SPRING
13091-1030
Unavailable
19
SHAFT,DRIVEN,INNER
13128-1016
Unavailable
20
SHAFT,DRIVEN,OUTER
13128-1017
Unavailable
21
LOW GEAR,DRIVEN SHAFT
13129-1100
Unavailable
22
2ND GEAR,DRIVEN SHAFT
13129-1101
Unavailable
23
3RD GEAR,DRIVEN SHAFT
13129-1102
Unavailable
24
4TH GEAR,DRIVEN SHAFT
13129-1103
Unavailable
25
TOP GEAR,DRIVEN SHAFT
13129-1104
Unavailable
26
RING-POSITION
14013-1001
Unavailable
27
CIRCLIP-TYPE-C,36MM
480J3600
$4.71
28
WASHER,34.3X44X1
92022-1100
$5.21
29
WASHER,TOOTHED,36.3X46X1
92022-1101
$5.88
30
WASHER,36.3X46X2
92022-1102
$6.10
31
WASHER,23.2X38X3
92022-1103
$9.38
32
SHIM,34.3X42X0.1
92025-1002
Unavailable
32
SHIM,34.3X42X0.3
92025-1003
Unavailable
33
SHIM,23.3X30.7X0.1
92025-1004
Unavailable
33
SHIM,23.3X30.7X0.3
92025-1005
Unavailable
34
BUSHING,OUTPUT 2ND GEAR
92028-1303
$28.29
35
RING-SNAP,22.8MM
92033-1021
$4.33
36
BEARING-BALL,#3206
92045-1018
$85.19
37
BEARING-NEEDLE,K23X28X24
92046-1015
$22.60
38
BEARING-NEEDLE,TR1-346226E02
92046-1119
Unavailable
39
SPRING,DAMPER
92081-1089
$21.15
