Description

Price

2

COVER,SWING ARM

14025-1087

Unavailable

2

BOLT,8X22

114G0822

$3.34

3

WASHER SPRING 8MM

461F0800

$0.40

4

SCREW-PAN-CROS

220B0420

$2.49

5

SCREW-PAN-CROS

220B0430

$0.77

6

STOPPER,SWING ARM

32085-1053

$52.00

7

ARM,SWING

33001-1026

$429.20

8

SHAFT,SWING ARM

33032-1016

Unavailable

9

BOOT,SWING ARM

49006-1020

Unavailable

10

NUT-HEX-FINE,14MM

315B1400

$2.03

11

CLAMP,SWING ARM BOOT

92037-1097

Unavailable

12

SEAL-OIL,26406

92049-1030

$9.73

13

BEARING-ROLLER,4T30203E1

92116-1001

$38.04

14

PIN,SPRING,3X14

555A0314

$3.71

15

SCREW,SET,14X22

92009-1087

$8.96

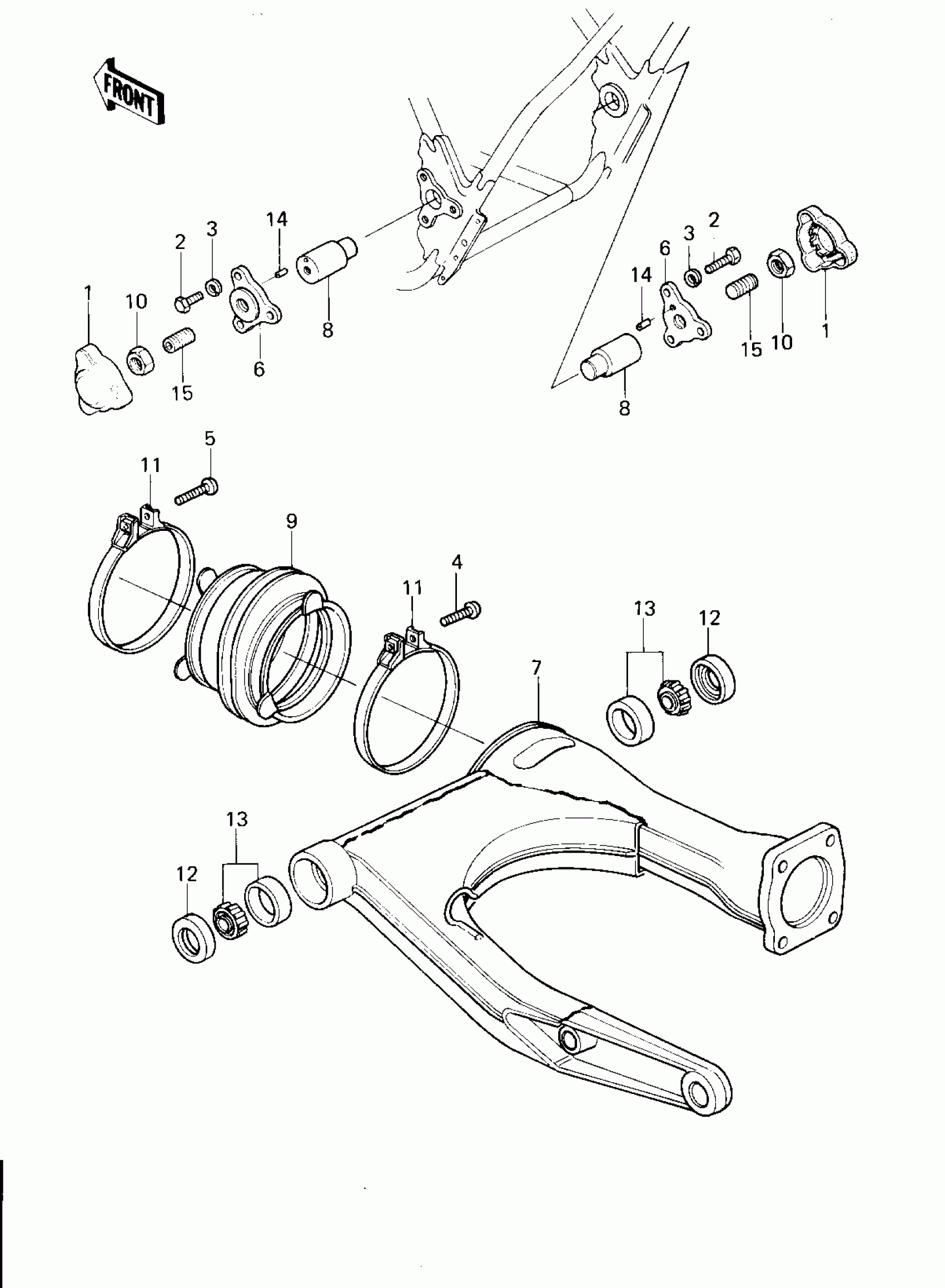

Kawasaki KZ1300-B2 SWING ARM Diagram

COVER,SWING ARM

BOLT,8X22

WASHER SPRING 8MM

SCREW-PAN-CROS

SCREW-PAN-CROS

STOPPER,SWING ARM

ARM,SWING

SHAFT,SWING ARM

BOOT,SWING ARM

NUT-HEX-FINE,14MM

CLAMP,SWING ARM BOOT

SEAL-OIL,26406

BEARING-ROLLER,4T30203E1

PIN,SPRING,3X14

SCREW,SET,14X22
