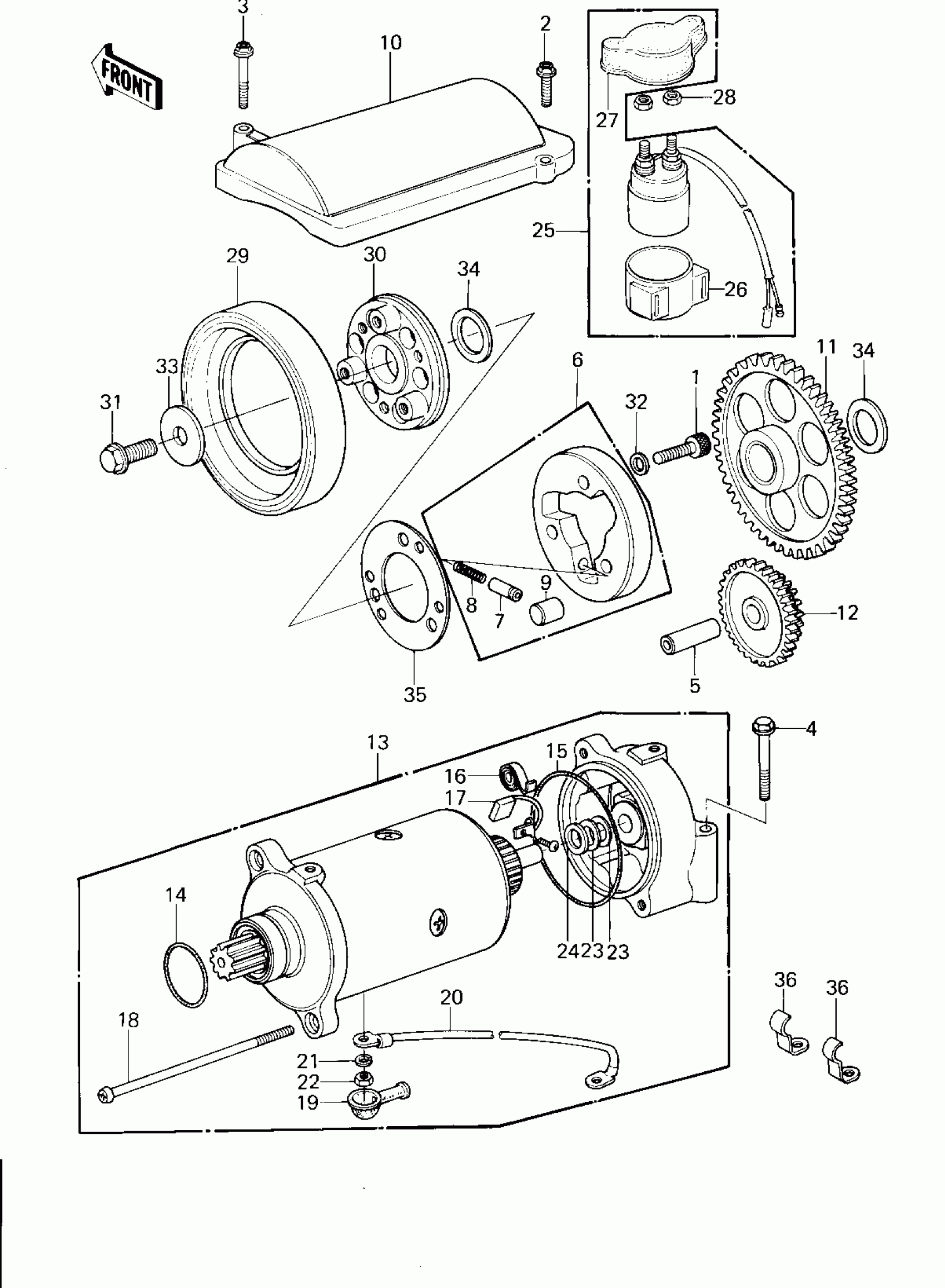

Kawasaki KZ1300-B2 STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

1

BOLT-SOCKET,8X30

120P0830

$2.62

2

BOLT-FLANGED,6X25

130B0625

$0.55

3

BOLT,FLANGED,6X40

130B0640

$0.74

4

BOLT-FLANGED,6X55

130G0655

$4.65

5

PIN-PISTON

13002-019

Unavailable

6

CLUTCH-ASSY-ONEWAY

13193-1012

Unavailable

7

PIN

92043-087

$12.76

8

SPRING

92081-110

$4.76

9

ROLLER,15X13

92122-004

$11.07

10

COVER,STARTER MOTOR

14025-1752

Unavailable

11

GEAR,STARTER CLUTCH

16085-1010

Unavailable

12

GEAR,STARTER REDUCTON

16085-1011

$81.30

13

MOTOR ASSY,STARTER

21163-1005

$632.12

14

RING-O,STARTER MOTOR,25MM

21027-004

$9.91

15

RING-O,STARTER MOTOR

21027-003

Unavailable

16

SPRING-BRUSH

21040-003

Unavailable

17

BRUSH,CARBON

21039-003

$40.76

18

SCREW,PAN HEAD,5X110

21015-005

$9.81

19

GROMMET,STARTER TERMINAL

21017-017

$9.43

20

WIRE,LEAD,STARTER MTR

26011-1054

$54.32

21

WASHER SPRING 6MM

461F0600

$0.69

22

NUT 6MM

312B0600

$0.72

23

WASHER,9.1X18X0.2

21025-011

Unavailable

24

WASHER,THRUST,T=1.6

21025-010

Unavailable

25

SWITCH,MAGNETIC

27010-1025

$127.17

26

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

27

COVER,MAGNETIC SWITCH

14025-1165

Unavailable

28

NUT,LOCK 6MM

92017-014

$7.51

29

DAMPER,TORSION

92075-1118

$162.26

30

HUB,TORSION DAMPER

49030-1002

$116.87

31

BOLT,DAMPER,L.H.THRED

92001-1212

Unavailable

32

WASHER,8.5X13.5X2

92022-1108

$4.31

33

WASHER-PLN,11X36X4

92022-307

Unavailable

34

SPACER,25.0X34X2.3

92026-1059

Unavailable

35

PLATE,CLUTCH STARTER

92026-112

Unavailable

36

CLAMP,LEAD WIRE

92037-1345

$4.75
