Description

Price

1

STAY,SEAT STAND

35011-1018

$10.20

2

SEAT-ASSY,FRONT

53001-1058

$377.36

3

BOLT-UPSET 6X14

112B0614

Unavailable

4

HOOK,SEAT

53056-002

$16.66

5

BRACKET, SEAT CATCH

53058-001

Unavailable

6

NUT 6MM

311B0600

$0.93

7

WASHER PLAIN 6MM

411B0600

$2.84

8

WASHER PLAIN 6MM

411B0600

$2.84

9

WASHER SPRING 6MM

461F0600

$0.69

10

HINGE,SEAT

53009-1011

Unavailable

11

DAMPER,SEAT

92075-216

Unavailable

12

DAMPER RUBBER,SEAT

92075-139

$11.46

13

PIN,SNAP

554A0600

$0.93

14

PIN,SEAT PIVOT

92043-1021

$5.38

15

PIN,SEAT STAND

92043-1045

$3.10

16

SPRING,SEAT STAND

92081-1100

$9.08

17

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

18

WASHER PLAIN 8MM

410B0800

$0.93

19

WASHER SPRING 8MM

461F0800

$0.40

20

SEAT-ASSY,REAR

53001-1059

$495.84

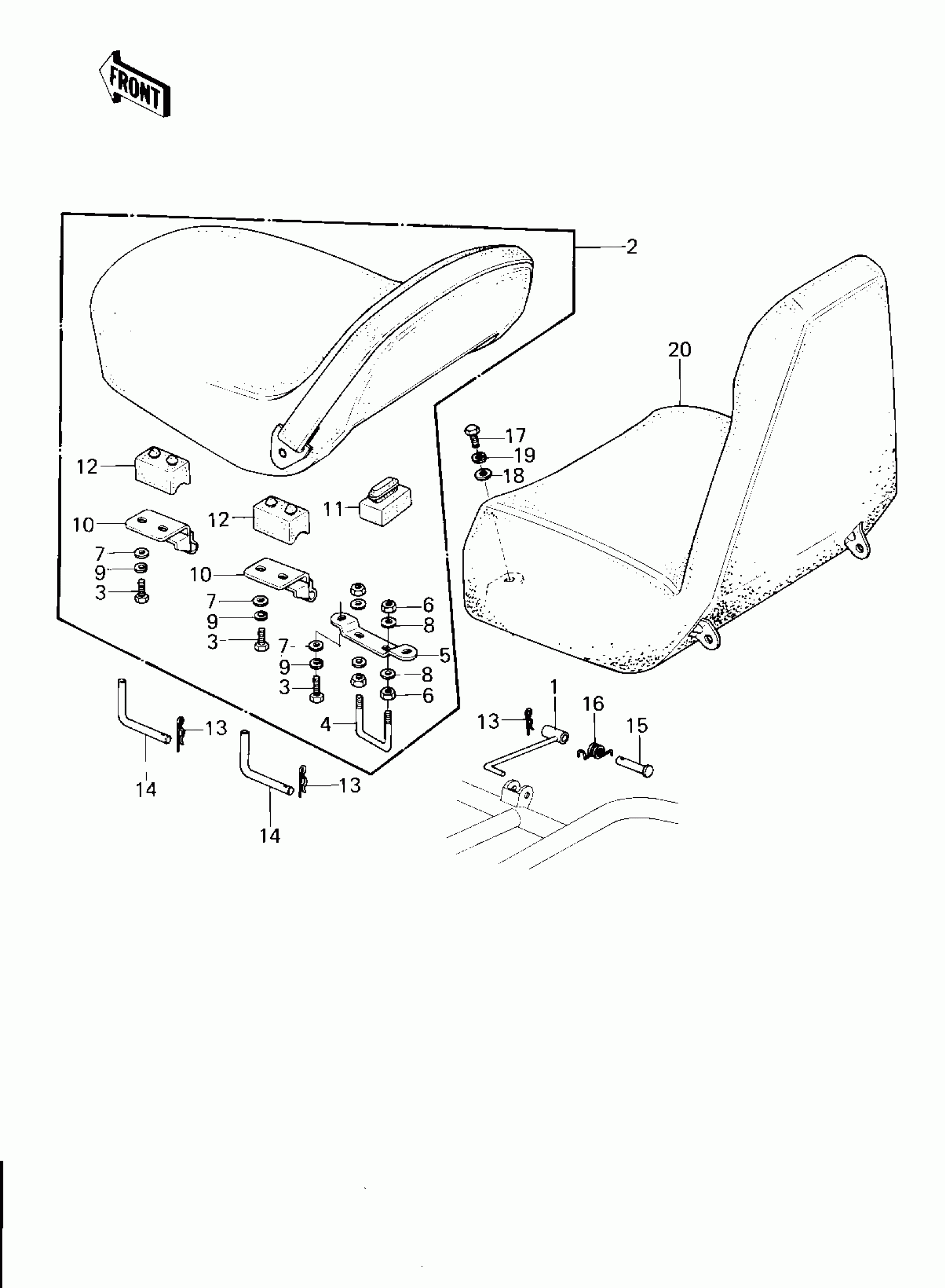

Kawasaki KZ1300-B2 SEATS Diagram

STAY,SEAT STAND

SEAT-ASSY,FRONT

BOLT-UPSET 6X14

HOOK,SEAT

BRACKET, SEAT CATCH

NUT 6MM

WASHER PLAIN 6MM

WASHER PLAIN 6MM

WASHER SPRING 6MM

HINGE,SEAT

DAMPER,SEAT

DAMPER RUBBER,SEAT

PIN,SNAP

PIN,SEAT PIVOT

PIN,SEAT STAND

SPRING,SEAT STAND

BOLT-SMALL-UPSET,8X16

WASHER PLAIN 8MM

WASHER SPRING 8MM

SEAT-ASSY,REAR
