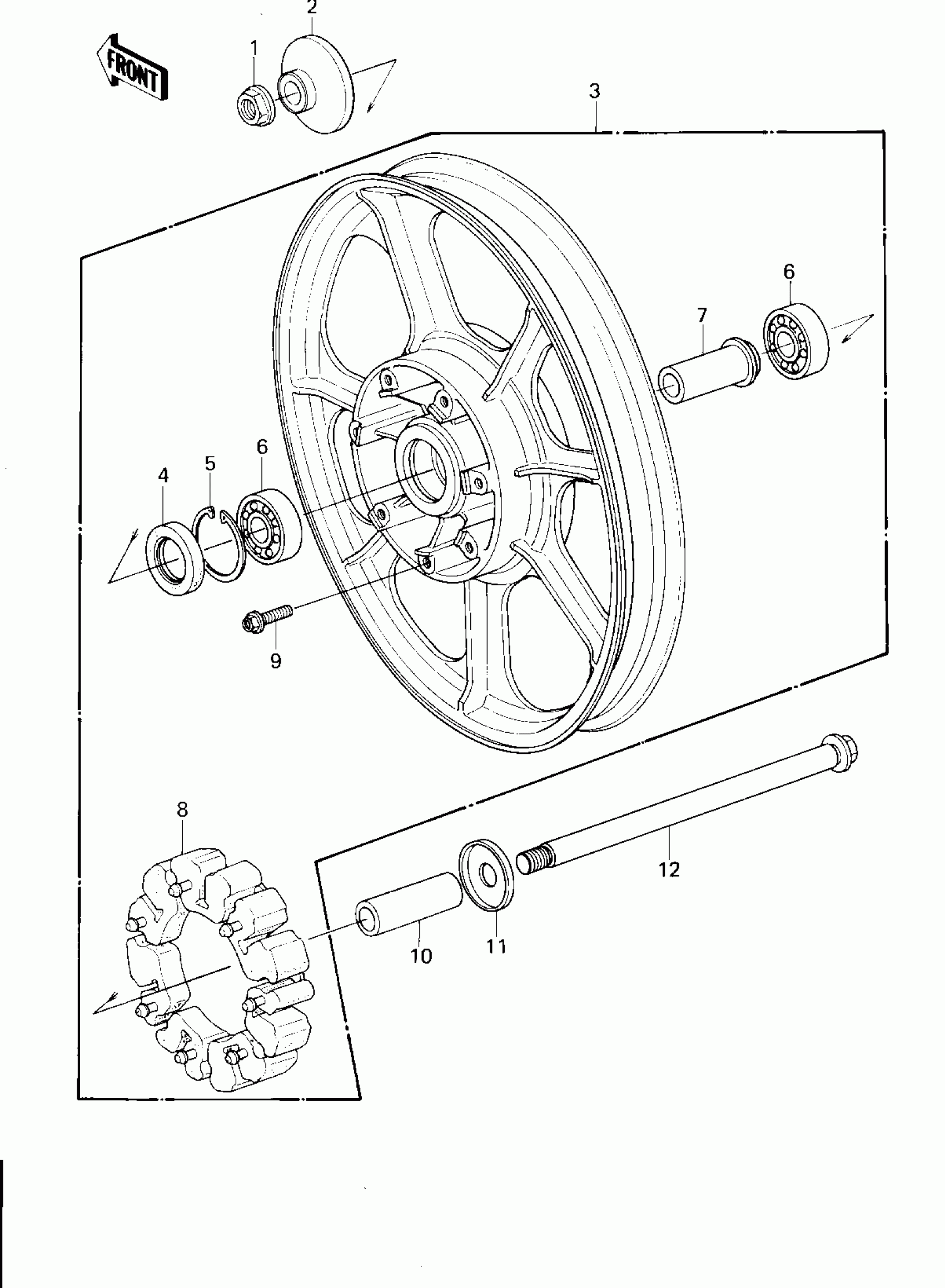

Kawasaki KZ1300-B2 REAR WHEEL/HUB Diagram

#

Description
Price

1

NUT,FLANGED,18MM

92015-2186

$17.39

2

COLLAR,FRONT AXLE

92027-1127

Unavailable

3

SOLID WHEEL ASSY,REAR

41073-1024

$507.68

4

OIL SEAL

92049-1021

Unavailable

5

RING-SNAP,52MM

92033-1043

$6.15

6

BALL BEARING,#6304Z

601B6304Z

Unavailable

7

COLLAR

92027-1124

Unavailable

8

SHOCK DAMPER,REAR HUB

92075-1098

Unavailable

9

BOLT,FLANGED,8X28

92001-1095

$5.71

10

COLLAR

92027-1126

$32.40

11

COVER-SEAL

49016-1019

$8.53

12

AXLE,REAR

41068-1017

$100.98
