Description

Price

1

CYLINDER ASSY,RR MAST

43015-1055

$528.14

2

PISTON ASSY

43020-1018

$104.97

3

ROD ASSY,BRAKE

43010-1001

$70.49

4

STOPPER,PISTON

43022-1002

$4.56

5

DUST COVER

49016-1026

Unavailable

6

STOPPER,DUST COVER

43022-1003

$4.56

7

DIAPHRAGM

43028-1007

Unavailable

8

CAP,OIL CUP

43026-1013

$47.74

9

SWITCH,REAR BRAKE

27010-1027

$114.49

10

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$4.59

11

HOSE-BRAKE,L=620

43059-1177

$61.54

12

GROMMET,HOSE CLAMP

43064-007

$4.18

13

BOLT,OIL,L=23

92002-1888

$4.15

14

WASHER,10.5X15X1.5

43067-001

$1.57

15

BOLT,FLANGED,8X28

92001-1095

$5.71

16

BUSHING

92092-1007

$13.56

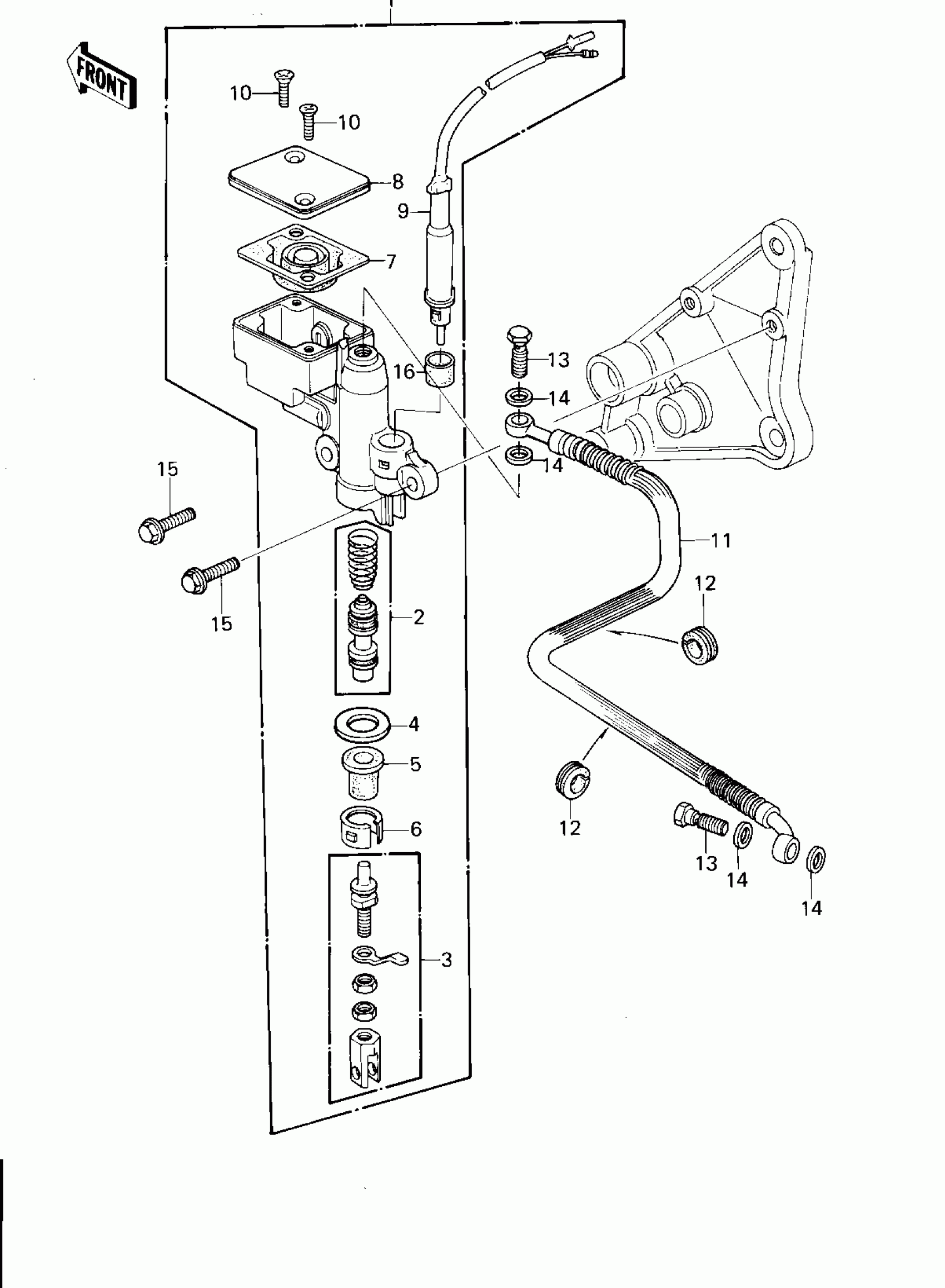

Kawasaki KZ1300-B2 REAR MASTER CYLINDER Diagram
