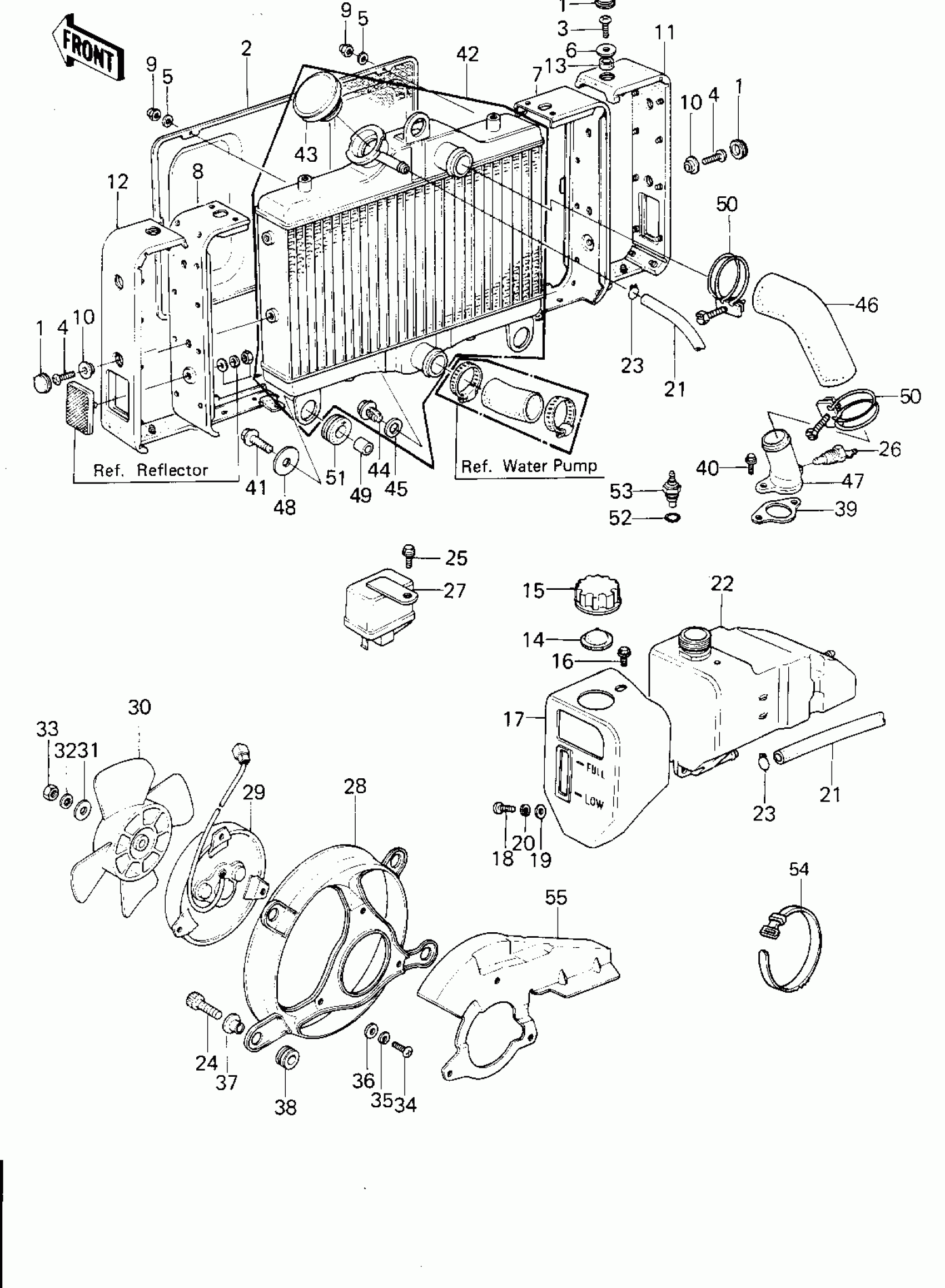

Kawasaki KZ1300-B2 RADIATOR/FAN/COOLANT TANK Diagram

#

Description
Price

1

CAP,RADIATOR GUARD

11012-1077

Unavailable

2

SCREEN,RADIATOR

14037-1001

$58.00

3

SCREW PAN HEAD 6X10

220B0610

Unavailable

4

SCREW-PAN-CROS,6X16

220B0616

Unavailable

5

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

6

WASHER

42046-008

$4.38

7

GUARD,RADIATOR,R.H

55020-1036

$127.17

8

GUARD,RADIATOR,L.H

55020-1037

$109.74

9

NUT-CAP,6MM,BLACK

322C0600

Unavailable

10

COLLAR,RADIATOR GUARD

92027-1189

$5.41

11

DAMPER,RADIATOR,R.H

92075-1210

$36.80

12

DAMPER,RADIATOR,L.H

92075-1211

$57.34

13

BUSHING,RBR,14X22X8.5

92092-1005

$3.49

14

GASKET,RESERVOIR TANK CAP

11009-1145

$1.49

15

CAP

11012-1084

$1.72

16

BOLT-FLANGED,6X10

130B0610

Unavailable

17

COVER,RESERVE TANK

14025-1152

Unavailable

18

SCREW-PAN-CROS,6X16

220B0616

Unavailable

19

WASHER PLAIN 6MM

411B0600

Unavailable

20

WASHER SPRING 6MM

461F0600

Unavailable

21

HOSE-COOLING,7X12X1200

39062-1003

$29.71

22

RESERVOIR,TANK

43078-1007

Unavailable

23

CLAMP-HOSE

92037-1104

$1.49

24

BOLT-SOCKET,6X20

120P0620

Unavailable

25

BELT,FLANGED,6X12

131B0612

Unavailable

26

SWITCH,FAN

27010-1036

$102.37

27

RELAY,FAN

27034-1002

$91.15

28

SHROUD,FAN

14073-1014

$156.22

29

MOTOR,FAN

21174-1001

$625.17

30

FAN,COOLING

59041-1001

$137.14

31

WASHER,FAN

92022-1089

$3.53

32

WASHER LOCK 5MM

463H0500

$1.75

33

NUT-HEX

311B0500

$0.42

34

SCREW PAN HEAD 5X10

220B0510

Unavailable

35

WASHER SPRING 5MM

461F0500

Unavailable

36

WASHER-PLAIN,5MM

411B0500

Unavailable

37

COLLAR,L=9

92027-1188

$4.15

38

DAMPER,FAN

92075-1167

$5.59

39

GASKET,HOSE FITTING

11009-1100

Unavailable

40

BOLT-FLANGED,6X25

130B0625

Unavailable

41

BOLT-FLANGED,8X25

130B0825

Unavailable

42

RADIATOR-ASSY

39061-1053

$1,144.84

43

CAP-ASSY-PRESSURE,RADIATOR

49085-1051

$50.59

44

BOLT,RADIATOR DRAIN

92002-1682

$20.51

45

GASKET,DRAIN BOLT

11009-1152

$7.55

46

HOSE,COOLING,RADIATOR

39062-1002

$35.48

47

FITTING,UPPER HOSE

92005-1012

Unavailable

48

WASHER,8.5X35X2.3

92022-298

Unavailable

49

COLLAR,12.7X15.9X12.5

92027-1141

Unavailable

50

CLAMP,HOSE

92037-1177

$9.53

51

DAMPER,RADIATOR

92075-1127

Unavailable

52

RING-O,13.5MM

92055-073

$10.04

53

SENDER,WATER TEMPERATURE

92066-1028

Unavailable

54

BAND,L=186

92072-056

$5.00

55

COVER,COOLING FAN

14025-1214

Unavailable
