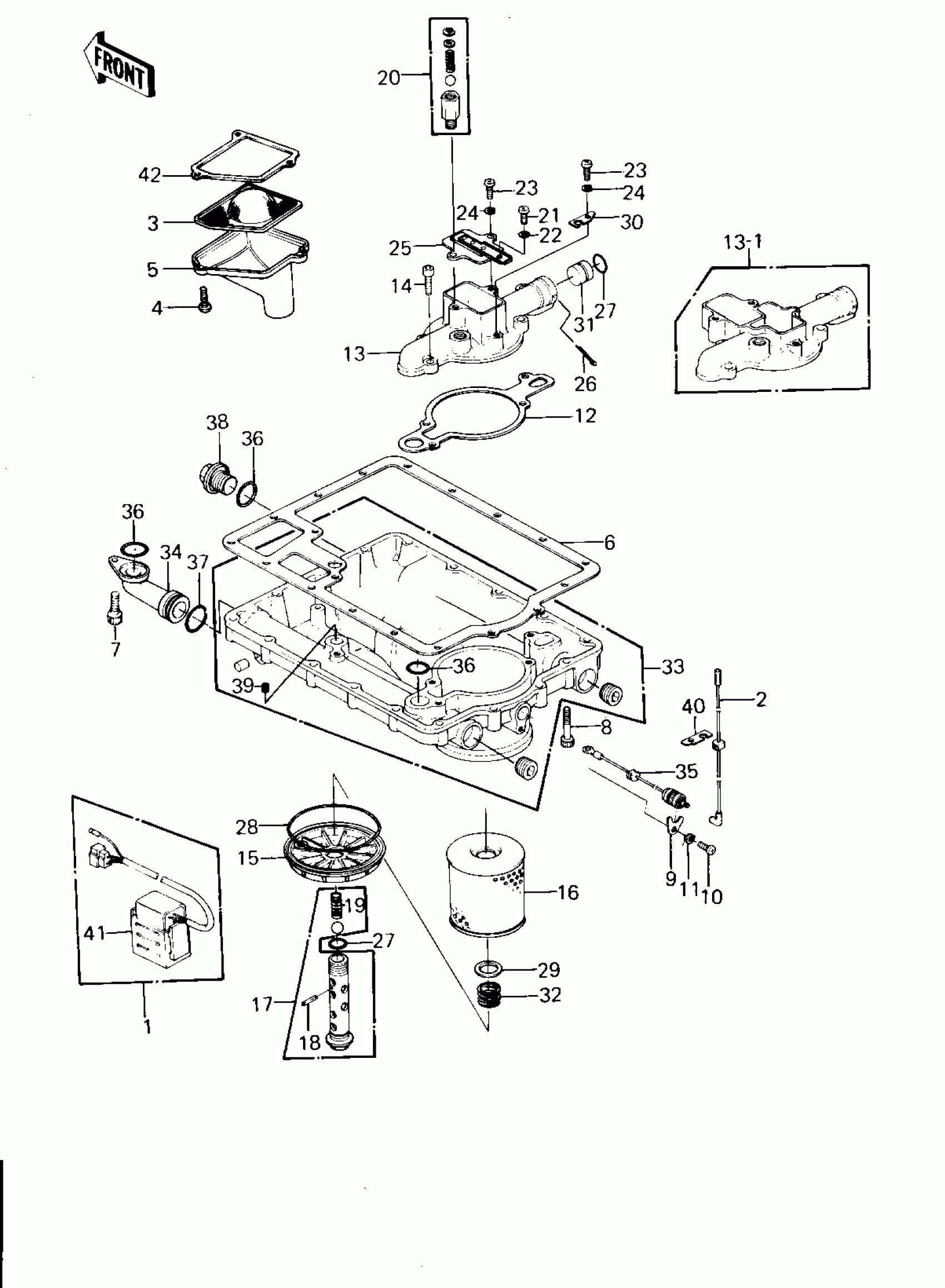

Kawasaki KZ1300-B2 OIL PAN/OIL FILTER (E/NO. 010638~) Diagram

#

Description
Price

1

WARNER,OIL LEVEL

25025-1003

$369.14

2

WIRE,LEAD

26011-1085

$6.63

3

FILTER,OIL

14043-1008

Unavailable

4

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.36

5

CASE,OIL FILTER

32099-1017

$39.63

6

GASKET,OIL PAN

11009-1093

Unavailable

7

BOLT-SOCKET,6X20

120P0620

Unavailable

8

BOLT-SOCKET,6X35

120P0635

Unavailable

9

HOLDER,CONNECTOR

13091-1080

Unavailable

10

SCREW-PAN-CROS,6X14

220B0614

$1.08

11

WASHER SPRING 6MM

461F0600

Unavailable

12

GASKET,OIL FILTER CAP

11009-1198

Unavailable

13

CAP ASSY

14075-5011

$150.97

13-1

CAP,OIL FILTER

11012-1148

Unavailable

14

BOLT-SOCKET,6X35

120P0635

Unavailable

15

COVER,OIL FILTER

14025-1170

Unavailable

16

ELEMENT-OIL FILTER

16099-002

$16.20

17

VALVE,OIL FILTER

16126-1006

$47.46

18

PIN,SPRING,2X20

92043-111

$6.27

19

SPRING

92081-133

Unavailable

20

VALVE-ASSY-RELIEF

16130-1001

$41.16

21

SCREW PAN HEAD 4X6

220B0406

$1.21

22

WASHER SPRING 4MM

461F0400

Unavailable

23

SCREW-PAN-CROS,6X14

220B0614

$1.08

24

WASHER SPRING 6MM

461F0600

Unavailable

25

SWITCH,OIL LEVEL

27010-1038

Unavailable

26

PIN-COTTER,2.0X40

550D2040

$1.36

27

O RING,16MM

670B2016

$1.49

28

O RING,95MM

671B2595

$7.29

29

WASHER,20.5X30X1

92022-1012

$4.34

30

CLAMP,LEAD WIRE

92037-1211

$3.15

31

PLUG,OIL GALLARY,16X3.2

92066-1023

$5.25

32

SPRING,OIL FILTER

92081-1018

$4.65

33

PAN-OIL

49034-5005

$327.54

34

ELBOW,OIL PASSAGE

52014-1002

$44.76

35

CAP ASSY

14075-5011

$150.97

35

CONNECTOR-CORD,OIL SWITCH

59221-1002

$92.81

36

O RING,22MM

670B2022

$4.69

37

O RING,25MM

671B2525

$5.00

38

PLUG,OIL DRAIN

92001-1183

$54.58

39

NOZZLE,BLACK

92062-011

$7.95

40

CLAMP,LEAD WIRE

92037-1211

$3.15

41

BRACKET,RUBBER,WARNER

21064-003

$24.56

42

GASKET,OIL FILTER

11009-1193

Unavailable
