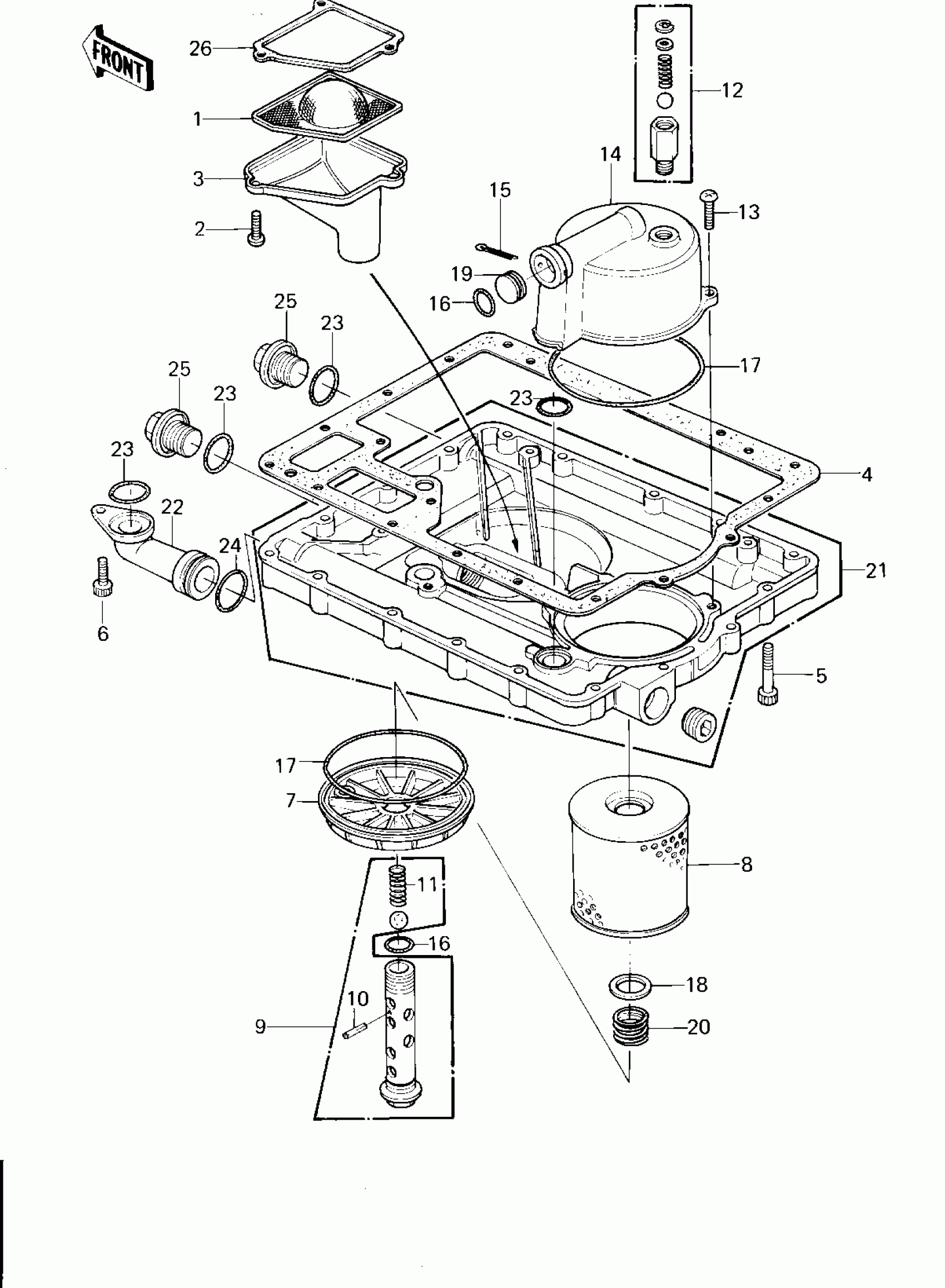

Kawasaki KZ1300-B2 OIL PAN/OIL FILTER (~E/NO. 010637) Diagram

#

Description
Price

1

FILTER,OIL

14043-1007

$21.71

2

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.36

3

CASE,OIL FILTER

32099-1006

$18.42

4

GASKET,OIL PAN

11009-1093

Unavailable

5

BOLT-SOCKET,6X35

120P0635

Unavailable

6

BOLT-SOCKET,6X20

120P0620

Unavailable

7

COVER,OIL FILTER

14025-1170

Unavailable

8

ELEMENT-OIL FILTER

16099-002

$16.20

9

VALVE,OIL FILTER

16126-1006

$47.46

10

PIN,SPRING,2X20

92043-111

$6.27

11

SPRING

92081-133

Unavailable

12

VALVE-ASSY-RELIEF

16130-1001

$41.16

13

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.36

14

CASE,OIL FILTER

32099-1008

$50.41

15

PIN-COTTER,2.0X40

550D2040

$1.36

16

O RING,16MM

670B2016

$1.49

17

O RING,95MM

671B2595

$7.29

18

WASHER,20.5X30X1

92022-1012

$4.34

19

PLUG,OIL GALLARY,16X3.2

92066-1023

$5.25

20

SPRING,OIL FILTER

92081-1018

$4.65

21

PAN-OIL

49034-5008

$170.13

22

ELBOW,OIL PASSAGE

52014-1002

$44.76

23

O RING,22MM

670B2022

$4.69

24

O RING,25MM

671B2525

$5.00

25

PLUG,OIL DRAIN

92001-1183

$54.58

26

GASKET,OIL FILTER

11009-1193

Unavailable
